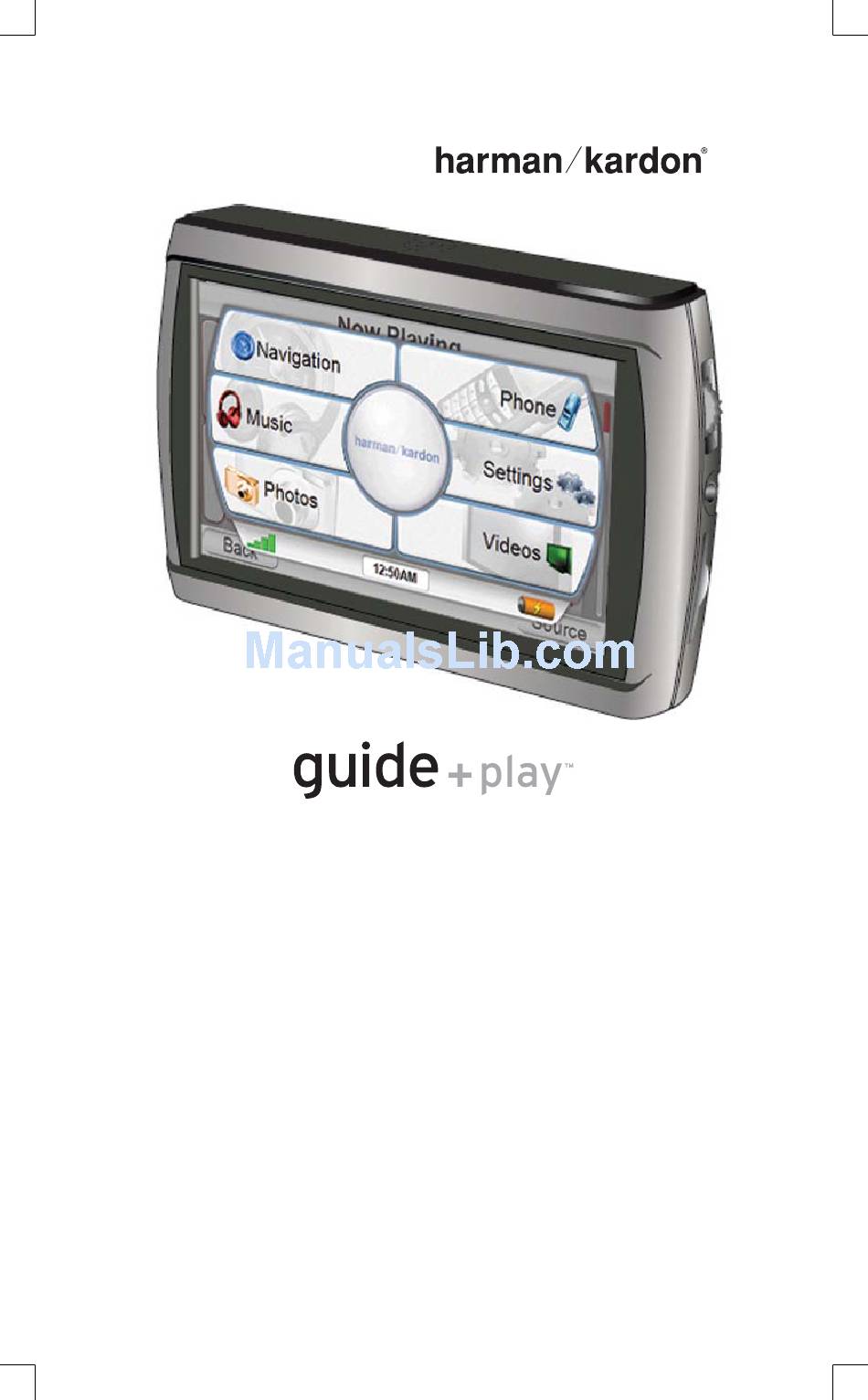

GPS-810NA Portable Touchscreen Navigation System and A/V Media Player Quick-Start Guide...
Page 2
Contents Contents English Instructions ..........3 The Harman Kardon® GPS-810 uses a lithium-polymer battery. Under normal operating conditions, the battery will provide superior service with a lifespan that is superior to those of other battery types. Please observe the following guidelines to protect the performance of your GPS-810 and its battery: Do not operate the unit in ambient temperatures outside the following range: –10°...
What’s in the Box What’s in the Box GPS-810NA Car Charger Wall Charger USB Cable Quick-Start Guide Carrying Case Fold-Flat Mounting Bracket Plastic Adhesive Disc for Dash-Mount Wireless Remote Control w/Battery Mounting Disc for Wireless Remote Alcohol Cleaning Pads for Mounting Surfaces...
The driver must always be aware of the actual road conditions and surroundings, and decide whether or not to follow the information provided by this device. Obey all traffi c laws and observe safe driving practices. The manufacturer does not accept responsibility for any inaccurate or incomplete information provided by this device. GPS-810NA...
Page 5
Plan a Trip Plan a Trip Choose “Plan a Trip” Choose “Address” Input the destination Choose “Go” Follow the on-screen prompts GPS-810NA...
Connecting a Bluetooth Phone* Connecting a Bluetooth Phone* * A Bluetooth® enabled phone is required operation with GPS-810NA calling features. Please read the instructions with your particular phone to determine how to place it into “pairing” or “discovery” mode to set up the connection with GPS-810NA.
Placing and Receiving Calls Placing and Receiving Calls You can place and receive calls directly from the screen of GPS-810NA once a phone is paired and an external hands-free microphone has been connected (microphone not included). There are several ways in which to place calls...
Drag and Drop Files Unplug From the Computer, and You’re Finished! GPS-810NA is compatible with the following A/V formats: Audio • MP3 VBR/CBR (8 - 448 kbps), 8 - 48 kHz, ID3 tags (v1 and v2.1 to v2.3) with album art supported.
File Name Scroll Up/Down Choosing “Video” from the source menu brings up the “Video” screen. You can view all the video fi les stored on the SD card and select one to view by pressing that fi le name. GPS-810NA...
Check your state and local laws before mounting. Mounting the Unit Mounting the Unit Select Mounting Location Windshield-Mount Dash-Mount Lock Unlock Install Mounting Base Clean dash with supplied alcohol pad. Display Angle Adjustment Install GPS-810NA in Mounting Base GPS-810NA...
Page 11
Press and hold for 2 seconds from outer ring to adjust Brightness from outer ring Press once for Center menu bar item Press and hold for 2 Press to select the seconds to suspend highlighted menu item power or turn on GPS-810NA...
Page 12
Note: The headphone output may also be connected to the line/aux input of an audio device when the GPS-810NA is away from the car, but when docked in the mount it’s recommended to use the connection in the mount for easy removal and redocking of the unit.
Page 13
Activate Traffi c Service Activate Traffi c Service Choose “Traffi c” Visit activation website. Follow on- screen instuctions. Enter GPS-810NA ID number into the website Press “Activate” on GPS-810NA Enter Activation Code from Web Page, then press “Done” Finished! GPS-810NA...
Page 14
Text to Speech Feature Text to Speech Feature GPS-810NA has a feature called “Text to Speech” in which navigation prompts that appear on the screen as text can be confi gured to be spoken in one of several voices (male or female). You can choose to have only directions announced or both directions and street names.
Remote control knob is unresponsive Try pressing the top, center and right buttons simultaneously for 2 seconds, then turn the outer ring until the highlight bar moves. If the control knob is still unresponsive, try a fresh CR2032 type battery. GPS-810NA...
