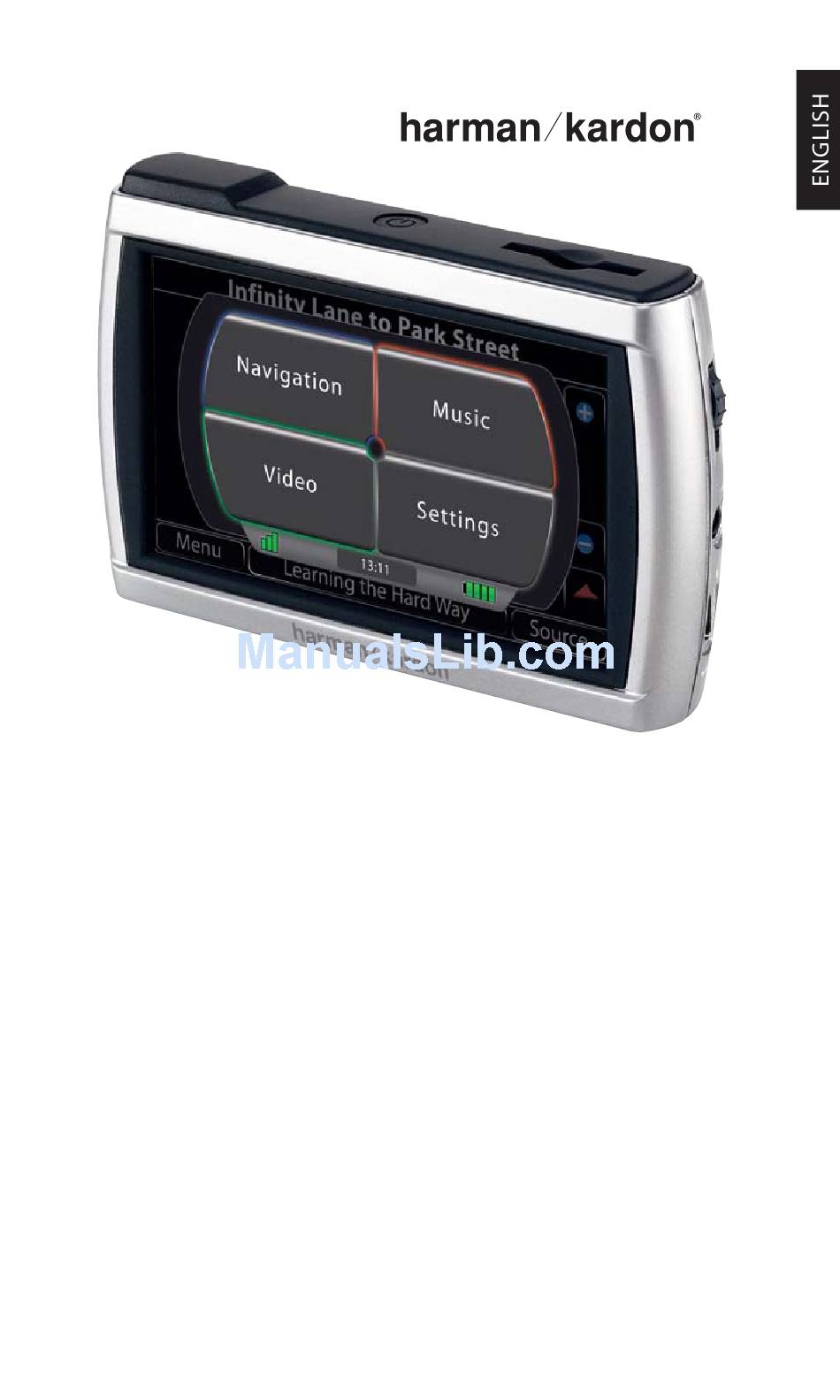

Page 1: User Manual
™ GPS-410/510 Portable Touchscreen Navigation System and A/V Media Player User Manual... -
Page 2: Table Of Contents
To protect the performance of your GPS-410/510 and its battery, please observe the following guidelines: • Do not operate the GPS-410/510 in ambient temperatures outside of the following range: 14° F (–10° C) to 131° F (55° C). • Do not store the GPS-410/510 even for short periods in ambient temperatures outside of the following range: –4°... -
Page 3: Introduction
480 x 272 pixel screen. (video 510 only) We know you’re eager to start using your GPS-410/510, so we’ve included a Quick-Start Guide that will help you use its basic features right away. -
Page 4: Controls And Features
Controls and Features Antenna Lock Switch TMC Antenna Jack GPS-410/510 ™ RONT ON/OFF Button OTTOM IGHT Touchscreen External GPS Antenna Speaker Mounting Slot SD Card Slot Reset Button Mounting Slot Volume/ Brightness Control Headphone Jack Mini USB Connector/ Charger Port... -
Page 5: Left Side
SD C Accepts SD or SDHC memory cards up to 32GB. The SD card is required to store audio and video media to be played on your GPS-410/510. Bottom: Lets you reset the unit if it becomes unresponsive or won’t... -
Page 6: Before You Begin
Before You Begin Before you begin using your GPS-410/510, you will need to charge its battery for a minimum of 6 hours. 1. Plug the included wall charger into a wall outlet. 2. Use the included USB cable to connect the GPS-410/510’s Mini USB Connector/Charger port to the wall charger. -
Page 7: Initial Setup
Initial Setup When you turn your GPS-410/510 on for the first time, the Setup Wizard will appear. The Wizard will guide you through the GPS-410/510’s initial setup steps: 1. Touch the button for the screen language you want to Nederlands, English, Français, Deutsch, Italiano,... -
Page 8: Navigation
The GPS-410/510 also lets you store your home address so you can quickly enter it as your destination from wherever you happen to be. - Page 9 The internal map will find and show the correct names. (POI) ( HOOSING A LACE The GPS-410/510 has a built-in point-of-interest database with millions of entries in many different categories. NTER GPS-410/510’ FROM THE...
- Page 10 13.) ELECTING A ENTER NTERSECTION OR OSTAL The GPS-410/510 can guide you to a city center, to the intersection of two streets or to a specific postal code. AVIGATING TO A 1. Touch the C button ENTER...
- Page 11 3. Touch the G button to begin navigation. The map screen will appear. Once you start driving, the GPS-410/510 will guide you to the center of the city you selected. (See Navigating to Your Destination, on page 13.) AVIGATING TO AN NTERSECTION 1.
- Page 12 GPS-410/510 will guide you to your destination. (See Navigating to Your Destination, on page 13.) NOTE: If you have not yet set your home address, the GPS-410/510 will have you do so. AVIGATING TO ECENTLY The GPS-410/510 stores a list of your recently visited locations in a H page and also lets you save locations to a special list.
-
Page 13: Navigating To Your Destination
NOTE: If you are playing music on the GPS-410/510’s Music Player (see page 22), the M screen will also display the title of the currently playing song. - Page 14 (See illustrations, below, left.) Moving the Map Position Zoom In (Closest View) Zoom Out (Farthest View) GPS-410/510 ™ AR BUTTON Map Screen Option Buttons 2D Map View...
- Page 15 AUTO-ZOOM The GPS-410/510 offers different auto-zoom modes for improved route visi- bility. Junction zoom: When approaching a turn the map will automatically zoom in and switch to 2D mode in order to give a better view on the upcoming maneuver. Thereafter it will return to the default zoom settings.
-
Page 16: Navigation Options
This will display a new screen where you decide if you want to avoid just this single turn, the entire road or a specific road segment. This screen lets the GPS-410/510 recalculate a new route that avoids a partic- ular segment of the selected road. -
Page 17: Changing Navigation Settings
Your Current Global Position (in Latitude and Longitude) NOTE: Your GPS-410/510 will lose contact with the GPS satellites whenever you turn its power off. After turning the power back on, you will need to go outside to receive the GPS signal again before the navigation functions will operate. -
Page 18: Traffic Message Channel "Tmc
Traffic Message Channel “TMC” The GPS-410/510 is equipped with a built-in FM receiver to process TMC (Traffic Message Channel) messages. The TMC is a free system to send out free traffic information via RDS (Radio Data System). TMC might or might not be available in your country. -
Page 19: The Source Screen
The GPS-410/510 supports regular SD and SDHC cards up to 32GB (for- matted with FAT32). Compatible A/V File Types In order to play on your GPS-410/510, audio and video files must be in one of the following formats: ID3 T... - Page 20 RANSFER ILES TO THE 1. Insert a regular SD card into the GPS-410/510’s SD card slot (see page 4). 2. Make sure the USB cable is disconnected from the GPS-410/510. 3. Set the GPS-410/510’s USB mode to MTP (see page 19).
- Page 21 GPS-410/510 but will take up space on your SD card. RANSFER ILES TO THE 1. Insert an SD card into the GPS-410/510’s SD card slot (see page 4). 2. Make sure the USB cable is disconnected from the GPS-410/510. 3. Set the GPS-410/510’s USB mode to USB M 4.
-
Page 22: Listening To Music
SD card. Touch the button for the artist you want, then touch the button for the song you want to hear. The GPS-410/510 will play the song, then play through the rest of the songs by that artist. -
Page 23: Watching Videos
HUFFLE Touching the S HUFFLE random order. LAYING CREEN The GPS-410/510 will display the N screen (right) LAYING while songs are playing. This screen shows the elapsed time of the song, and provides buttons for skipping to the next or previous song, and for pausing the song. -
Page 24: Changing Settings
Language The L button lets you set the GPS-410/510’s screen and voice-guid- ANGUAGE ance languages to ne out of 17 available languages. Volume Mixer The Volume Mixer lets you adjust the relative volume levels of the music and the navigation voice guidance. -
Page 25: Installation And Use In A Vehicle
Select a Mounting Location Find a suitable mounting location for the Fold-Flat Mounting Bracket: NOTE: Do not mount the bracket in such a way that the GPS-410/510 will interfere with your driving or your view of the road. On the... - Page 26 5. Push the mounting bracket lever towards the base to lock the bracket to the dashboard. 5. Push Lever Towards Base to Lock 3. Attach Mounting Base to Dashboard GPS-410/510 ™ 2. Push Lever Towards Base to Lock 4. Attach Bracket to Mounting Base 2.
- Page 27 12V power outlet and into the GPS-410/510’s mini USB connector. This will charge your GPS-410/510’s battery while you drive. 2. Use the GPS-410/510’s built-in speaker or connect its headphone jack to your vehicle’s audio system (connecting cable not supplied). Connect...
-
Page 28: Troubleshooting
Troubleshooting Problem GPS-410/510 does not turn on at all GPS-410/510 does not have a good GPS signal GPS-410/510 will not play music or videos Unable to load media onto SD card Screen is too bright or too dim Volume is too low for navigation... -
Page 29: Specifications
Dimensions (HxWxD): (75mm x 118mm x 20mm) Flash Memory : 2 GB Harman Kardon is a trademark of Harman International Industries, Incorporated, registered in the United States and/or other countries. Guide + Play and Atlas are trademarks of Harman International Industries, Incorporated. -
Page 30: Declaration Of Conformity
We, Harman Consumer Group, Inc. 8500 Balboa Boulevard, Northridge, CA 91329, USA declare in own responsibility that the product described in this manual is in compliance with technical standards: EN 55022 : 2006 , Class B EN 55024:1998+A1:2001+A2:2003 EN 61000-4-2 : 1995+A1 : 1998+A2 :2000 EN 61000-4-3 : 2002+A1 : 2002 EN 61000-4-4 : 2004 EN 61000-4-6 : 1996+A1 : 2000...
