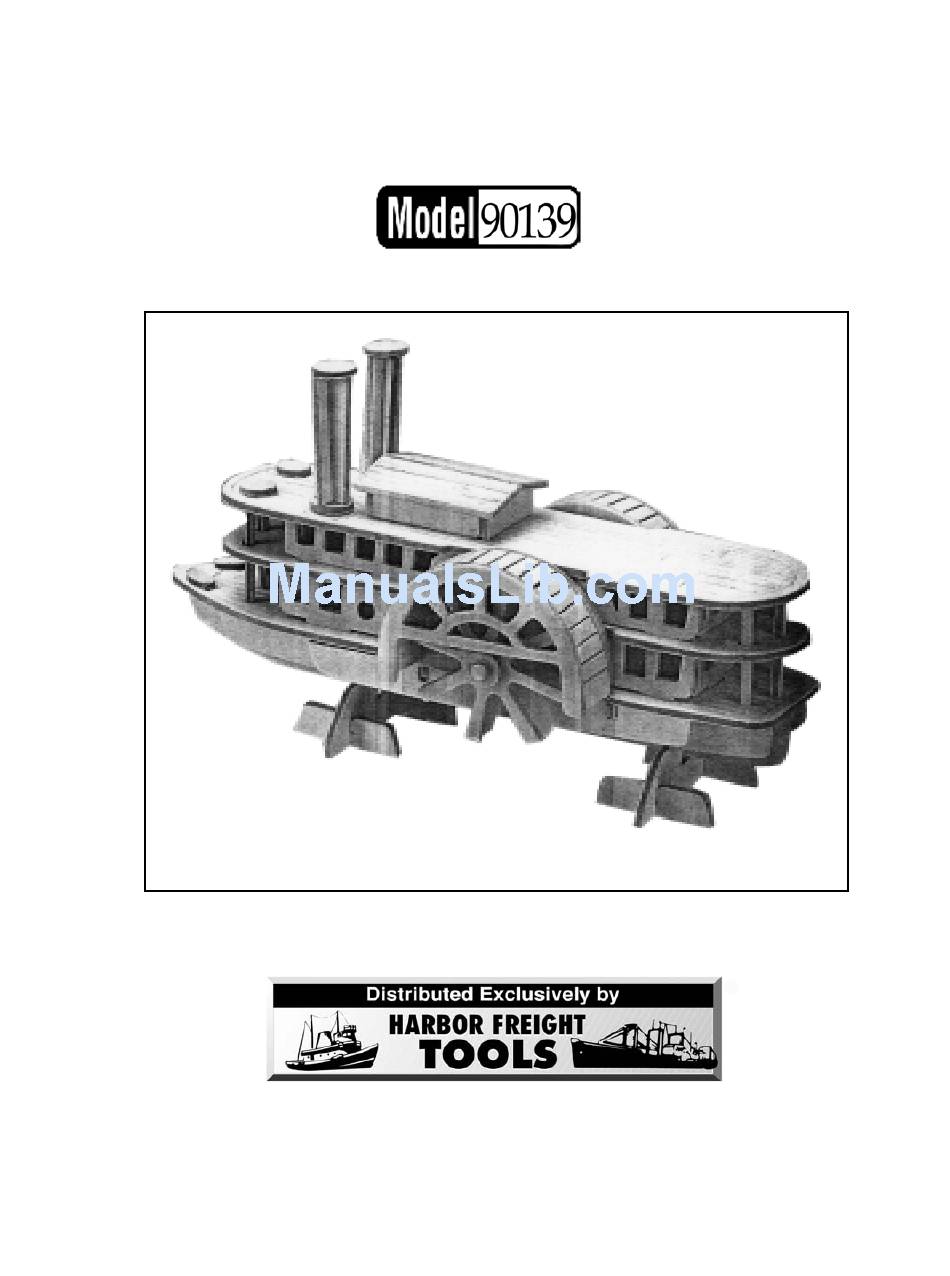

RIVER BOAT
WOODEN MODEL
ASSEMBLY INSTRUCTIONS
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
®
Copyright © 2003 by Harbor Freight Tools
. All rights reserved. No portion of this manual
or any artwork contained herein may be reproduced in any shape or form without the
express written consent of Harbor Freight Tools.
For technical questions please call 1-800-444-3353
Advertisement
Table of Contents
Related Manuals for Harbor Freight Tools River Boat
Summary of Contents for Harbor Freight Tools River Boat
-
Page 1: Assembly Instructions
3491 Mission Oaks Blvd., Camarillo, CA 93011 Visit our Web site at http://www.harborfreight.com ® Copyright © 2003 by Harbor Freight Tools . All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. - Page 2 SPECIFICATIONS ITEM DESCRIPTION Overall Dimensions 8-1/4” Long X 3-1/2” Wide X 3-7/8” High Template Dimensions 9” Long X 7-1/8” Wide (3X) Finish Natural Pressed Core-Wood Materials Pressed/Template Scored Core-Wood Net Weight 7.2 Ounces Age Appropriate 6 years and older SAVE THIS MANUAL You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram.
- Page 3 ASSEMBLY INSTRUCTIONS 1. Check the part numbers on the templates below to the drawing on Page 4. Mark each with the corresponding number with a pencil to help organize. Lay out in numeric order on a smooth surface after pressing out each piece with your thumb. (See Figure A-C) Figure B Figure A Figure C...
- Page 4 2. Smooth the edges of the punched out pieces with sand paper. Begin putting together by using the drawing below as a guide. Use glue on the portions shown in “black”. See arrows in Figure D. ® Use Scotch Tape on the backside to hold round or non-flat pieces together.
-
Page 5: Parts List
PARTS LIST PART # DESCRIPTION Templates-Scored Core-Wood Glue (White) (not shown) Sand Paper (2” X 2”)(not shown) Axle Rod (not shown) MAINTENANCE For better and safer performance, keep all parts of this product clean and dry. Periodically check to see that all hardware is in place. PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY.
