Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.

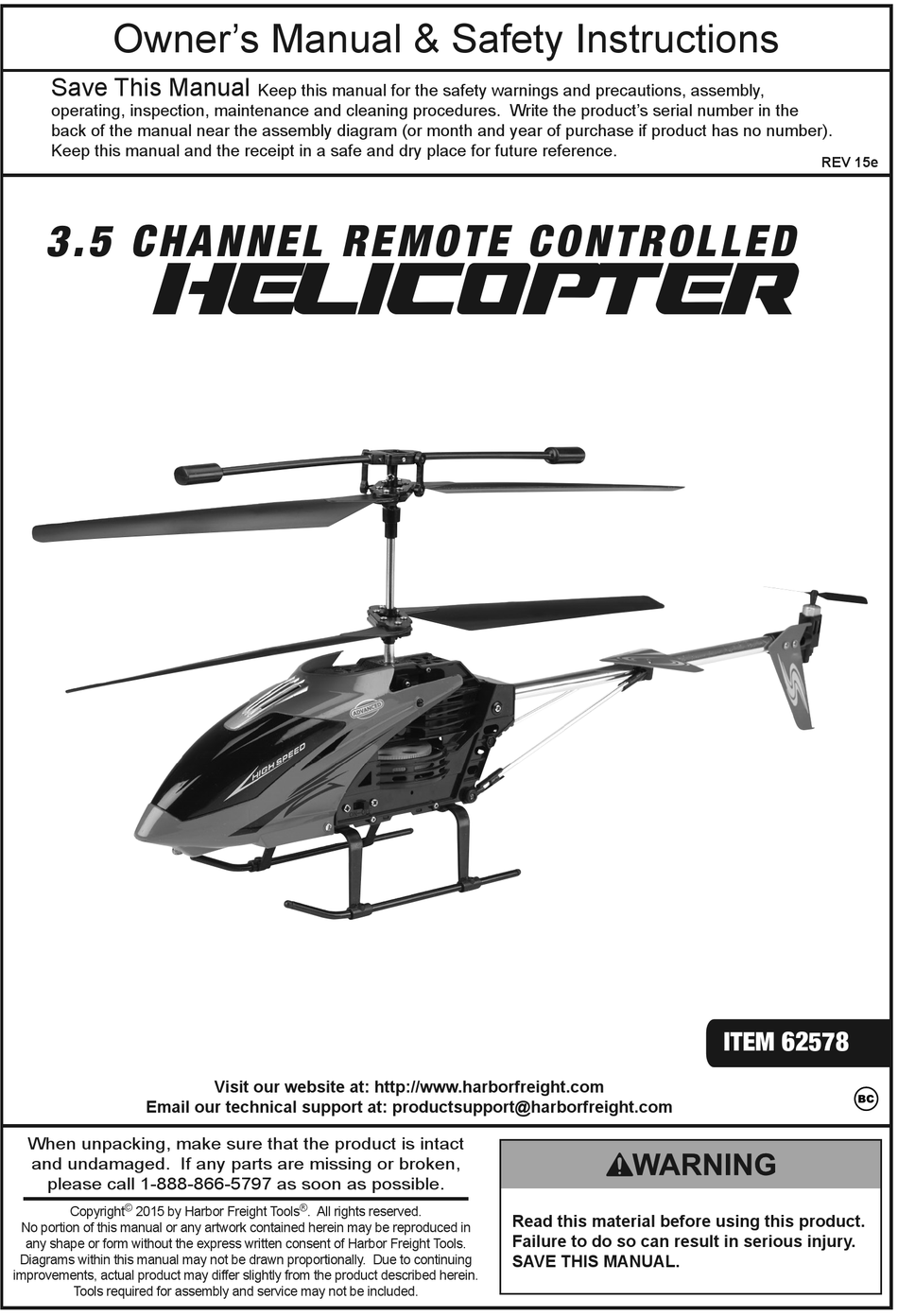

3.5 CHA NN EL REM O TE CO N T RO L LED
helicopter
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2015 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
REV 15e
ITEM 62578
Advertisement
Table of Contents
Related Manuals for Harbor Freight Tools 62578
Summary of Contents for Harbor Freight Tools 62578
- Page 1 No portion of this manual or any artwork contained herein may be reproduced in Failure to do so can result in serious injury. any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing SAVE THIS MANUAL.
-
Page 2: Important Safety Information
Do not use if parts are loose nameplates. These carry or damaged. If the toy has been important safety information. damaged, immediately stop using it. If unreadable or missing, contact Harbor Freight Tools for a replacement. For technical questions, please call 1-888-866-5797. Page 2 Item 62578... -
Page 3: Personal Safety
Do not wear loose clothing or jewelry. Keep hair and clothing, and away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. For technical questions, please call 1-888-866-5797. Item 62578 Page 3... -
Page 4: Specifications
3.7V / 1100 mAh rechargeable Lithium-ion Battery Charging Time 2 hours max Flying Time Approximately 5 minutes Cool Down Time Between Charges 30 minutes Range 50 feet Operating Frequency 27.145 MHz For technical questions, please call 1-888-866-5797. Page 4 Item 62578... - Page 5 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2AD4V000001 For technical questions, please call 1-888-866-5797. Item 62578 Page 5...
- Page 6 Helicopter from Power Supply, then front of the Helicopter. unplug Power Supply from outlet. CAUTION! Allow Battery to cool down Charging for 30 minutes between charges. Input Cable Figure A For technical questions, please call 1-888-866-5797. Page 6 Item 62578...
-
Page 7: Remote Control
Insert six AA batteries (sold separately). Replace Battery Cover. Figure B CAUTION! Position batteries in proper polarity and do not install batteries of different types, charge, levels, or capacities together. Figure C For technical questions, please call 1-888-866-5797. Item 62578 Page 7... -
Page 8: Components And Controls
Balance Upper Rotor Blade Tail Rotor Lower Rotor Blade Power Switch Push Together to Connect Push Tab and Pull Apart to Disconnect Battery Cables Figure D: Helicopter For technical questions, please call 1-888-866-5797. Page 8 Item 62578... - Page 9 Directional Joystick FUNCTIONS Throttle Joystick Up DOWN Throttle Joystick Down FORWARD Directional Joystick Up BACKWARD Directional Joystick Down LEFT Directional Joystick Left RIGHT Directional Joystick Right Figure E: Remote Control For technical questions, please call 1-888-866-5797. Item 62578 Page 9...
- Page 10 Helicopter should stay in until Helicopter stops rotating. one place without excessive rotation. b. If Helicopter rotates to right, turn Trim Controller slowly to left until Helicopter stops rotating. For technical questions, please call 1-888-866-5797. Page 10 Item 62578...
- Page 11 4 positions: a. Tail facing you. b. Left side facing you. c. Nose facing you. d. Right side facing you. Figure G: Tail Facing You For technical questions, please call 1-888-866-5797. Item 62578 Page 11...
-
Page 12: Inspection And Maintenance
Control, then store the Helicopter, dirt from the Helicopter. and accessories in a dry area away from direct sunlight and out of the reach of children. For technical questions, please call 1-888-866-5797. Page 12 Item 62578... -
Page 13: Replacing Rotors
Tail Gently pull up on Rotor until it comes off its Spindle. Rotor Spindle Tail Motor Figure J Replace Rotor, making sure that Tail Motor is firmly seated in place. For technical questions, please call 1-888-866-5797. Item 62578 Page 13... -
Page 14: Troubleshooting
2. Only operate within range. 3. Main Rotors installed 3. Install MainRotors correctly. incorrectly. Follow all safety precautions whenever diagnosing or servicing the Helicopter. Turn off Switches on Helicopter and Remote Control before service. For technical questions, please call 1-888-866-5797. Page 14 Item 62578... -
Page 15: Parts List
Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. For technical questions, please call 1-888-866-5797. Item 62578 Page 15... - Page 16 Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
