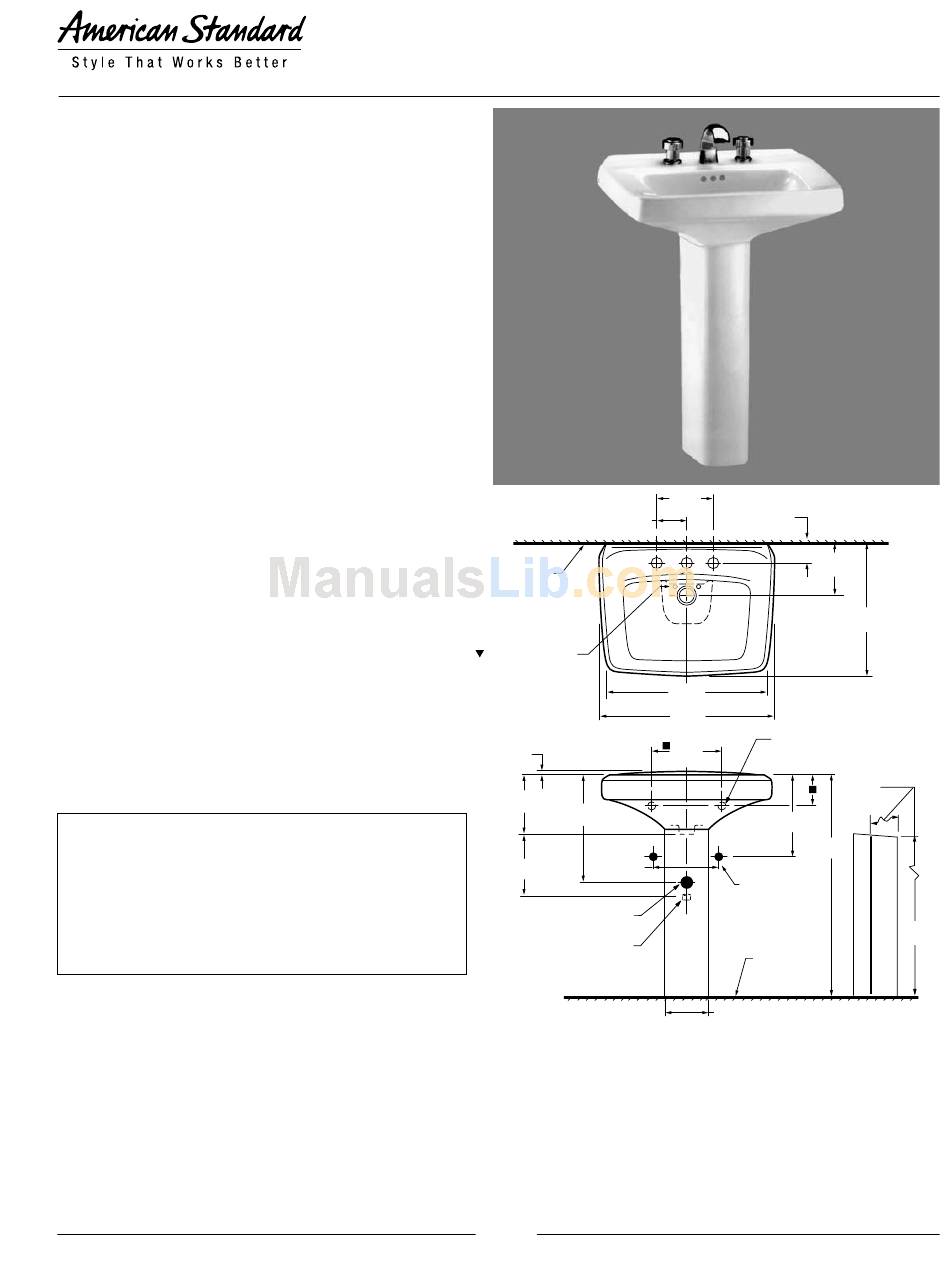

American Standard Lexington 0178.027 Specification Sheet

LEXINGTON™ PEDESTAL SINK
• Minimalistic styled pedestal sink
• Made from vitreous china
• Rear overflow
• Supplied with mounting kit
• Faucet ledge
Shown with 8871.902 Amarilis faucet with
Lexington handles (not included)
❏ 0178.514 Faucet holes on 8" (203mm) centers
(Illustrated)
❏
0178.536 Center Hole only
Nominal Dimensions:
616 x 464 x 867mm
(24-1/4" x 18-1/4" x 34-1/2")
Separate Components:
❏
0178.027 Pedestal top-8" (203mm) centers
❏ 0178.152 Pedestal top-center hole only
❏ 730500-400 Pedestal only
Bowl sizes:
445mm (17-1/2") wide
276mm (10-7/8") front to back
143mm (5-5/8") deep
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.2M for Vitreous China Fixtures
To Be Specified:
❏ Color: ❏ White ❏ Bone ❏ Linen
❏ Silver ❏ Fawn Beige
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
* See faucet section for additional models available
© 2008 AS America Inc.
FINISHED
PEDESTAL ANCHOR
SCREW HOLES
(2)10mm (3/8) DIA.
10mm
(3/8)
187mm
(7-3/8)
178mm
❏ Black
NOTES:
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP ARE
*
SUGGESTED.
▼ PEDESTAL ANCHORING SCREWS NOT INCLUDED.
■ SUITABLE FOR REINFORCEMENT ONLY. ACTUAL DIMENSIONS MUST
BE TAKE FROM FIXTURE.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
INSTALLATION INSTRUCTIONS SUPPLIED WITH LAVATORY.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
J5
203mm
(8)
102mm
(4)
WALL
565mm
(22-1/4)
610mm
(24-1/4)
254mm
(10)
*
330mm
(13)
203mm
(7)
(8)
1-1/4 O.D.
WASTE
1-1/4 O.D.
TAILPIECE
LEXINGTON™
PEDESTAL SINK
VITREOUS CHINA
70mm
(2-3/4)
197mm
(7-3/4)
464mm
(18-1/4)
19mm (3/4) DIA.
HOLES FOR
ANCHOR BOLTS
DRAIN
CHASE
*
286mm
(11-1/4)
876mm
(34-1/2)
SUPPLIES AS
REQUIRED
FINISHED
FLOOR
178mm
(7)
Revised 2/08
OPEN TO
FLOOR
