Cisco Video Surveillance 3520 IP Camera
Product Overview
The Cisco
leading image quality and processing power. The camera is capable of resolutions up to 1280 x 800 at 30 frames
per second (fps) while optimizing network usage with either H.264 or MJPEG compression. Contact closures allow
integration with access control systems. With its open, standards-based design, the camera provides an ideal
platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network.

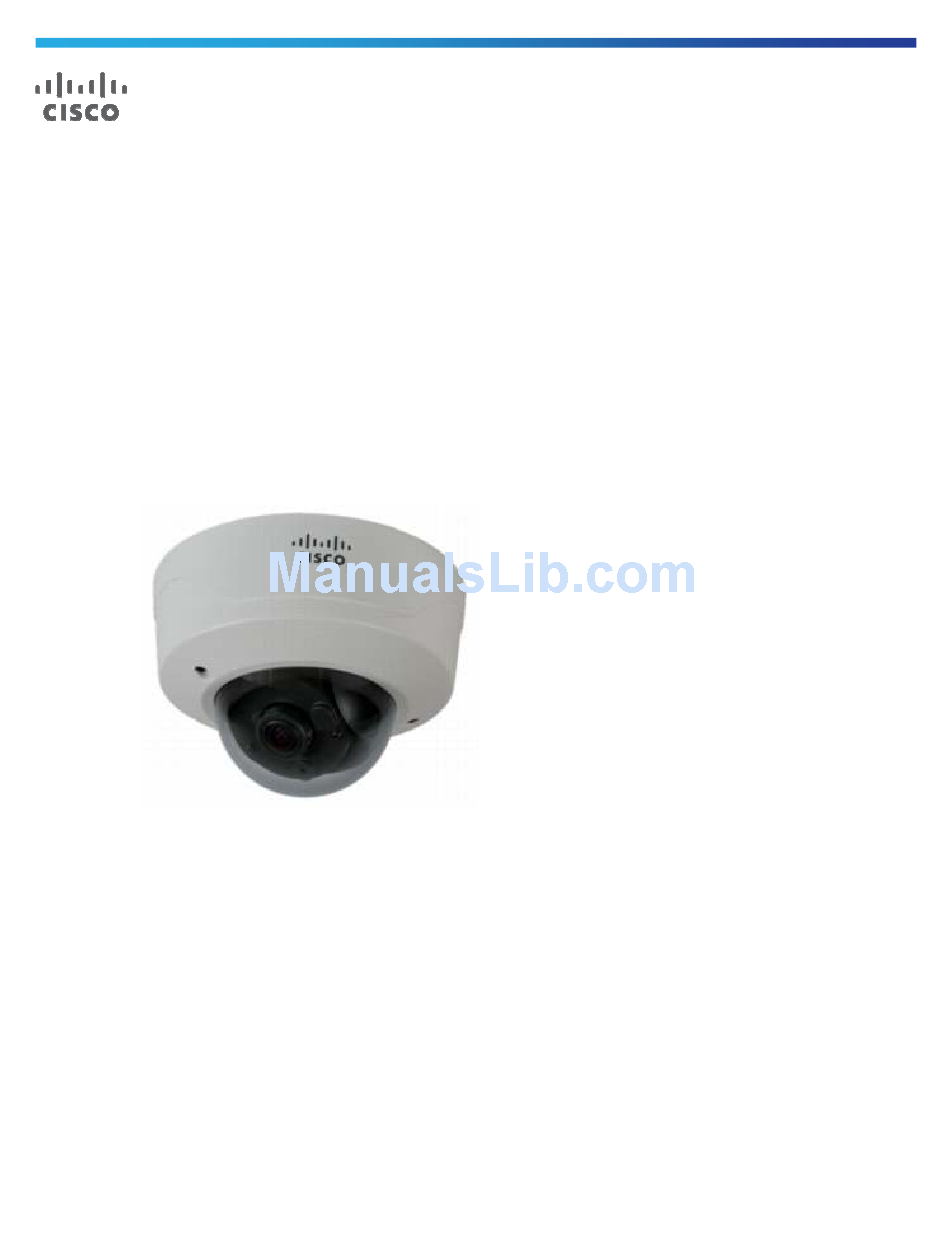

Figure 1 shows the Cisco Video Surveillance 3520 IP Camera.
Figure 1.
The Cisco Video Surveillance 3520 IP Camera offers a variety of benefits, including:
True high-definition video. The camera streams crisp and clear video at resolutions of up to 1280 x 800
at 30 fps while maintaining low network bandwidth.
Dual streaming. The camera can stream H.264 and MJPEG video simultaneously. Each video stream can
be configured with individual resolution, quality, and frame-rate settings.
Day/night operation. The camera provides true day/night functionality and includes an infrared filter that
automatically switches to night mode in low-light scenes. This function can be set to manual, automatic, or
scheduled control.
Privacy regions. The camera supports up to four user-defined privacy regions. Any video within a privacy
region is masked in the video stream.
Local storage. Video data can automatically be recorded to a microSD card when the camera loses
network connectivity.
Bidirectional audio. The camera supports full-duplex audio and options for half-duplex operation.
© 2013 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public.
®
Video Surveillance 3520 IP Camera is a high-definition, full-functioned video endpoint with industry-
Cisco Video Surveillance 3520 IP Camera
Data Sheet
Page 1 of 6

Advertisement

   Also See for Cisco 3520

   Related Manuals for Cisco 3520

   Summary of Contents for Cisco 3520

  • Page 1

    With its open, standards-based design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network. Figure 1 shows the Cisco Video Surveillance 3520 IP Camera.

  • Page 2

    ● power through an optional external power supply. Medianet support. The camera supports the Cisco Medianet interface. When connected to a Cisco switch ● that also supports Medianet, the switch recognizes the camera as a video endpoint and then uses SmartPort macros to set the right network parameters for the video stream on the network.

  • Page 3

    640 x 368 640 x 368 Table 3 lists the video stream support for the Cisco Video Surveillance 3520 IP Camera for 4:3 aspect ratios. Table 3. Cisco Video Surveillance 3520 IP Camera Video Stream Support for 4:3 Aspect Ratios Primary (H.264)

  • Page 4: Specifications

    Software Table 5 describes the primary features of the Cisco Video Surveillance 3520 IP Camera software. Table 5. Cisco Video Surveillance 3520 IP Camera Primary Software Features Item Specification Activity detection User-definable alerts with configurable sensitivities and thresholds, e-mail alert, and HTTP notifications...

  • Page 5: Package Contents

    The Cisco Video Surveillance 3520 IP Camera is available through Cisco Authorized Technology Provider (ATP) Partners. Ordering Information Table 8 lists the part numbers for the Cisco Video Surveillance 3520 IP Camera and accessories. Table 8. Ordering Information Part Number...

  • Page 6: For More Information

    Services and Support Cisco and our certified partners can help you accelerate success and improve the return on your investment in a Cisco Physical Security solution. The Cisco lifecycle approach to services defines the requisite activities at each phase of the solution lifecycle. This approach allows you to: Reduce deployment costs by identifying the features that will best meet your business requirements ●...
