Air King 4TM65A Operating Instructions & Parts Manual

MODELO 4TM65A/9530A
Rev. E 7/05
NOTAS
8
OPERATING INSTRUCTIONS & PARTS MANUAL
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT
DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO
COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

DESCRIPTION

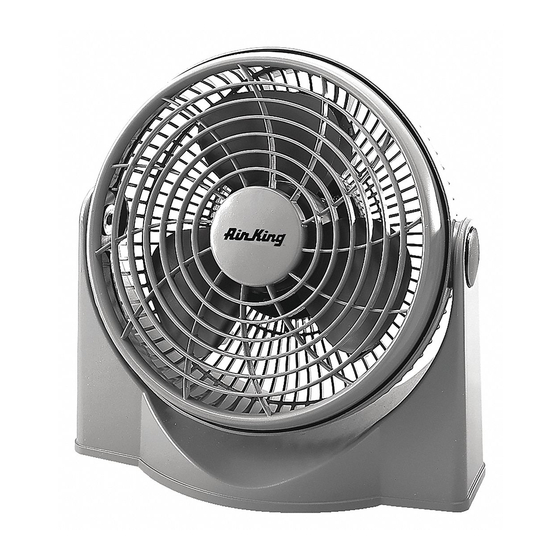

The Airking 9" (22.9 cm) high performance pivot fan features
3-speed rotary knob operation with 112 ° adjustable tilt stand. The
9" ( 22.9 cm) 3-paddle blade is driven by a permanent prelubricated
motor with a 6' (1.83 m) 18/3 cordset

SPECIFICATIONS

Motor .............................. 120V, 60 Hz
Blade Diameter .............. 9" ( 22.9 cm)
Speeds ........................... 3
Control ........................... Rotary Knob
Air Flow Distribution ....... 112° Variable
Approvals ....................... UL listed. Close mesh fan guard meets
OSHA requirements.
MODEL 4TM65A/9530A
SPEED HIGH MED
CFM 700 610
M 3 /s 0.33 0.29
RPM 2100 1800
Amps 0.50 0.43
Watts 58 51
dB A 54 50

GENERAL SAFETY INFORMATION

When using electrical appliances, basic pr e cau-
tions should always be followed to r educe the
risk of fire, electric shock and injury to person,
including the following:
1. Read all instructions before using Fan.
2. Make certain that the power source conforms to the electrical
requirements of the Fan.
3. Use this Fan only as described in this manual. Any other use not
recommended by the man ufacturer may cause fire , electrical
shock, or injury to persons.
5. Unplug power cord before installing, servicing, or moving the Fan.
WARNING:
DO NOT DEPEND UPON THE ON-OFF
SWITCH AS THE SOLE MEANS OF DISCONNECTING
POWER WHEN INSTALLING OR SERVICING THE FAN.
ALWAYS UNPLUG THE POWER CORD.
6. This Fan must NOT be used in potentially dangerous
locations such as flammable, explosive, chemical-laden
or wet atmospheres.
7. DO NOT use Fan in or near a window. Rain may create an
electrical hazard.
2. The power cord is equipped with a three-prong grounded plug
that must be inserted into a matching receptacle. Under no
circumstances must the grounding prong be cut off the plug.
Where a two-prong wall receptacle is encountered, it must be
2084532
Rev. E 7/05
9" HIGH PERFORMANCE PIVOT FAN
9" (22.8 cm) MODEL 4TM65A/9530A
replaced with a properly grounded three-prong receptacle in-
stalled in accordance with the National Electrical Code (NEC)
and all applicable local codes and ordinances. This work must
be done only by a qualified electrician, using copper wire only.
WARNING:
USE OF A THREE-PRONG TO TWO-PRONG
ADAPTER IS NOT RECOMMENDED. IMPROPER CON-
NECTION MAY CREATE THE RISK OF ELECTROCUTION.
USE OF SUCH ADAPTERS IS NOT PERMITTED IN CANADA.
WARNING:
THIS PLUG IS A SAFETY FEA TURE. TO
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND
PERSONAL INJURY, DO NO T REMOVE, REPLACE,
REPAIR OR TAMPER WITH THE ORIGINALLY SUPPLIED
PLUG. IF THE FAN DOES NOT FUNCTION PROPERLY, IT
MAY BE DUE TO THE SAFETY DEVICE INCORPORATED
IN THIS PLUG. RETURN TO AN AUTHORIZED SERVICE
CENTER OR CALL 800-233-0268, MONDAY - FRID AY,
LOW
BETWEEN 8:00 AM AND 5:00 PM EST . IF THE PLUG
520
WARNING LABEL IS MISSING OR DAMAGED, CALL THE
0.25
TOLL FREE NUMBER FOR A REPLACEMENT LABEL.
1500
8. Where possible, avoid the use of extension cords. If they must be
0.37
used, minimize the risk of overheating by ensuring that they are
45
UL listed. Never use a single e xtension cord to operate more than
46
one Fan.
9. Do not operate any Fan with a damaged cord or plug or after the
Fan malfunctions, has been dropped or damaged in any manner.
Return Fan to authorized service facility for examination, electrical
or mechanical adjustment or repair.
10.Do not inser t or allo w fingers or f oreign objects to enter an y
ventilation or exhaust opening as it may cause an electric shock
or fire, or damage the Fan. Do not block or tamper with the Fan
in any manner while it is in operation.
11.Always place the Fan on a stable, flat, level surface when
operating, to avoid the chance of the Fan overturning. Locate the
Power Cord so the Fan or other objects are not resting on it. Do
not run Power Cord under carpeting. Do not cover Power Cord
with throw rugs, runners, or the like. Arrange Power Cord away
from room traffic and where it will not be tripped over.
12.This Fan is not intended f or use in wet or damp locations.
Never locate a Fan where it may fall into a bathtub or other
water container.
13. Do not use Fan outdoors.
WARNING:
REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK – DO NOT USE THIS FAN WITH ANY SOLID ST ATE
SPEED CONTROL DEVICES.
SAVE THESE
INSTRUCTIONS
1
