Air King 4TM67/9700 Operating Instructions

OPERATING INSTRUCTIONS & PARTS MANUAL
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH
INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!

DESCRIPTION

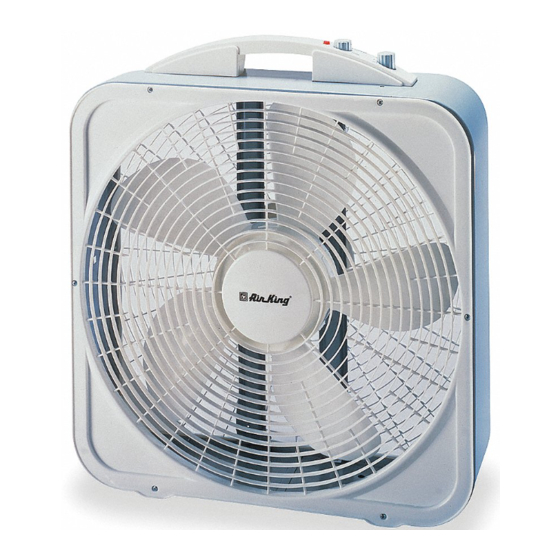

The Airking 20" (50.8 cm) portable box fan features 3-speed rotary knob
operation, adjustable thermostat, lighted comfort level indicator and
rounded corners. The 5-paddle blade is driven by a permanent prelubricated
motor with a 6' (1.83 m) 18/3 cordset. Fan is fully assembled.

SPECIFICATIONS

Motor ................................... 120V, 60 Hz
Blade Diameter ................... 20" ( 50.8 cm)
Speeds ................................ 3
Control ................................ Rotary Knob
Approvals ............................ UL listed. Close mesh fan guard meets
OSHA requirements.
MODEL
SPEED HIGH
CFM 4550
M 3 /s 2.15
RPM 925
Amps 1.79
Watts 165
dB A 65

GENERAL SAFETY INFORMATION

1. Make certain that the power source conforms to the electrical
requirements of the fan.
2. The power cord is equipped with a three-prong grounded plug that
must be inserted into a matching receptacle. Under no circumstances
must the grounding prong be cut off the plug. Where a two-prong wall
receptacle is encountered, it must be replaced with a properly grounded
three-prong receptacle installed in accordance with the National
New 4/98
READ AND SAVE THESE INSTRUCTIONS
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
4TM67/9700
MED LOW
3430 2580
1.62 1.22
690 550
1.30 1.00
117 87
48 43
20" PORTABLE BOX FAN
with THERMOSTAT
20" (50.8 cm) MODEL 4TM67/9700
Electrical Code (NEC) and all applicable local codes and ordinances.
This work must be done only by a qualified electrician, using copper
wire only.
WARNING: USE OF A THREE-PRONG TO TWO-PRONG ADAPTER IS
NOT RECOMMENDED. IMPROPER CONNECTION MAY CREATE
THE RISK OF ELECTROCUTION. USE OF SUCH ADAPTERS IS NOT
PERMITTED IN CANADA.
3. Where possible, avoid the use of extension cords. If they must be
used, minimize the risk of overheating by ensuring that they are UL
listed and of the proper gage and length. Never use a single extension
cord to operate more than one fan.
4. Do not insert fingers or foreign objects into the fan. Do not block or
tamper with the fan in any manner while it is in operation.
5. To avoid the possibility of overturning the fan, ensure that it is
operating on a stable, level surface.
6. Unplug power cord before installing or servicing the fan
7. Completely reassemble fan, according to instructions, before
reconnection to power supply.
WARNING: DO NOT DEPEND UPON THE ON-OFF SWITCH AS THE
SOLE MEANS OF DISCONNECTING POWER WHEN INSTALLING OR
SERVICING THE FAN. ALWAYS UNPLUG THE POWER CORD.
8. This fan is intended for general use ONLY. It must NOT be used in
potentially dangerous locations such as flammable, explosive, chemi-
cal-laden or wet atmospheres. DO NOT use fan in a window. Rain may
create an electrical hazard.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT USE THIS FAN WITH ANY SOLID STATE SPEED CONTROL
DEVICE.

OPERATION

1. Be sure Fan is in OFF position.
2. Plug Fan into any standard 120v Ac household outlet.
3. Turn Thermostat to the highest setting (Cooler).
4. Turn Fan on to desired speed - High (3),
Med. (2) or Low (1).
5. When a desired temperature has been
reached, adjust the Thermostat until the
Fan stops. Your Fan will now turn ON and
OFF to maintain the desired comfort level.
As an added safety feature, the Thermostat
Light will come ON to let you know that your
Fan is still in the ON position and the Fan
can turn itself back on.
IMPORTANT: Your AirKing Ultra Box Fan is equipped with a Climate
Control Thermostat. This Thermostat functions by sensing the temperature
in the room and will turn the Fan on or off AUTOMATICALLY as the
temperature changes.
