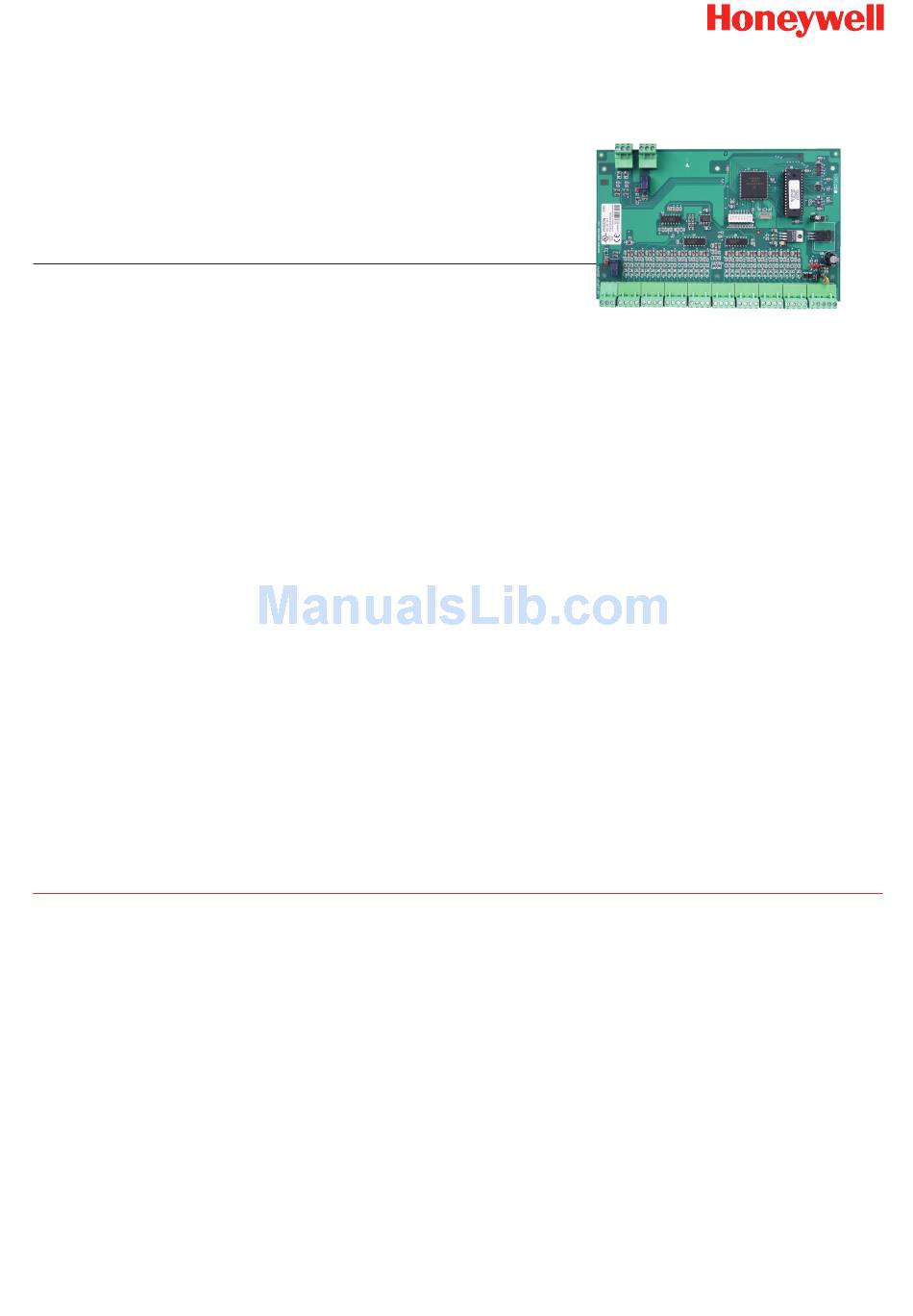

PRO-2200 Series
Access Modules
PRO22IC, PRO22R1, PRO22R2, PRO22OUT, PRO22IN
The PRO-2200 Series family of access modules is controlled
by and connected to the intelligent control module through a
supervised RS-485 bus at 38,400 bps. Hardware interface
configuration options are stored in the intelligent control
module and may be directly controlled via operator
intervention, time schedules or event-based procedures.
The access modules have been designed to allow for a
modular customisable solution. The PRO22R1 provides I/O
support for one card access reader, while the PRO22R2
supports two card access readers. Both interface with the
intelligent control module (PRO22IC). In the event that
communication to the intelligent control module is lost, the
card access readers can be individually configured to allow
entrance based on security needs. This customization allows
for a door to be configured as locked, unlocked, or access
only via valid facility code.
The PRO22OUT interfaces with the intelligent control module
(PRO22IC) providing two dedicated power fail and panel
tamper when tile mounted. Up to 12 or 16, form C, 12 VDC,
2 amp, relay output controls depending if the board is rack
or tile-mounted. Relays may be used for elevator control,
status annunciation and for general facility control, such as
door monitoring.
F E AT U R E S
• Modular design fits a wide variety of
applications
• Up to nine modules, power-supply
and battery can be accommodated
by the PRO22ENC1, PRO22ENC2
and PRO22ENC5 enclosures
• User programmable relay outputs
allow for specific control needs
• User programmable alarm inputs
offer flexible system configuration
and control
• RS-485 communication to all
modules
• Dedicated cabinet tamper and
power monitor inputs
• Analog to digital converter
technology provides digital filtering
and input conditioning

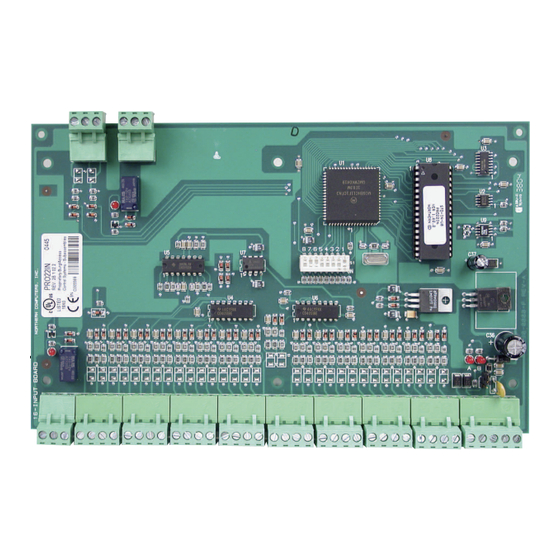

The PRO22IN interfaces with the intelligent control module
(PRO22IC) providing 16 supervised alarm inputs and two
dedicated power fail and panel tamper when tile mounted.
An analog to digital converter samples the input values and
the digitized result is filtered and processed. Filter parameters
are configurable for each input point, resulting in the ability to
specify a custom End- Of-Line (EOL) resistance value,
sensitivity range and timing parameter.
The PRO-2200 Series of access modules is designed to
accommodate various mounting options. Units can be
mounted in a rack configuration (PRO22ENC1, PRO22ENC2
and PRO22ENC5) when space is limited, or in a tile-mount
configuration (PRO22ENC3).
• Supports the choice of normally
open, normally closed, supervised,
and non-supervised circuits
• Supports a wide range of reader
technologies including Wiegand,
Magnetic Stripe, Proximity, and
Keypad
• System off-line modes customizable
per reader include facility code
access, locked (no access), and
unlocked (full access)
• Supports multiple reader and card
formats for maximum flexibility and
security options
• Operating modes include locked,
unlocked, facilit code, card only,
card and PIN, card or PIN and PIN
only
The PRO22ENC1 is a wall-mounted enclosure rack unit
The PRO22ENC2 is a 19 inch rack-mounted enclosure
rack unit
The PRO22ENC5 is a rack unit which fits within a
customers enclosure.
• Any combination of 8 I/O or reader
modules may be connected to the
PRO22IC RS-485 ports
• Alarm circuit type – normally open,
normally closed, non-supervised,
supervised (with correct EOL). Meets
requirements for UL294 and CUL
• Any combination of 8 I/0 or readers
modules may be connected to the
PRO221C RS-485 ports. 4,000 feet
/ 1,250 meters total bus length per
port
