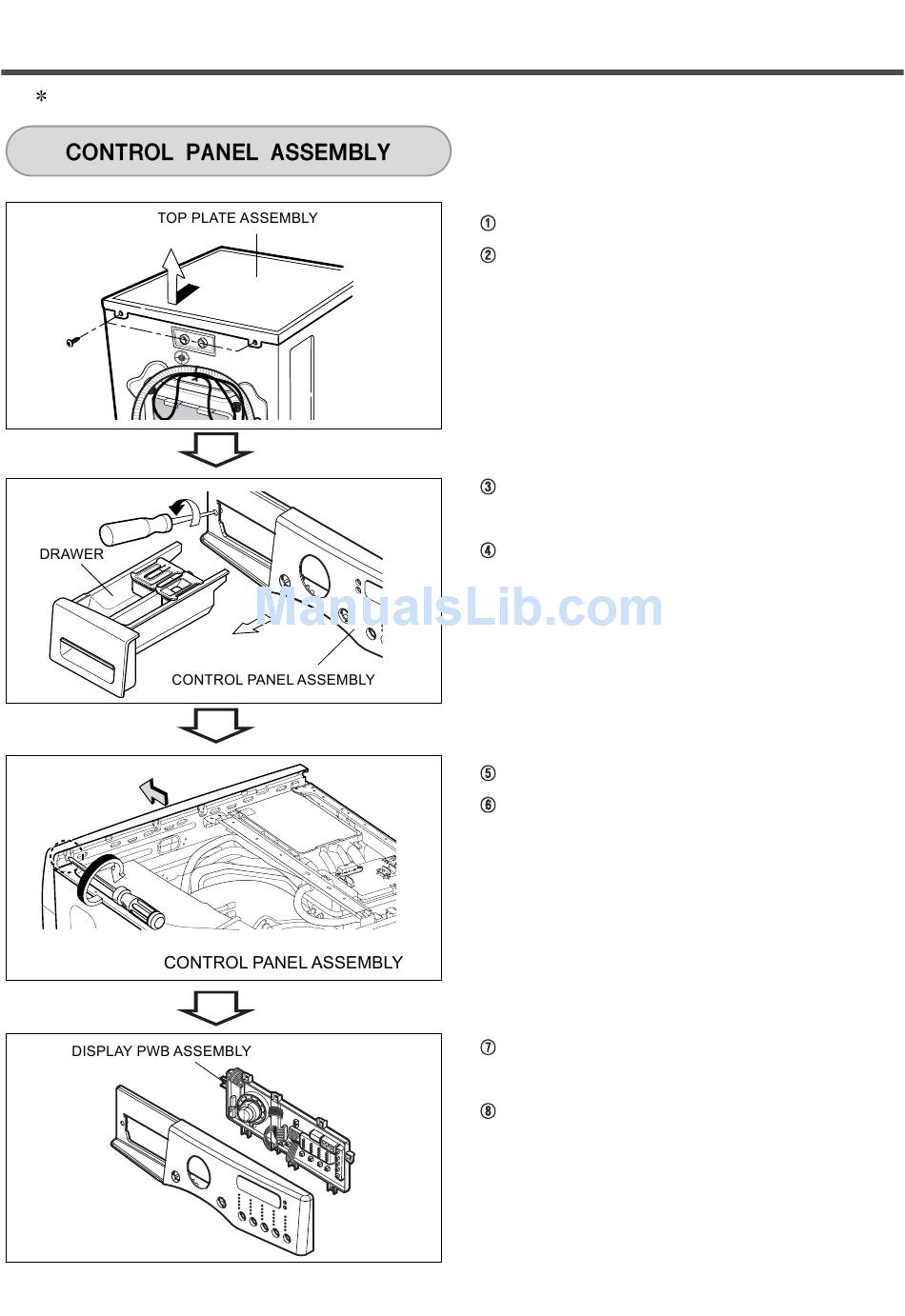

9. DISASSEMBLY INSTRUCTIONS
Be sure to unplug the machine out of the outlet before disassembling and repairing the parts.
Unscrew 2 screws on the back of the top plate.
Pull the top plate backward and upward as shown.
Disconnect the Display PWB Assembly connector
from Trans cable.
Pull out the drawer and unscrew 2 screws.
Taking out 1 screw.
Lift the side the Control Panel Assembly and
pull it out
Unscrew the 8 screws from the Control Panel
Assembly.
Disassemble the Display PWB Assembly.
29
