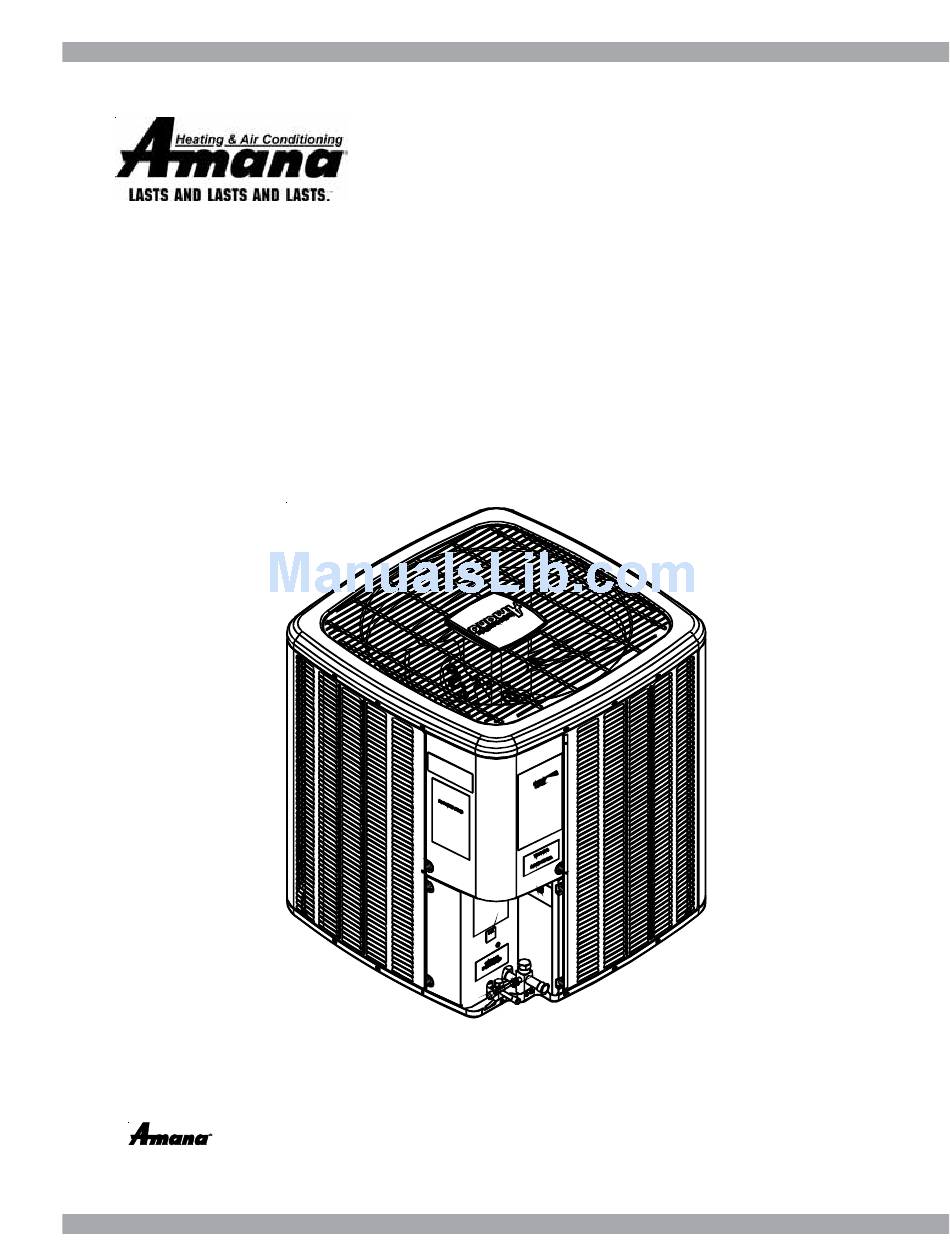

Amana ASX 14 SEER Technical Manual

Asx 14 seer condensing units
Hide thumbs

Advertisement

Quick Links

Download this manual
•
Refer to Service Manual RS6200006 for installation, operation, and troubleshooting information.
•
All safety information must be followed as provided in the Service Manual.
•
Refer to the appropriate Parts Catalog for part number information.
•
Models listed on page 3.
This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does
not assume any responsibility for property damage or personal injury due to improper service
procedures or services performed by an unqualified person.
is a registered trademark of Maytag Corporation or its related companies and is used under
license to Goodman Company, L.P., Houston, TX. All rights reserved.
TECHNICAL MANU AL
TECHNICAL MANU
TECHNICAL MANU
TECHNICAL MANU
TECHNICAL MANU
®
ASX 14 SEER

Condensing Units

Copyright ©
2006-2013 Goodman
Company, L.P.
AL
AL
AL
AL
RT6113004r14
November 2013

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASX 14 SEER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amana ASX 14 SEER

Summary of Contents for Amana ASX 14 SEER

  • Page 1: Condensing Units

    TECHNICAL MANU AL TECHNICAL MANU TECHNICAL MANU TECHNICAL MANU ® ASX 14 SEER Condensing Units • Refer to Service Manual RS6200006 for installation, operation, and troubleshooting information. • All safety information must be followed as provided in the Service Manual.

  • Page 2: Product Identification

    FAMILY: 3: 208-230v S: Split System 3ph/60Hz 4: 460v SEER: 3ph/60Hz SEER Rating BRAND: ® MAJOR REVISION: A: Amana Brand A: Initial Release ® S: Goodman Brand (High Feature Set Model) NOMINAL PRODUCT TYPE: CAPACITY C: Condenser R-22 018: 1.5 Tons...
  • Page 3 PRODUCT IDENTIFICATION The model number is used for positive identification of component parts used in manufacturing. Please use this number when requesting service or parts information. ASX140181A* ASX140181C* ASX140241A* ASX140241C* ASX140301A* ASX140301C* ASX140361A* ASX140361C* ASX140421A* ASX140421C* ASX140481A* ASX140481C* ASX140601A* ASX140181D* ASX140181B* ASX140421D* ASX140241B*...

  • Page 4: Product Design

    PRODUCT DESIGN completely unobstructed; however, if vertical conditions re- ASX14 models are available in 1 1/2 through 5 ton sizes and quire placement beneath an obstruction there should be a use R-410A refrigerant. They are designed for 208/230 volt minimum of 60 inches between the top of the unit and single phase applications.
  • Page 5 PRODUCT DESIGN DIMENSIONS Model Dimensions - W x D x H Model Dimensions - W x D x H ASX140181A* 26" x 26" x 32¼" ASX140361A* 29" x 29" x 34¼" ASX140181B* ASX140361B* 29" x 29" x 32½" ASX140181C* ASX140361C* 26"...
  • Page 6 CONDENSING UNIT SPECIFICATIONS ASX140181A* - ASX140361A* ASX140181A* ASX140241A* ASX140301A* ASX140361A* Cooling Capacity, BTUH 18,000 24,000 30,000 36,000 Compressor R.L. Amps 9.00 13.4 12.8 14.1 L.R. Amps 48.0 58.3 64.0 77.0 Low Pressure Switch Open 22 PSIG 22 PSIG 22 PSIG 22 PSIG Close 50 PSIG...
  • Page 7 CONDENSING UNIT SPECIFICATIONS ASX140181B* - ASX140361B* / ASX140181C* - ASX140361C* ASX140181B* ASX140241B* ASX140301B* ASX140301C* ASX140361B* ASX140361C* ASX140181C* ASX140241C* Cooling Capacity, BTUH 18,000 24,000 28,800 28,800 34,600 34,600 Compressor R.L. Amps 9.00 13.5 12.8 12.8 14.1 14.1 L.R. Amps 48.0 58.3 64.0 64.0 77.0...
  • Page 8 CONDENSING UNIT SPECIFICATIONS ASX140181D* / ASX140421D* ASX140181D* ASX140421D* Cooling Capacity, BTUH 18,000 40,000 Compressor R.L. Amps 9.00 16.7 L.R. Amps 48.0 79.0 Low Pressure Switch Open 22 PSIG Close 50 PSIG High Pressure Switch Open 610 PSIG 610 PSIG Close 420 PSIG 420 PSIG Condenser Fan Motor...
  • Page 9 COOLING PERFORMANCE DATA ASX140181A*...
  • Page 10 COOLING PERFORMANCE DATA ASX140181A*...
  • Page 11 COOLING PERFORMANCE DATA ASX140181B* / C* / D*...
  • Page 12 COOLING PERFORMANCE DATA ASX140181B* / C* / D*...
  • Page 13 COOLING PERFORMANCE DATA ASX140241A*...
  • Page 14 COOLING PERFORMANCE DATA ASX140241A*...
  • Page 15 COOLING PERFORMANCE DATA ASX140241B* / C*...
  • Page 16 COOLING PERFORMANCE DATA ASX140241B* / C*...
  • Page 17 COOLING PERFORMANCE DATA ASX140301A*...
  • Page 18 COOLING PERFORMANCE DATA ASX140301A*...
  • Page 19 COOLING PERFORMANCE DATA ASX140301B* / C*...
  • Page 20 COOLING PERFORMANCE DATA ASX140301B* / C*...
  • Page 21 COOLING PERFORMANCE DATA ASX140361A*...
  • Page 22 COOLING PERFORMANCE DATA ASX140361A*...
  • Page 23 COOLING PERFORMANCE DATA ASX140361B* / C*...
  • Page 24 COOLING PERFORMANCE DATA ASX140361B* / C*...
  • Page 25 COOLING PERFORMANCE DATA ASX140421A*...
  • Page 26 COOLING PERFORMANCE DATA ASX140421A*...
  • Page 27 COOLING PERFORMANCE DATA ASX140421B*...
  • Page 28 COOLING PERFORMANCE DATA ASX140421B*...
  • Page 29 COOLING PERFORMANCE DATA ASX140421C* / D*...
  • Page 30 COOLING PERFORMANCE DATA ASX140421C* / D*...
  • Page 31 COOLING PERFORMANCE DATA ASX140481A* / B*...
  • Page 32 COOLING PERFORMANCE DATA ASX140481A* / B*...
  • Page 33 COOLING PERFORMANCE DATA ASX140481C*...
  • Page 34 COOLING PERFORMANCE DATA ASX140481C*...
  • Page 35 COOLING PERFORMANCE DATA ASX140601A* / B*...
  • Page 36 COOLING PERFORMANCE DATA ASX140601A* / B*...

  • Page 37: Performance Data

    PERFORMANCE DATA ASX140[18-60]1A* / ASX140[48-60]1B* MODEL: ASX140181A* / CA*F3131B6A* + TXV MODEL: ASX140241A* / CA*F3636B6A* W/.057 Orifice, Conditions: 80°F IDB, 67°F IW B @ 600 CFM Conditions: 80°F IDB, 67°F IWB @ 800 CFM Outdoor Total Se ns ible Late nt Total Outdoor Total...
  • Page 38 PERFORMANCE DATA ASX140[24-42]1B* / ASX140[18-36]1C* MODEL: ASX140181[B*/C*/D*] / CA*F3636*6C* W/.052 Orifice M ODEL: ASX1 4 0 2 4 1 [B*/C*] / CA*F3 6 3 6 *6 C* W /.0 5 5 Orific e , Conditions : 8 0 °F IDB, 6 7 °F IW B @ 7 2 5 CFM Conditions: 80°F IDB, 67°F IWB @ 600 CFM Ou td o o r T o tal...
  • Page 39 PERFORMANCE DATA ASX140421[C/D]* - ASX140481C* MODEL: ASX 140421[C*/D* ] / CA*F4860*6B* W /.070 Ori fice, ASX140481C* / CA*F4860*6D* W/.078 Orfice Conditions: 80°F IDB, 67°F IWB @ 1450 CFM Conditions: 80°F IDB, 67°F IWB @ 1550 CFM Outdoor Total Sensible Latent Total Outdoor Total...

  • Page 40: Wiring Diagrams

    WIRING DIAGRAMS ASX140[18-60]1* HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. ONLY CONTACTOR POLE DOUBLE ALTERNATE Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
  • Page 41 ASX140[18-36/48]1C[A/B] WIRING DIAGRAMS ASX140421D[A/B] / ASX140[48-60]1[BA/B] HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. ONLY CONTACTOR POLE DOUBLE ALTERNATE Wiring is subject to change.
  • Page 42 ASX140[24-36]1CC / ASX140421DC WIRING DIAGRAMS ASX140481CB / ASX140601BC / ASX1401801DA HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. ONLY ONLY CONTACTOR CONTACTOR...
  • Page 43 ASX140[24-36]1CD / ASX140421DD WIRING DIAGRAMS ASX140481CC / ASX140601BD / ASX1401801DB HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. ONLY CONTACTOR POLE DOUBLE...
