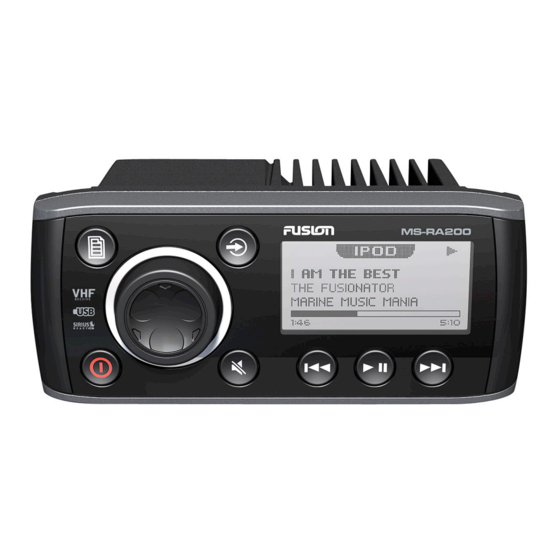

- Page 1 USER / INSTALLATION MANUAL MARINE STEREO MS-RA...
-
Page 2: Table Of Contents
OPERATION » This device may not cause harmful interference, SIRIUS SATELLITE RADIO (USA ONLY) » This device must accept any interference received, ZONE OPERATION including interference that may cause undesired operation. MENU STRUCTURE TROUBLESHOOTING SPECIFICATIONS AND LICENSING FUSION MARINE ACCESSORIES... -
Page 3: Installation
Ensure that when connecting the wires to the speakers and audio system, the terminals and Screw Covers connections are protected from shorting to each other. ELECTRICAL WIRING Caution: The MS-RA200 is designed for vessels with a 12V DC Negative ground electrical system... -
Page 4: Wiring Diagram
PURPLE SPEAKER ZONE 2 R (+) 2 WIRE REMOTE PURPLE/BLACK STRIPE SPEAKER ZONE 2 R (-) Connect to FUSION 2 Wire Remote (not included). ORANGE 2 WIRE REMOTE TELE MUTE / INTERUPT ORANGE/WHITE STRIPE 2 WIRE REMOTE... -
Page 5: Button Description
BUTTON DESCRIPTION ROTARY ENCODER POWER BACK/PREVIOUS SOURCE Press to turn the unit ON/OFF. Press to cycle through sources Turn Short Press Press and Hold AM - FM - VHF - iPod - USB - AUX To adjust volume, move up or down a iPod/USB - Select the previous track. -
Page 6: General Operation
SETTINGS ZONE SETUP LANGUAGE Note: The MS-RA200 can be be completely The MS-RA200 Marine Stereo features Multi-Zone Select the desired language for the on screen display disconnected from the constant +12V voltage supply » Press the ’Menu’ button and select ‘Settings’. -
Page 7: Radio Operation
Press ‘Menu’ and select ‘Squelch’. Note: You may require an adapter cable to connect (if available) and the volume control on the FUSION Increase Squelch to filter out nearby chatter and Note: Preset function is only available when more than your device. -
Page 8: Ipod/Iphone Operation
REPEAT VIDEO PLAYBACK NO iPod CONNECTED Note: Connect a FUSION Marine Dock for iPod (MS-DKIP or Press the ‘Menu’ button and select ‘Preferences’, select Requires the optional FUSION Marine Portable If this appears on the display possible causes are MS-DKIPUSB) to gain the benifits of integrated housing ‘Repeat’. -
Page 9: Sirius Satellite Radio
SIRIUS SATELLITE RADIO ZONE OPERATION USA only - SIRIUS TUNER NOT INCLUDED PRESET TUNING MODE The MS-RA200 Marine Stereo features Multi-Zone SUBWOOFER ACTIVATING YOUR SIRIUS TUNER Press ‘Play’ to cycle to preset tuning mode. Press the technology which enables 2 ‘Zones’ with independent You must activate the SIRIUS tuner before you can begin Adjust the sub limit and filter. -
Page 10: Menu Structure
MENU STRUCTURE TROUBLESHOOTING ROOT MENU RESET iPod AM/FM PRESETS PLAYLISTS Should the stereo become unresponsive. Follow the below steps: ARTISTS SAVE CURRENT ALBUMS VIEW PRESETS » Press and hold the ‘Power’ button for 10 seconds to reset SONGS REMOVE PRESET PODCASTS REMOVE ALL PRESETS the stereo. -
Page 11: Specifications And Licensing
Sirius Satellite Radio Inc. All rights reserved. PUBLISHED BY FUSION ELECTRONICS LIMITED. © Copyright 2010 by FUSION Electronics Limited. All rights reserved. Specifications and design are subject to change without notice. YOU CAN HELP PROTECT THE ENVIRONMENT Please remember to respect the local regulations:... -
Page 12: Fusion Marine Accessories
FUSION MARINE ACCESSORIES MARINE DOCK FOR iPod MARINE WIRED REMOTE MS-DKIP MS-WR600 Connect a Marine Dock The Marine Wired Remote for iPod (MS-DKIP) to Control extends the provide an integrated capabilities of our Stereo housing for your iPod or by enabling local control... - Page 13 FUSION Electronics New Zealand Ph: +64 9 369 2900 FUSION Electronics Australia Ph: +61 1300 736 012 FUSION Electronics Europe Ph: +44 845 299 7586 FUSION Electronics USA Ph: +1 623 580 9000...
