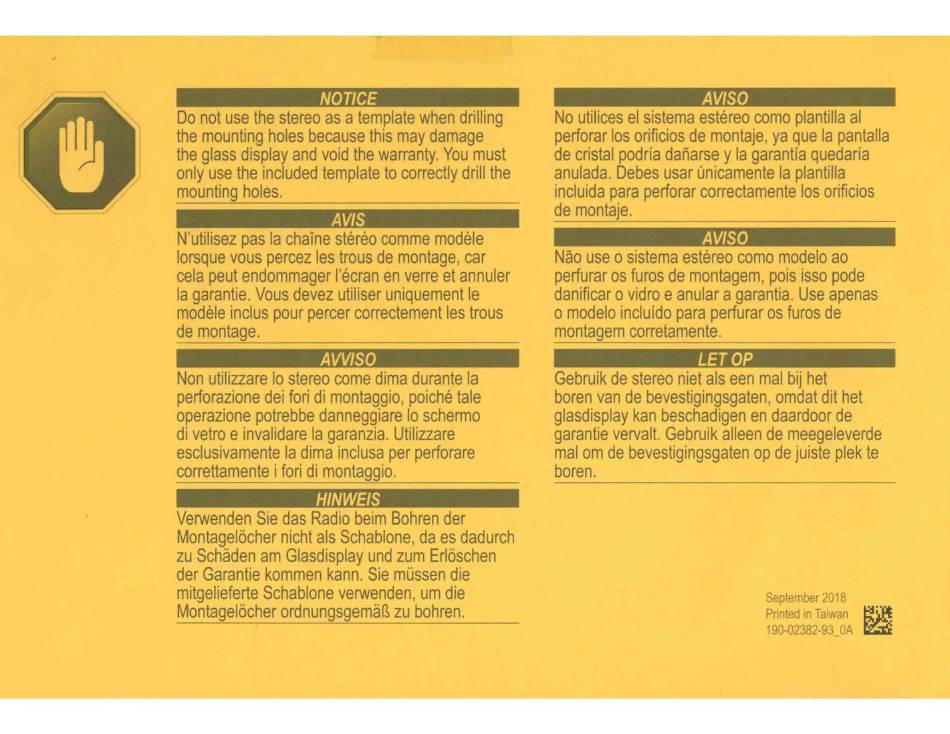

NOTICE
Do not use the stereo as a template when drilling
the mounting holes because this may damage
the glass display and void the
warranty.
You must
only use the included template to correctly drill the
mounting
holes.
AVIS
N'utilisez pas la cha1ne stereo comme modele
lorsque vous percez les trous de
montage,
car
cela peut endommager l'ecran en verre et annuler
la
garantie.
Vous devez utiliser uniquement le
modele inclus pour percer correctement les trous
de
montage.
AW/SO
Non utilizzare lo stereo come dima durante la
perforazione dei fori di
montaggio,
poiche tale
operazione potrebbe danneggiare lo schermo
di vetro e invalidare la
garanzia.
Utilizzare
esclusivamente la dima inclusa per perforare
correttamente i fori di
montaggio.
HINWEIS
Verwenden Sie das Radio beim Bohren der
Montagelocher nicht als
Schablone,
da es dadurch
zu Schaden am Glasdisplay und zum Erloschen
der Garantie kommen kann. Sie mussen die
mitgelieferte Schablone
verwenden,
um die
Montagelocher ordnungsgemal1 zu
bohren.
AV/SO
No utilices el sistema estereo coma plantilla al
perforar los orificios de
montaje,
ya que la pantalla
de cristal podria danarse y la garantia quedaria
anulada.
Debes usar unicamente la plantilla
incluida para perforar correctamente los orificios
de montaje.
AV/SO
Nao use o sistema estereo como modelo ao
perfurar os furos de
montagem,
pois isso pode
danificar o vidro e anular a
garantia.
Use apenas
o modelo inclufdo para perfurar os furos de
montagem
corretamente.
LET OP
Gebruik de stereo niet als een mal bij het
boren van de
bevestigingsgaten,
omdat dit het
glasdisplay kan beschadigen en daardoor de
garantie vervalt. Gebruik alleen de meegeleverde
mal om de bevestigingsgaten op de juiste plek te
boren.
September 2018
Printed
in
Taiwan
190-02382-93_ 0A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-RA210KSPG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

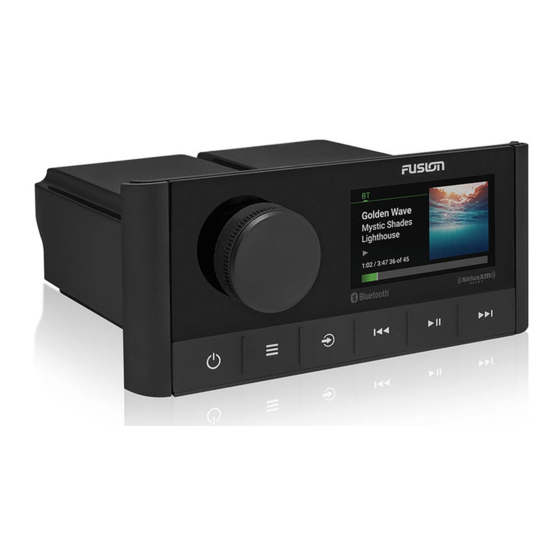

Summary of Contents for Fusion MS-RA210KSPG

  • Page 2 FUSION ® MS-RA210 O W N E R ’ S M A N U A L ® ENGLISH F U S I O N E N T E R T A I N M E N T . C O M...
  • Page 3 Garmin ® , ANT ® , FUSION ® , and the Fusion logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Connect IQ ™ , FUSION-Link ™ , and FUSION-Link Lite ™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.
  • Page 4: Table Of Contents

    Connecting to a Garmin® Watch Synchronizing the Source and Zone Volume Levels Connecting to an ARX70 Remote Control DSP Settings FUSION-Link Wireless Remote Control App Configuring the DSP Settings FUSION-Link™ Network Technology Media Player Connection NMEA 2000 Remote Control and Display...
  • Page 6: Getting Started

    Getting Started Button Function • Press to pause or resume media playback. WARNING • AM/FM: See the Important Safety and Product Information guide in the ◦ Press to cycle through the tuning modes (auto, manual, product box for product warnings and other important and presets).
  • Page 7: Enabling Standby Mode

    Configuring the DSP Settings other zone-specific settings (Speaker Zone Settings, page You must download and install the FUSION-Link remote control app on your compatible Apple or Android device before you ®...
  • Page 8: Media Player Connection

    You can control the music playback with the media app on a when connected using USB, you must connect it to the stereo as an Bluetooth device or using the FUSION-Link remote control app auxiliary device (Connecting an (FUSION-Link Wireless Remote Control App, page Auxiliary Device, page Select the BT source.
  • Page 9: Usb Device Compatibility

    USB Device Compatibility Setting the Tuner Region You can use a USB flash drive or the USB cable included with You must select the region you are in to receive AM and FM your media player to connect a media player or mobile device to stations properly.
  • Page 10: Selecting A Category

    If the service is not activated within the hour, go to Select > ACTIVE ALERTS. http://care.siriusxm.com/refresh or contact SiriusXM Listener Select a category. Care by phone at 1-866-635-2349. Managing Alerts Selecting a Category You can manage your saved alerts to select which ones you want to receive.
  • Page 11: Adding Teams To Receive Sportsflash Alerts

    happens, a SportsFlash alert appears, and you can tune to the When the TuneStart feature starts a song from the beginning, a broadcast and hear the play. When the SportsFlash alert ends, progress bar appears and you can control the track using the you can choose to return to the previous channel, or remain same controls as Replay Mode (Using Replay Mode, page...
  • Page 12: Clearing Siriusxm Data

    Advisory Description Resolutions Subscription The radio has detected a change in your SiriusXM • Select any button to clear the message. Updated subscription status. • Go to www.siriusxm.com or call 866-635-2349 with questions about your subscription. Channel Not The channel you requested is not a valid SiriusXM Go to www.siriusxm.com for more information about the SiriusXM channel...
  • Page 13: Speaker Zone Settings

    The first time you open the app on the watch, the watch automatically pairs with and connects to the stereo. If you Select ZONE ENABLED to clear the check box. need to pair to another stereo, in the FUSION-Link Lite app, Disabling the Internal Amplifiers select Settings > Pair new.
  • Page 14: Fusion-Link Wireless Remote Control App

    For best results, you should update the software in all FUSION set up and configure DSP profiles on the stereo.
  • Page 15: Specifications

    Specifications Top Dimensions Weight 350 g (12.4 oz.) Water rating IEC 60529 IPX6 and IPX7 (front of stereo only, when properly installed) IEC 60529 IPX2 (rear of stereo) Operating temperature range From 0 to 50°C (from 32 to 122°F) Storage temperature range From -20 to 70°C (from -4 to 158°F) Input voltage From 10.8 to 16 Vdc...
  • Page 16: Index

    9 Apple devices 4, 9 auxiliary input 2, 3 backlight 1 bass 2 Bluetooth devices 3, 9 brightness 1 DAB 4, 7 device, registration 9 DSP 2 factory settings 8 FM 4, 7 FUSION-Link 9 gain 2 language 7 media player 4 mute 2 NMEA 2000 9 presets 7 product registration 9 radio AM 4 FM 4 SiriusXM 4–7 registering the device 9 remote control 9...
  • Page 17 FUSION SUPPORT New Zealand 09 369 2900 Australia 1300 736 012 Europe +44 (0) 370 850 1244 623 580 9000 Pacific +64 9 369 2900 ® F U S I O N E N T E R T A I N M E N T . C O M...
  • Page 18 When drilling or cutting, always check what is on the opposite side of the surface. You must read all installation instructions before beginning the installation. If you experience difficulty during the installation, contact FUSION Product Support. ® What's In the Box •...
  • Page 19 ® Connect Tuner to left (-) receive SiriusXM stations where available (not included). Speaker zone 1 Gray Connects to a FUSION DAB module to receive DAB right (+) stations where available (not included). Speaker zone 1 Gray/black ANTENNA Connects the stereo to a typical AM/FM antenna.
  • Page 20 2 on the stereo. You can connect an amplifier and subwoofer to any or all of the zones on the stereo. Stereo Supported chartplotter MFD or compatible FUSION NMEA 2000 remote control MS-RA210 Installation Instructions...
  • Page 21 15 cm (5.9 in.) Software Updates On-board, Class D amplifier For best results, you should update the software in all FUSION devices at the time of installation to ensure compatibility. Output music power per channel 4 x 50 W max. 4 Ohm You can update the software using a USB flash drive.
  • Page 29 Printing a Mounting Template NOTICE It is not recommended that you print a mounting template on your own. Use the template that came in the product box. If you do print the template, you must follow these instructions for printing a mounting template precisely. To print large templates, you need large enough paper and printer.
  • Page 30 142 mm (5 in.) Max. Ø 10 mm in.) RA210 Mounting Template 43 mm in.) 52 mm in.) 135 mm (5 in.) October 2019 © 2019 Garmin Ltd. or its subsidiaries Printed in Taiwan 190-02629-04_0A...
