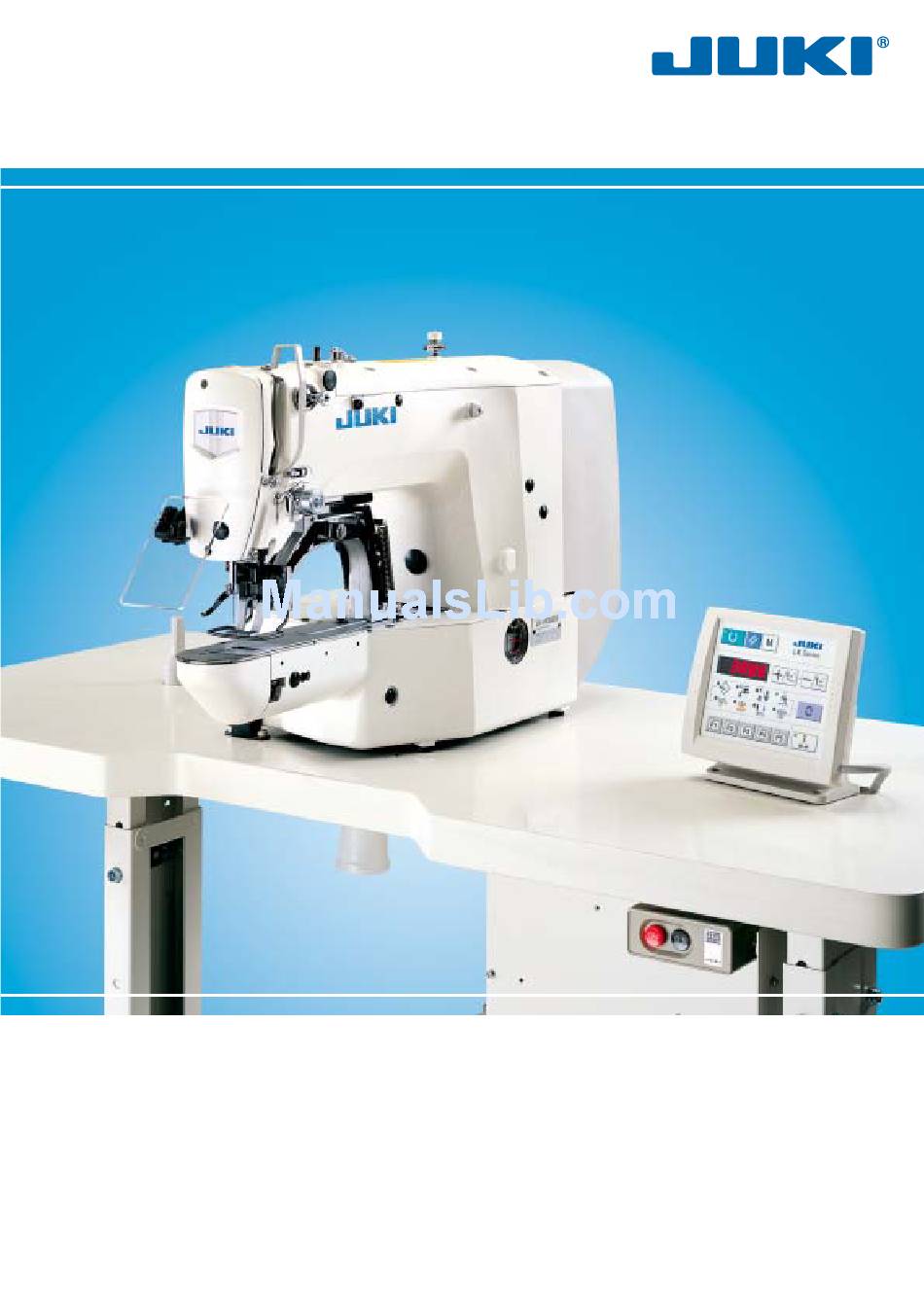

- Page 1 LK-1900A SERIES Computer-controlled, High-speed, Bartacking Machine LK-1900A-SS (Table stand is optionally available.) LK-1900A SERIES The machine is provided with an active tension mechanism which enables the electronic control of "stitching."...
- Page 2 LK-1900A-SS (Table stand is optionally available.) The thread trimming mechanism has been further improved to shorten the length of thread remaining on the wrong side of the material after thread trimming.
- Page 3 The machine is provided as standard with an auto-lifter that uses a new stepping-motor system. It is also possible to change over the stroke of the auto-lifter from a one-step stroke to a double-step stroke, which offers easier positioning of a material on the machine. For the double-step stroke, an intermediate stopping height can be established on the operation panel.
- Page 4 Computer-controlled, High-speed Bartacking Machine for Eyelet Buttonholes LK-1901A The machine ensures high-quality bartacks on eyelet buttonholes. The machine is provided with a material-drawing mechanism which draws the right and left parallel portions of an eyelet buttonhole near to one another. The machine performs bartacking with the right and left parallel portions of the eyelet buttonhole drawn near to one another after the buttonhole is clamped under the work clamp foot, thereby finishing...
-
Page 5: Standard Panel
The operator can easily check the shape of the pattern displayed on the wide liquid crystal panel. Make minor adjustments to data quickly and efficiently. Overall use is easier than ever before. LK-1900A-SS/IP-410B (Table stand is optionally available.) The color LCD unit displays sewing data such as stitch shape, needle thread tension, enlargement/reduction ratio, maximum sewing speed and the number of stitches at a glance. -
Page 6: Table Of The Standard Patterns
■ TABLE OF THE STANDARD PATTERNS Sewing size (Note 2) Sewing size (Note 2) No. of No. of (mm) (mm) Stitch diagram work Stitch diagram work Length- Cross- Length- Cross- clamp clamp wise wise wise wise foot foot ✽ ✽ ✽... - Page 7 Sewing size Sewing size (Note 2) (Note 2) No. of No. of (mm) (mm) Stitch diagram work Stitch diagram work Length- Cross- Length- Cross- clamp clamp wise wise wise wise foot foot ø12 ø8...
-
Page 8: Table Of The Work Clamp Foot
■ TABLE OF THE WORK CLAMP FOOT No. of work clamp foot 13518659 (asm.) 13548557 (asm.) 13542964 (asm.) 13548151 (asm.) 13542451 (asm.) Work clamp foot 14116107 14116404 14116800 14116305 14116206 13548003 13554803 14116602 (without knurl) (without knurl) Feed plate 27.4 11.4 37.3 21.2... - Page 9 ■ OPTION Simple work clamp kit Simple work clamp kit Simple work clamp kit for the LK-1900A Series Conventionally, the front plate has to be removed to change the work clamp. With the new work clamp kit, the work clamp can be changed without removing the plate. The lever for lifting the work clamp can be independently slid back and forth.
-
Page 10: Table Of The Optional Parts
LK1901ASS000 Application Code Work clamp foot Code Attachment Code Standard Standard Not provided ●Belt-loop attaching LK1902A S000 Application Code Work clamp foot Code Attachment Code Standard Standard Not provided For heavy-weight materials ●To order, please contact your nearest JUKI distributor. -
Page 11: Specifications
EEP-ROM, EP-ROM Bobbin thread counter Provided as standard (up/down method) Lubrication Hook: minute-quantity lubrication Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Sewing machine motor 450W compact AC servomotor (direct-drive system) Power consumption 320W Weight Machine head (include motor) 42kg, Control box 16.5kg... - Page 12 3430 4909 MARKETING & SALES H.Q. http://www.juki.com ✽ Specifications and appearance are subject to change without prior notice for improvement. ✽ Read the instruction manual before putting the machine into service to ensure safety. ✽ This catalogue prints with environment-friendly soy ink on recycle paper.
