Part Names

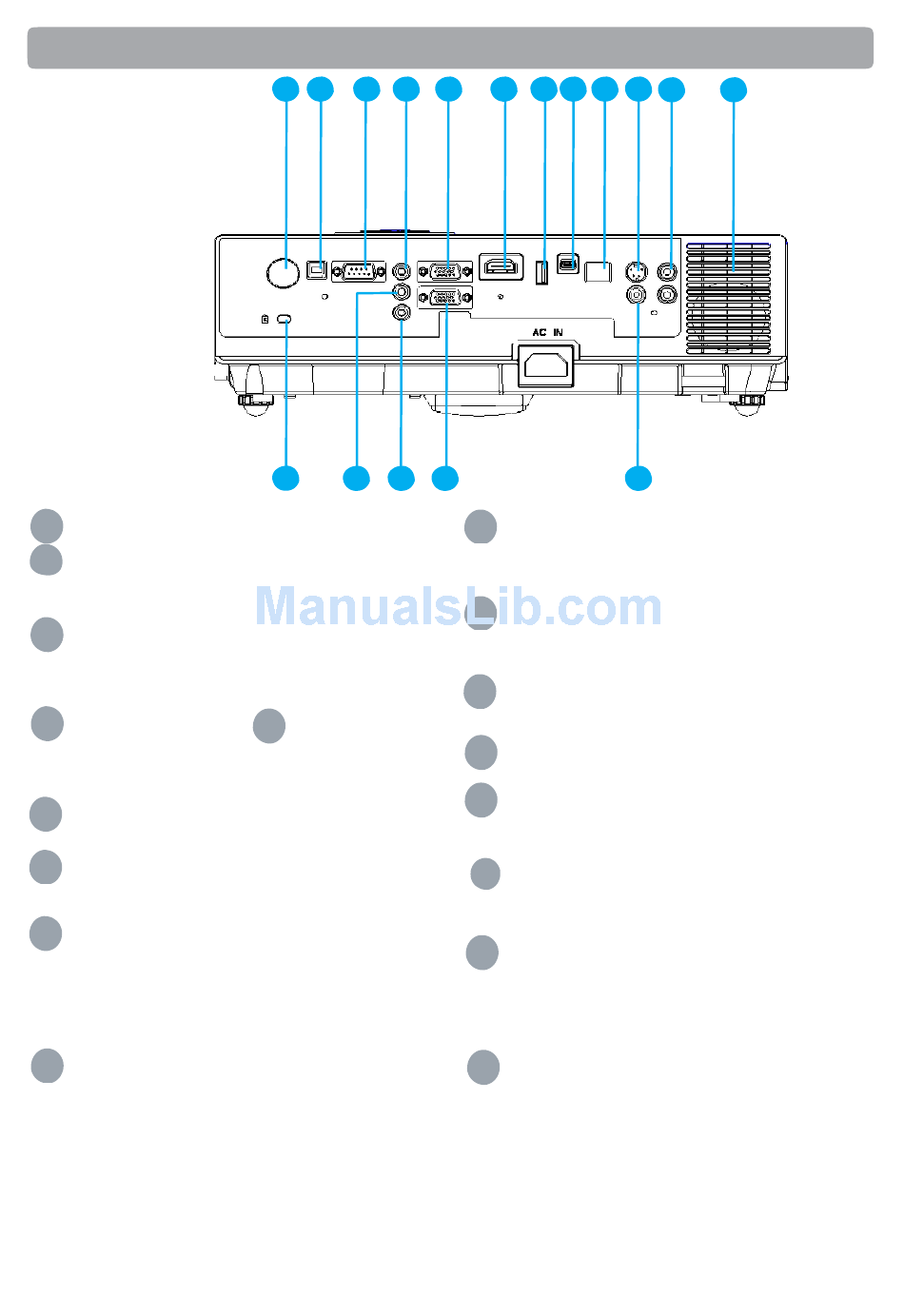

Rear

A REAR IR RECEIVER
B
USB Port (USB-B Type)
Connect a USB cable to a computer to
control computer Interactive functions.
C
RS-232C
Serial data port for controlling the projector
with a computer or other RS-232 control
device.
D
AUDIO IN 1 &
Mini jack port corresponds to computer
input. (RGB IN 1→AUDIO IN 1, RGB IN
2→AUDIO IN 2)
E
RGB IN 1
Input analog RGB signal from a computer.
F
HDMI
I n p u t d i g i t a l H D M I s i g n a l f r o m a
Computer & Video source.
G
USB Port (USB-A Type)
1.Supports USB Storage Device and USB
compatible hard disks.
2.Supports wireless (WiFi) USB dongle
for wirelessly projecting the computer‟s
image.
H
USB Display Port (Mini-USB
Type)
Support USB mini-B Connects from the
computer ‟s USB Port by using the USB
mini-B type to A type cable. It also can
access the internal memory from projector
to perform the data.
A B C D
Q P O
P
AUDIO IN 2
F G H I
E
N
I LAN
Please see page76 Network Control
Application for details.
J
S-VIDEO
Input the S-Video signal from a video
source.
K
AUDIO IN 3, R / L
RCA type corresponds to video input.
L
SPEAKER
M
VIDEO
To composite the video signal from a video
source.
N
RGB IN 2/OUT
Input analog RGB signal from a computer
or connect an external monitor to this
connection to view the "RGB IN" input.
O
AUDIO OUT
This jack outputs the audio signal from
computer& audio signal to external audio
equipment.
Q
Slot for Kensington Micro Saver
Security System
Built-in Security Slot.
This security slot supports the Micro
Saver® Security System. Micro Saver®
is a registered trademark of Kensington
Microware Inc. The logo is trademarked and
owned by Kensington Microware Inc.
9
J
K L
M
