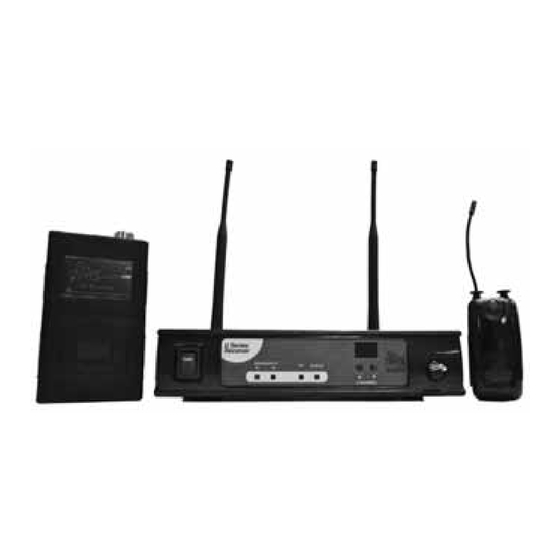

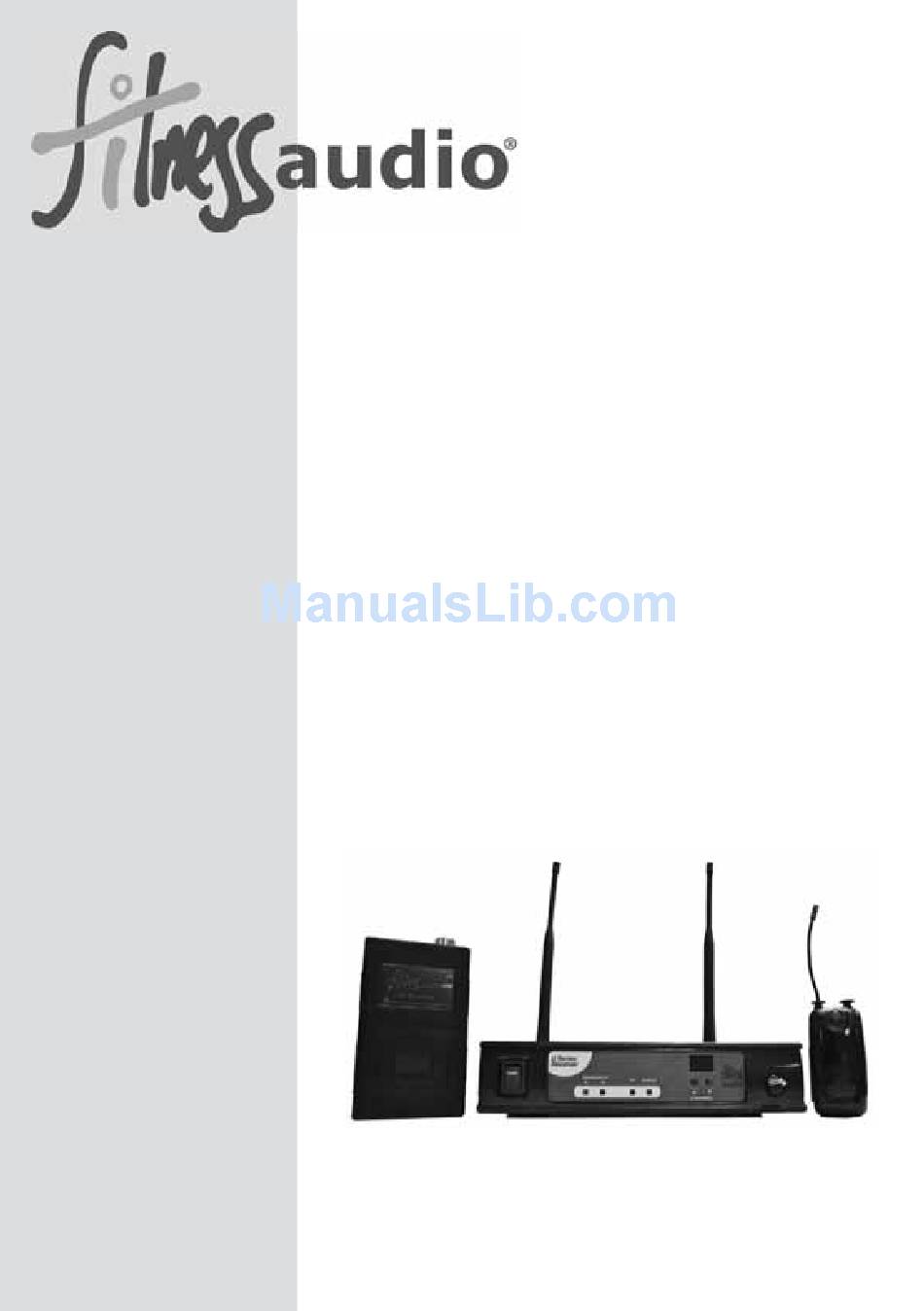

- Page 1 Wireless Microphone System Operating Manual OPERATING MANUAL FITNESS AUDIO U Series Wireless Mic System SDR-5716 Receiver SM-716 / MT-U8 Transmitter...
-
Page 2: Front And Rear Panel Controls
Wireless Microphone System Operating Manual 1. INTRODUCTION Congratulations on your purchase of the state-of-the-art Fitness Audio PLL Synthesized 16 channel frequency agile UHF high band professional wireless system. Please read this operating manual thoroughly in order to familiarize yourself with the controls before using them. -
Page 3: Receiver Installation
Rack Mounting the Receiver The Fitness Audio SDR5716 Receiver is a 19” half-rack mount design and is supplied with a specially designed 19” rack mount adapter so can be bolted into equipment cabinets. Assemble as shown in Fig 3. We have also supplied you with a pair of antenna extension cables so that the two antennas can be mounted into the holes on the rack ears out front in the air and not trapped inside a steel box. - Page 4 Wireless Microphone System Operating Manual A double receiver rack mount kit is available as an optional extra if required (Fig. 4). Positioning the Receiver For best operation, the receiver should be at least 1m above the ground and at least 1m away from a wall or metal surface to minimize RF reflections.
- Page 5 Wireless Microphone System Operating Manual A range of transmitter Pouchbelts in different styles and colours which can be worn un- der or over your clothes are available for many different users, including fitness instruc- tors, actors, musicians and professional presenters. For more details please consult your FA System supplier or visit our website: http://www.fitnessaudio.com.au/ Pouchbelts shown L - R: Standard, Hipster, Zipster, Grey Zipster, Beige Theater belt.
- Page 6 Wireless Microphone System Operating Manual There will be different, non-conflicting channels in other frequency groups supplied around the world so please check with your dealer or national supplier for this informa- tion. Fit an Alkaline AAA battery into the battery compartment, re-fit the lid and push the sealed on/off button.
- Page 7 Chiayo handheld microphones such as the SQ-1016 pictured below. For more information please consult your Fitness Audio supplier. Please note that you can only use one mic transmitter at a time with the FA Series Receivers so make sure your other transmitter is turned off...
-
Page 8: Warranty Information
Wireless Microphone System Operating Manual The Fitness Audio SDR5716 Receiver, SM716 and MT-U8 Transmitters are covered by a minimum 12 month parts and labour warranty against manufac- turer’s defects from the date of purchase by the owner. Longer warranties may apply to the SM716 in some countries.
