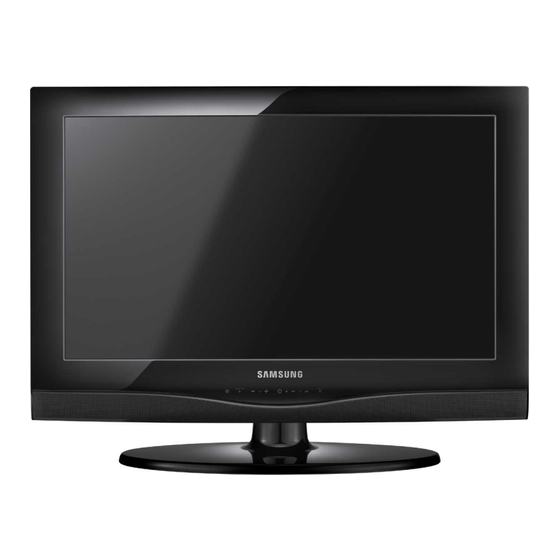

Samsung LCD TV User Manual

3 series
Hide thumbs Also See for LCD TV:

Advertisement

Quick Links

Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
Comuníquese con SAMSUNG WORLDWIDE
Si desea formular alguna pregunta o comentario en relación con los productos de Samsung, comuníquese con el centro de
atención al cliente de SAMSUNG.
Country
Customer Care Center
Web Site
CANADA
1-800-SAMSUNG(726-7864)
www.samsung.com
U.S.A
1-800-SAMSUNG(726-7864)
www.samsung.com
Address
Samsung Electronics Canada Inc., Customer
Service 55 Standish Court Mississauga,
Ontario L5R 4B2 Canada
Samsung Electronique Canada Inc.,
Service à la Clientèle 55 Standish Court
Mississauga, Ontario L5R 4B2 Canada
Samsung Electronics America, Inc.
105 Challenger Road
Ridgefield Park, NJ 07660-0511
BN68-02582A-04
LCD TV

user manual

imagine the possibilities
Thank you for purchasing this Samsung
product. To receive more complete service,
please register your product at
www.samsung.com/register
Model
Serial No.

Advertisement

Table of Contents
loading

Summary of Contents for Samsung LCD TV

  • Page 1: User Manual

    If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Comuníquese con SAMSUNG WORLDWIDE Si desea formular alguna pregunta o comentario en relación con los productos de Samsung, comuníquese con el centro de atención al cliente de SAMSUNG.
  • Page 2: Securing The Installation Space

    United States, for the warranty period originally specified, and to the Original Purchaser only. The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from the Service Center is the responsibility of the purchaser.
  • Page 3: Table Of Contents

    List of Features ............4 Media Play .............. 21 Accessories .............. 4 Connecting a USB Device Installing the LCD TV Stand ........4 Other Information Viewing the Control Panel ......... 5 Viewing the Remote Control ........6 Installing the Wall Mount .........
  • Page 4: Getting Started

    : You can check picture and sound operation. (P. 20) Accessories ✎ Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer. ✎ The items' colors and shapes may vary depending on the models.
  • Page 5: Viewing The Control Panel

    Viewing the Control Panel ✎ The product color and shape may vary depending on the model. Remote control sensor Power Indicator Speakers P (Power) Turns the TV on or off. Remote control sensor Aim the remote control towards this spot on the TV. Toggles between all the available input sources.
  • Page 6: Viewing The Remote Control

    Getting Started Viewing the Remote Control Turns the TV on and off. Display and select the available video sources. (P. 10) Press to directly access to channels. Return to the previous channel. Press to select additional channels (digital) being broadcast by the same station.
  • Page 7: Connecting To An Antenna

    Connecting to an Antenna When the TV is initially powered on, basic settings proceed automatically. ✎ Connecting the power cord and antenna. VHF/UHF Antenna Cable ANT OUT Power Input R-AUDIO-L Plug & Play (Initial Setup) When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the POWERP button.
  • Page 8: Connections

    Connections Connections Connecting to an AV Device Using an hDMI / DVI Cable: hD connection (up to 1080p) We recommend using the HDMI connection for the best quality HD picture. Available devices: DVD, Blu-ray player, HD cable box, HD satellite receiver (STB). BD/DVD player/ Device HD cable/sat box...
  • Page 9: Connecting To An Audio Device

    Connecting to an Audio Device Using an Optical (Digital) or Audio (Analog) Cable Connection Available devices: Digital Audio System, Amplifier, Home Theater Digital Audio System OPTICAL Headphones R-AUDIO-L ✎ DIgITAl AUDIO OUT (OPTICAl) When a Digital Audio System is connected to the DIgITAl AUDIO OUT (OPTICAl) jack, decrease the volume of both the TV and the system.
  • Page 10: Changing The Input Source

    Connections Display Modes (D-sub and hDMI/DVI Input) Optimal resolution is 1360x768@60Hz. Mode Resolution horizontal Frequency (khz) Vertical Frequency (hz) Pixel Clock Frequency (Mhz) sync Polarity (h/V) 640 x 350 31.469 70.086 25.175 + / - 720 x 400 31.469 70.087 28.322 - / + 640 x 480...
  • Page 11: Basic Features

    Basic Features How to Navigate Menus Channel Menu Before using the TV, follow the steps below to learn how to ¦ seeing Channels navigate the menu and select and adjust different functions. Channel list MEDIA.P m → Channel → Channel list → EnTERE MEnU POWER Add, delete or set Favorite channels and use...
  • Page 12: Using Favorite Channels

    Basic Features MEDIA.P Using Favorite Channels how to stop Auto Programming ¦ 1. Press the EnTERE button. MEnU m → Channel → Channel list → EnTERE 2. A message will ask stop Auto Program? Select Yes by pressing the ◄ or ► button. Add to Favorite / Delete from Favorite 3.
  • Page 13: Picture Menu

    Fine Tune Timer Viewing : You can set a desired channel to be ■ displayed automatically at the set time; even when you (analog channels only) are watching another channel. Set the current time first to use this function.(P. 17) If the reception is clear, you do not have to fine tune the channel, as this is done automatically during the search and 1.
  • Page 14: Setting Up The Tv With Your Pc

    → Picture → Auto Adjustment → MEnU EnTERE (available in standard / Movie mode) Adjust frequency values/positions and fine tune the settings Compared to previous models, new Samsung TVs have a automatically. more precise picture. ✎ ✎ Not available when connecting through HDMI/DVI PC mode, you can only make changes to gamma cable.
  • Page 15: Picture Options

    Picture Options After selecting screen Fit in HDMI (1080i/1080p) or Component (1080i/1080p) mode, you may need to center the picture: m → Picture → Picture Options → MEnU EnTERE 1. Press the ◄ or ► button to select Position. 2. Press the EnTERE button. ✎...
  • Page 16: Sound Menu

    Basic Features Sound Menu Multi-Track sound (MTs) (analog channels only) Changing the Preset sound Mode ¦ Mono : Choose for channels that are ■ broadcasting in mono or if you are m → sound → Mode → EnTERE MEnU having difficulty receiving a stereo signal. : Choose for channels that are stereo ■...
  • Page 17: Setup Menu

    Setup Menu setting the On/Off Timer ¦ m → setup → Time → Timer 1 → MEnU ¦ setting the Time EnTERE m → setup → Time → EnTERE MEnU Timer 1 / Timer 2 / Timer 3 : Three different on / off ■...
  • Page 18: Locking Programs

    Basic Features locking Programs MPAA Rating : You can block movies depending on ¦ ■ their MPAA rating. The Motion Picture Association of America(MPAA) has implemented a rating system that m → setup → V-Chip → EnTERE MEnU provides parents or guardians with advance information on which films are appropriate for children.
  • Page 19: Other Features Media.p

    Even if you set the On-screen display to your desired Digital Caption Options : (digital channels only) ■ language, the Downloadable U.s. Rating menu will size: Options include Default, Small, Standard and appear in English only. Large. The default is Standard. The rating will automatically block certain categories Font style: Options include Default and Styles 0 to 7.
  • Page 20: Support Menu

    Yes. There may be a After connecting the game console, set game Mode problem with the TV. Contact Samsung’s Call Center for to On. Unfortunately, you may notice reduced picture assistance (1-800-SAMSUNG). quality.
  • Page 21: Advanced Features

    Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. 03-No More Sad Songs.mp3 00:03:25 04-Interference-gold.mp3 00:03:25 SAMSUNG is not responsible for any data file damage or data loss. 05-marketa_irglova-The_hill.mp3 00:03:25 06-I Will Carry You.mp3 00:03:25 Please connect directly to the port of your TV.
  • Page 22 Advanced Features Do not disconnect the USB device while it is loading. MSC supports MP3 and JPEG files, and the PTP device supports JPEG files only. MTP (Media Transfer Protocol) is not supported. The playing duration of an mp3 file may be displayed as “00:00:00” if its playing time information is not found at the start of the file.
  • Page 23 Music Photo DSC_0558.JPG Using the MP3 list 580 440 78.0KB File..jpg File..jpg File..jpg 03 / 14 Folder icon Photo Music File..jpg File..jpg File..jpg File..jpg File..jpg Music list icon 307.2MB/973.7MB 307.2MB/973.7MB 307.2MB/973.7MB File..jpg File..jpg File..jpg File..jpg File..jpg Move to the previous folder stage icon ✎...
  • Page 24 03-No More Sad Songs.mp3 00:03:25 04-Interference-gold.mp3 00:03:25 05-marketa_irglova-The_hill.mp3 00:03:25 06-I Will Carry You.mp3 00:03:25 07-marketa_irglova.mp3 00:03:25 Advanced Features 307.2MB/973.7MB 08-Super World.mp3 00:03:25 setup Using the setup Menu slide show speed : Select to control the slide show speed. You can ■...
  • Page 25: Other Information

    Do not fasten the screws too strongly; this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
  • Page 26: Securing The Tv To The Wall

    Anti-theft Kensington Lock The Kensington Lock is not supplied by Samsung. It is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for additional information on proper use.
  • Page 27: Troubleshooting

    Troubleshooting If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, visit samsung.com, then click on Support, or call Samsung customer service at 1-800-SAMSUNG. Issues solutions and Explanations...
  • Page 28 Other Information solutions and Explanations Issues No Picture, No Video The TV won’t turn on. • Make sure the AC power cord is securely plugged in to the wall outlet and the TV. • Make sure the wall outlet is working. •...
  • Page 29 The cable/set top box remote control • Program the Cable/Sat remote control to operate the TV. Refer to the Cable/Sat user manual doesn’t turn the TV on or off, or adjust for SAMSUNG TV code. the volume. A “Mode not supported” message •...
  • Page 30: Specifications

    Other Information Specifications Display Resolution 1360 x768 Environmental Considerations 50°F to 104°F (10°C to 40°C) Operating Temperature 10% to 80%, non-condensing Operating Humidity Storage Temperature -4°F to 113°F (-20°C to 45°C ) Storage Humidity 5% to 95%, non-condensing Model Name LN19C350 LN22C350 19 inches...
  • Page 31: Dimensions

    NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors. © 2010 Samsung Electronics America, Inc English...
  • Page 32: Index

    Other Information Index Antenna Game Mode Screen Fit Sleep Timer AUDIO OUT Auto Adjustment Slide Show Auto Program Software Upgrade Source List HDMI Speaker Select Home theater SRS TruSurround HD Balance Standby mode Language Cables License Timer Caption Clear Scrambled Channel Clear Voice Media Play Component...
  • Page 33 This page is intention- ally left blank.
