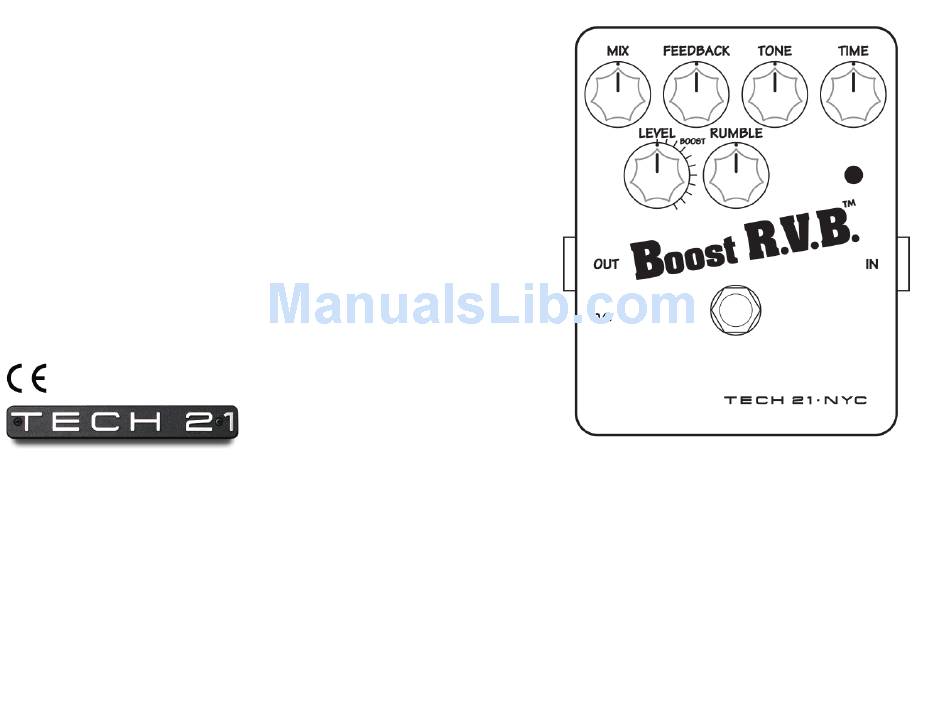

Tech 21 Boost R.V.B. Quick Manual

Reverb emulator pedal

Download this manual

Enlarged version

POWER REQUIREMENTS

Utilizes standard 9V alkaline battery (not included). NOTE: Input jack activates battery.To conserve

energy, unplug when not in use. Power Consumption: approx. 50mA, for battery life of approximately

10 hours.

* USE DC POWER SUPPLY ONLY!

DC Power Supply Specifications:

-9V DC regulated or unregulated, 100mA minimum;

-2.1mm female plug, center negative (-).

Optional factory power supply is available: Tech 21 Model

* Attempting to repair unit is not recommended and may void warranty.

* Missing or altered serial numbers automatically void warranty. For your own

protection: be sure serial number labels on the unit's back plate and exterior

box are intact, and return your warranty registration card.

ONE YEAR LIMITED WARRANTY. PROOF OF PURCHASE REQUIRED. Manufacturer war-

rants unit to be free from defects in materials and workmanship for one (1) year from date of purchase

to the original purchaser and is not transferable.This warranty does not include damage resulting from

accident, misuse, abuse, alteration, or incorrect current or voltage. If unit becomes defective within war-

ranty period,Tech 21 will repair or replace it free of charge. After expiration,Tech 21 will repair defec-

tive unit for a fee.

ALL REPAIRS for residents of U.S. and Canada: Call Tech 21 for Return Authorization Number.

Manufacturer will not accept packages without prior authorization, pre-paid freight (UPS preferred) and

proper insurance.

FOR PERSONAL ASSISTANCE & SERVICE:

Contact Tech 21 weekdays from 10:00 AM to 5:00 PM, EST.

MADE IN THE U.S.A.

T: 973-777-6996 • F: 973-777-9899

E: info@tech21nyc.com • www.tech21nyc.com

Failure to do so may damage the unit and void warranty.

DC2.

WARNINGS:

Need help?

Do you have a question about the Boost R.V.B. and is the answer not in the manual?

Page 1 If unit becomes defective within war- ranty period,Tech 21 will repair or replace it free of charge. After expiration,Tech 21 will repair defec- tive unit for a fee.
Page 2 As with each Tech 21 product, the controls are designed to give you the flexibility to vide a maximum 50/50 mix ratio via a level control, the Tech 21 Mix control offers a sweep from obtain your desired sound. It is our hope that the Boost R.V.B. will be a useful tool for 100% dry to 100% wet.This gives you more flexibility when you want to run through a parallel...
Page 3 (Tech 21 Model #DC2 or equivalent), as it is environmentally-friendlier, will ensure operation, save money on batteries, and relieve stress trying to remember when you last changed...
