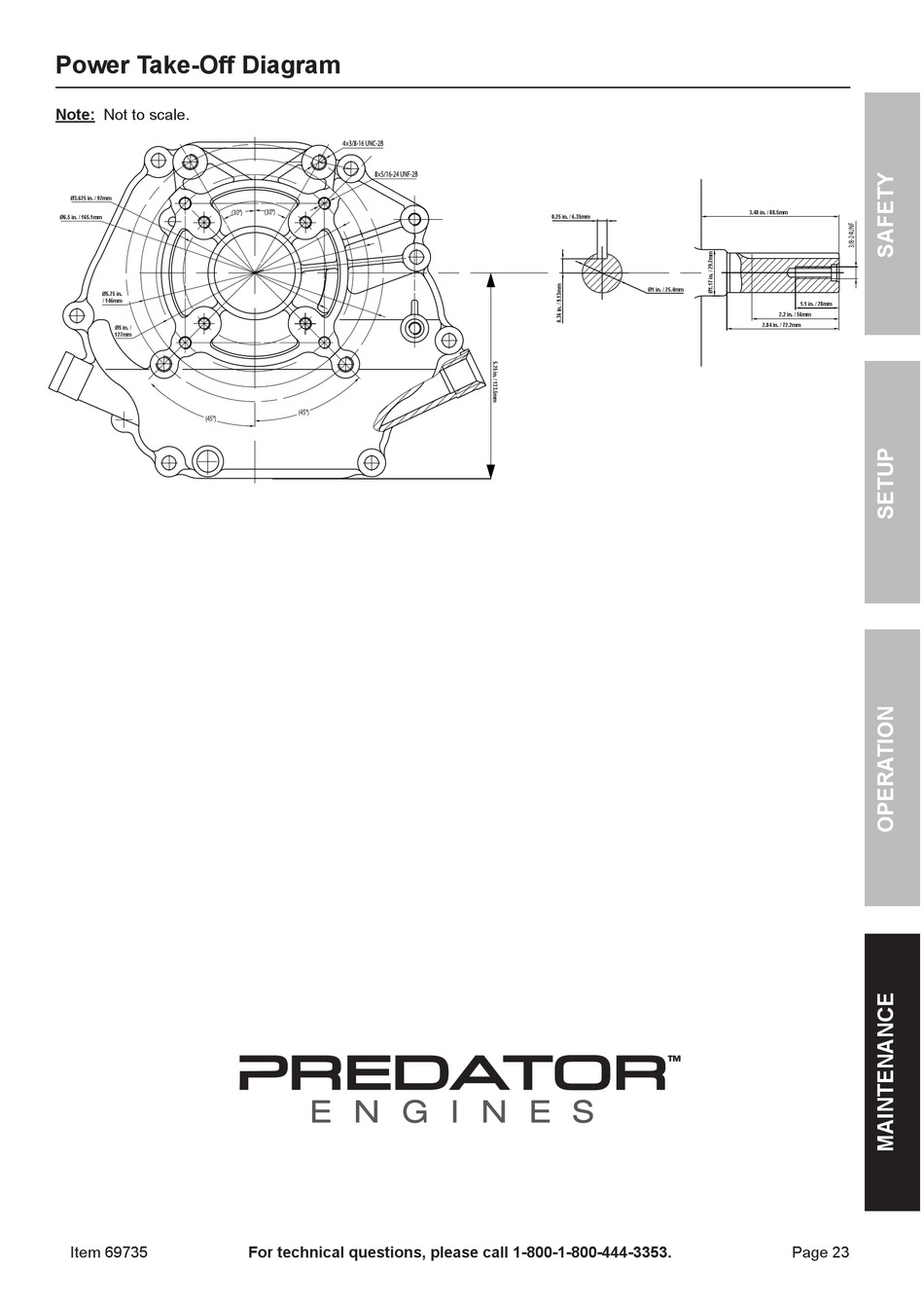

power Take-Off Diagram
Note: Not to scale.
Ø3.625 in. / 92mm
(30°)
(30°)
3.48 in. / 88.5mm
0.25 in. / 6.35mm
Ø6.5 in. / 165.1mm
Ø1 in. / 25.4mm
Ø5.75 in.
/ 146mm
1.1 in. / 28mm
2.2 in. / 56mm
2.84 in. / 72.2mm
Ø5 in. /
127mm
(45°)
(45°)
Item 69735
For technical questions, please call 1-800-1-800-444-3353.
Page 23
