- Page 1 User’s Guide Please visit Johnson Amplification on the World Wide Web at http://www.johnson-amp.com...
- Page 2 8760 S. Sandy Parkway Sandy, Utah 84070, USA Tel: (801) 566-8800 Fax: (801) 566-7005 Effective October 15, 1998 European Contact: Your local Johnson Amplification Sales and Service Office, or International Sales Office 8760 S. Sandy Parkway Sandy, Utah 84070, USA...

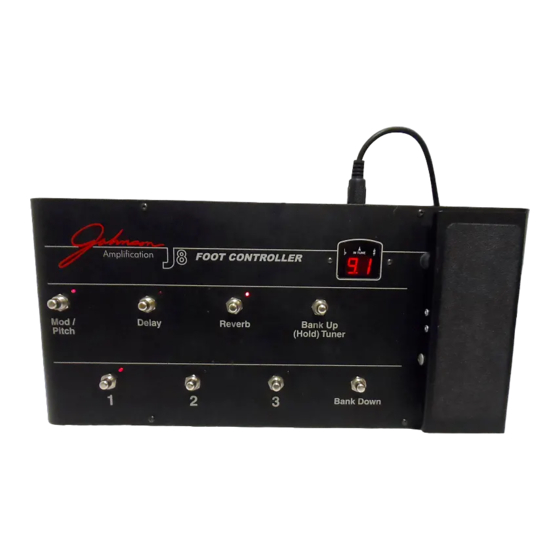

- Page 3 You are the proud owner of the Johnson J8 Foot Controller. The J8 is your key to getting the most out of your Johnson amplifier as it offers real time control over your sound. The J8 includes 8 footswitches, a numeric display, tuning LEDs, and an expression pedal, all housed in a rugged steel chassis.
-
Page 4: Front View
4. LED Display - This display will indicate the currently active Bank and Preset on the Johnson Amplifier. In tuner mode, the display will show the note being played. 5. Tuner LEDs - These LEDs will indicate whether the note being played is sharp, flat, or in tune when the tuner mode is engaged. -
Page 5: Rear Panel
Rear Panel The rear panel of the J8 has one 5 pin DIN jack. This jack is used to connect the J8 to the Johnson amp with a 5 pin DIN cable. About the J8 Connections Connecting the J8 to your Johnson Amp is very easy. Follow these steps when connecting the J8 to the amplifier for the first time: 1. -
Page 6: Expression Pedal
Marquis and Mirage Series amps, the expression pedal can be used as a volume pedal or a wah wah pedal. In normal operation of these amps, the J8 will be a volume pedal. To change the function to a wah, simply rock the pedal all the way forward (toe down) and apply pressure on the toe. - Page 7 Amplification neither assumes nor authorizes any person to assume any obligation or liability in connection with the sale of this product. In no event shall Johnson Amplification or its dealers be liable for special consequential damages or from any delay in the performance of this warranty due to causes beyond their control.
- Page 8 Johnson, Marquis, Mirage, and Millennium are trademarks of the Harman Music Group Incorporated Copyright 1999 the Harman Music Group Printed in the U.S.A. 5/99 Manufactured in the U.S.A. 18-6311-B Please visit Johnson Amplification on the World Wide Web at: http://www.johnson-amp.com...
