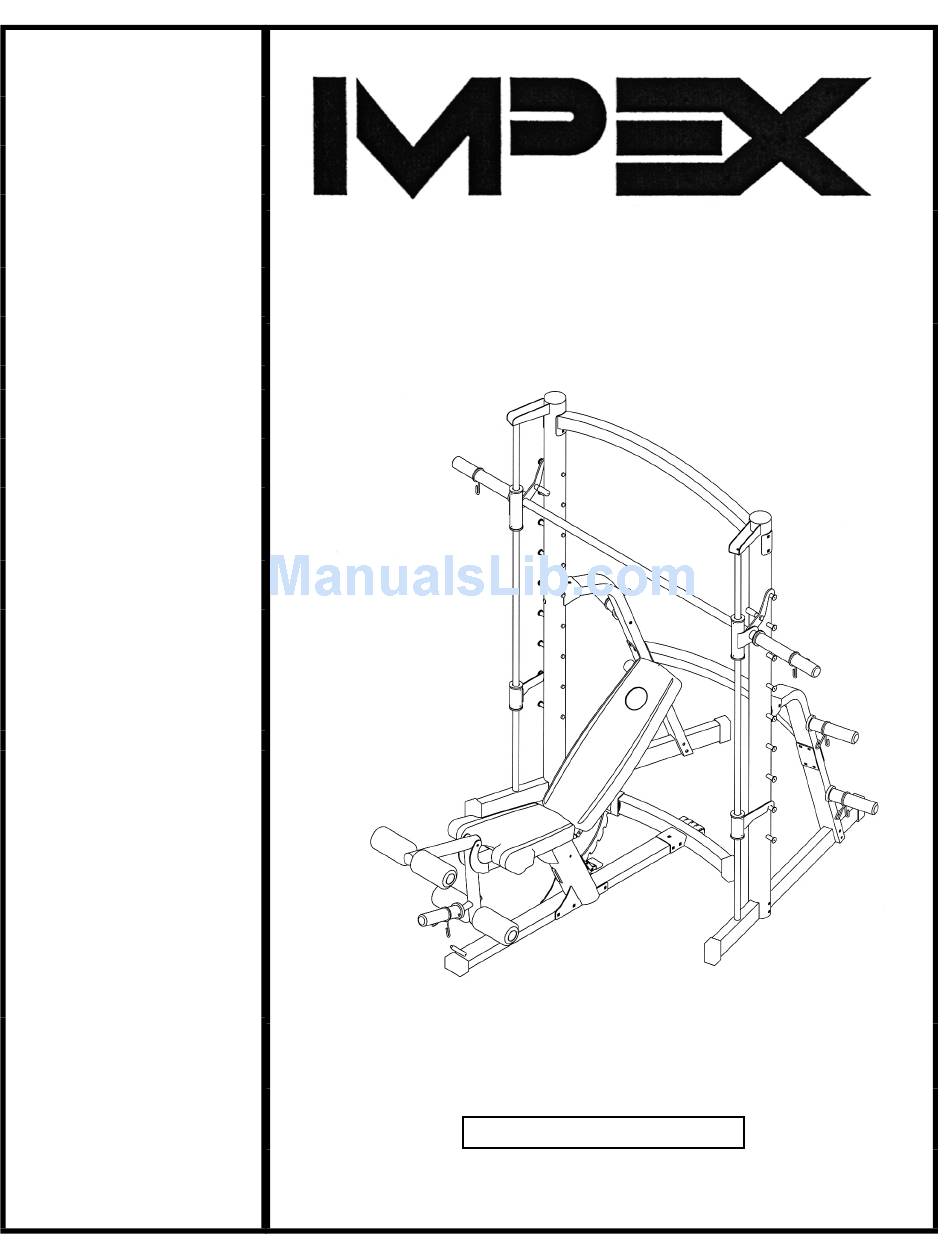

Impex MARCY SM-1000 Owner's Manual

Marcy smith machine

Advertisement

Quick Links

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
SM-1000
Retain This
Manual for
Reference
08-03-09
OWNER'S
MANUAL
SMITH MACHINE
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
MARCY
SM-1000
®
IMPEX
INC.

Advertisement

Table of Contents
loading

Summary of Contents for Impex MARCY SM-1000

  • Page 1 NOTE: Please read all instructions carefully before using this product MARCY Table of Contents SMITH MACHINE Safety Notice SM-1000 Hardware Identifier Assembly Instruction Parts List Warranty Ordering Parts Model SM-1000 Retain This Manual for Reference 08-03-09 OWNER'S MANUAL ® IMPEX INC.
  • Page 2: Table Of Contents

    BENCH EXPLODED DIAGRAM...............……. 19 BENCH PARTS LIST……………………………………………………………….. 20 WARRANTY....................… 21 ORDERING PARTS..................21 BEFORE YOU BEGIN Thank you for selecting the MARCY SMITH MACHINE SM-1000 by ® IMPEX INC. For your safety and benefit, read this manual carefully before using the machine.
  • Page 3: Important Safety Notices

    IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1.
  • Page 4: Warning Label Placement

    WARNING LABEL PLACEMENT The warning label shown here has been placed on the back of Rear Support. If the label is missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the label in the location shown.
  • Page 5: Smith Machine Hardware Pack

    SMITH MACHINE HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
  • Page 6: Smith Machine Assembly Instructions

    CAGE MACHINE HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size. SMITH MACHINE ASSEMBLY INSTRUCTION Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches.
  • Page 7 NOTE: It is strongly recommended that two or more people assemble this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Note: Do not tighten the Nuts and Bolts until instructed to do so. B.) Attach the Left Rear Support (#5) onto a Base Frame (#3). Secure it with two M10 x 3 ½”...
  • Page 8 B.) Attach the Left Upright Beam (#1) to the Left Rear Support (#5) and the left Base Frame (#3). C.) Secure it to the Base Frame with two M10 x 4” Allen Bolts (#31), four Ø ¾” Washers (#37), and two M10 Aircraft Nuts (#38). D.) Secure it to the Left Rear Support with one M10 x 4”...
  • Page 9 STEP 3 (See Diagram 3) A.) Place the Lifting Sleeve (#8) in between the two Safety Stop Frames (#14). Align the...
  • Page 10 holes; insert the Weight Bar (#13) from outside of one Safety Stop Frame through the Lifting Sleeve to the other Safety Stop Frame on the other side. B.) Turn and attach the two safety catch hooks on the Lifting Sleeve (#8) to the selected pegs on the Left and Right Upright Beams (#1 &...
  • Page 12: Smith Machine Parts List

    SMITH MACHINE PART LIST KEY NO. DESCRIPTION Q’ty Left Upright Beam Right Upright Beam Base Frame Top Beam Left Rear Support Right Rear Support Cross Brace Lifting Sleeve Lower Left Safety Stop Frame Lower Right Safety Stop Frame Guide Rod Weight Post Weight Bar Safety Stop Frame...
  • Page 13: Bench Hardware Pack

    BENCH HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
  • Page 14 BENCH HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
  • Page 15: Bench Assembly Instructions

    BENCH ASSEMBLY INSTRUCTION STEP 1 (See Diagram 1) A.) Attach the Bench Base Frame (#6) to the Rear Stabilizer (#7). Secure the side-holes with two M10 x 4” Carriage Bolts (#41), two Ø ¾” Washers (#31), and two M10 Aircraft Nuts (#33). Secure the top hole with one M10 x 5/8” Allen Bolt (#36) and one Ø...
  • Page 16 STEP 2 (See Diagram 2) A.) Attach the Main Seat Support (#1) to the Bench Base Frame (#6). Secure it with three M10 x 4” Carriage Bolts (#41), three Ø ¾” Washers (#31), and three M10 Aircraft Nuts (#33). B.) Attach the Front & Rear Seat Bracket (#4 & #5) to Main Seat Support. Secure each Bracket with one M10 x 4”...
  • Page 17 STEP 3 (See Diagram 3) A.) Align the bracket on the Backrest Adjustment Support (#8) in between the two Backrest Supports (#3). Secure it with four M8 x 1 5/8” Allen Bolts (#34), eight Ø 5/8” Washers (#30), and four M8 Aircraft Nuts (#32). Do not tighten the Nuts and Bolts yet. B.) Insert the Backrest Adjustment Support into the opening on the Main Seat Support (#1).
  • Page 18 STEP 4 (See Diagram 4) A.) Attach the Backrest Board (#13) to the Backrest Supports (#3). Secure it with four M8 x 1 5/8” Allen Bolts (#34) and four Ø 5/8” Washers (#30). B.) Attach the Seat Pad (#12) to Front & Rear Seat Bracket (#4 & #5). Secure them with four M8 x 1 5/8”...
  • Page 19 STEP 5 (See Diagram 5) A.) Attach the Leg Developer (#2) to Main Seat Support (#1). Secure it with one M10 x 3 1/8” Allen Bolt (#38), two Ø ¾” Washers (#31), and one M10 Aircraft Nut (#33). B.) Insert two Foam Tubes (#10) halfway through the holes on Leg Developer. Push four Foam Rolls (#16) onto the Tubes from both ends.
  • Page 21: Bench Parts List

    BENCH PARTS LIST KEY NO. DESCRIPTION Q’ty Main Seat Support Leg Developer Backrest Support Front Seat Bracket Rear Seat Bracket Bench Base Frame Rear Stabilizer Backrest Adjustment Support 1 Backrest Adjustment Lever Foam Tube Spring Seat Pad Backrest Board 2 ¾” Grip 2”...
  • Page 22: Warranty

    ® IMPEX INC. LIMITED WARRANTY ® IMPEX Inc. ("IMPEX ") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only to the original purchaser.
