NOTE:
Please read all
instructions carefully
before using this product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
NS-1201E
Retain This
Manual for
Reference
131023

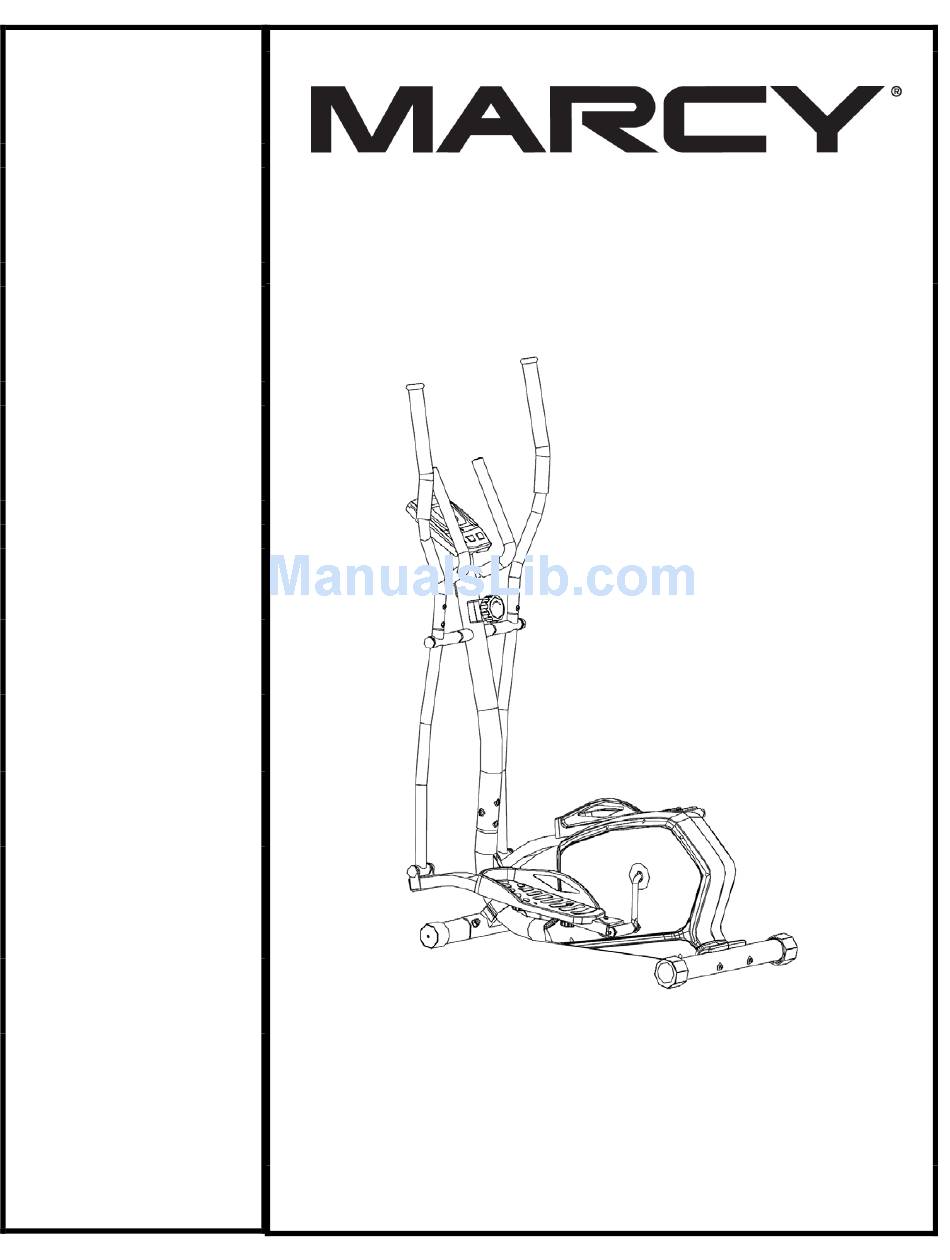

ASSEMBLY &
OWNER'S
MANUAL
Magnetic-Resistance
Elliptical Exerciser
NS-1201E
IMPEX
2801 S. Towne Ave, Pomona, CA 91766
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
®
INC.
Advertisement
Table of Contents
Related Manuals for Impex Marcy NS-1201E
Summary of Contents for Impex Marcy NS-1201E
- Page 1 NOTE: Please read all instructions carefully before using this product Magnetic-Resistance Elliptical Exerciser Table of Contents Safety Notice NS-1201E Hardware Pack Assembly Instruction Parts List Warranty Ordering Parts Model NS-1201E Retain This Manual for Reference 131023 ASSEMBLY & OWNER'S MANUAL ®...
-
Page 2: Table Of Contents
COMPUTER…………………………………………………………………………… 20 EXERCISE GUIDELINES……………………………………………………………. 21 WARRANTY....................……. 22 ORDERING PARTS..................……. 23 BEFORE YOU BEGIN Thank you for selecting the MARCY Magnetic-Resistance Elliptical Bike NS-1201E by ® IMPEX INC. For your safety and benefit, read this manual carefully before using the bike. -
Page 3: Important Safety Notices
IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1. -
Page 4: Warning Label Placement
WARNING LABEL PLACEMENT The Warning Labels shown here has been placed on the Rear Stabilizer. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the labels in location shown. © IMPEX INC. www.impex-fitness.com... -
Page 5: Hardware Pack
HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size. Description Identifier Q’ty Allen Bolt M8 x 3” Lock Washer Ø ⅝” Curved Washer Ø ⅝” Carriage Nut Allen Bolt M6 x 1/2“ Carriage Bolt M10 x 3”... - Page 6 Ø ½” x 2 ½” Sleeve Aircraft Nut M10 Acorn Nut M10 Ø ⅞” Flat Washer 40L/R Pedal Axle Bolt Pedal Lock Knob Wrinkled Washer 44L/R Pedal Axle Nut Ø 1 ⅛” x Ø 1 ½” Flat Washer Allen Bolt M8 x ⅝” Crossing Wrench (Tool) #6 Allen Wrench (Tool) #4 Allen Wrench (Tool)
- Page 7 COMPONENTS FOR ASSEMBLY © IMPEX INC. www.impex-fitness.com...
-
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTION • Tools Required For Assembling the Machine: One Crossing Wrench and Allen Wrench, provided by manufacturer. • NOTE: It is strongly recommended that two or more people assemble this machine to avoid possible injury. STEP-1 A.) Attach the Rear Stabilizer (#3) to the Main Frame (#1). Secure it with two M8 x 3” Allen Bolts (#2), two Ø... - Page 9 STEP-2 A.) NOTE: Extra help may be needed to hold the Front Post (#4) while connecting the cables and wires. B.) Remove the M5 x 1 ¾” Tension Kobe Screw (#18) and Ø ½” Flat Washer (#19) from Tension Knob (#55). C.) Insert the Upper Tension Cable on Tension Knob (#55) through the opening on Front Post (#9), and drop the Upper Tension Cable all the way down to bottom of Front Post.
- Page 10 © IMPEX INC. www.impex-fitness.com...
- Page 11 STEP-3 A.) Remove four M5 x ⅜” Philips Screws (#20) from the Computer (#10). B.) Connect the Middle Computer Wire (#51) from Front Post (#9) to the computer wire from Computer. C.) Slide the Computer onto the bracket on the Front Post and secure with the four M5 x ⅜” Philips Screws.
- Page 12 STEP-4 A.) Do not tighten the Bolts until instructed to do so. B.) Attach the Left Stride Tube (#52) to the left axle on Front Post (#9). C.) Secure the Stride Tube to Front Post with one D-shaped Washer (#29), one Flat Ø ⅜” x Ø...
- Page 13 STEP-5 A.) Do not tighten all Bolts and Nuts until instructed to so. B.) Place the pivot on bottom of Left Stride Tube (#52) to the open bracket on left Pedal Support (#41L). C.) Secure the Tube to the Pedal Support with one M10 x 3 ⅛” Hex Bolt (#32), one Sleeve (#33), one Ø...
- Page 14 © IMPEX INC. www.impex-fitness.com...
- Page 15 STEP-6 A.) Attach Left Stride Handle (#12) onto Left Stride Tube (#52). Secure it with two M6 x ½” Allen Bolts (#22) and two Carriage Nuts (#21). B.) Repeat A to install Right Stride Handle (#13) to Right Stride Tube (#53). ©...
- Page 16 STEP-7 A.) Place the Left Pedal (#48) onto left Pedal Support (#41L). Secure it with two M8 x 1 ¾” Hex Bolts (#31) and two Pedal Lock Knobs (#42). B.) Repeat A to install the Right Pedal (#49) onto the right Pedal Support (#41R). ©...
-
Page 17: Exploded Diagram
EXPLODED DIAGRAM © IMPEX INC. www.impex-fitness.com... -
Page 18: Parts List
NS-1201E PARTS LIST PART DESCRIPTION SPEC. QUANTITY Main Frame Allen Bolt M8 x 3” Rear Stabilizer Lock Washer Ø 5/8” Curved Washer Ø 5/8” Front Stabilizer Front Stabilizer Roller End Cap Rear Stabilizer End Cap Front Post Computer Stationary Handle... - Page 19 40L/R Pedal Axle Bolt 41L/R Pedal Support Pedal Lock Knob Wrinkled Washer 44L/R Pedal Axle Nut Ø 1 ⅛” x Ø ½” Flat Washer Lower Tension Cable M8 x ⅝” Allen Bolt Left Pedal Right Pedal Lower Computer Wire Middle Computer Wire Left Stride Tube Right Stride Tube Spacer...
-
Page 20: Care, Maintenance And Storage
CARE, MAINTENANCE AND STORAGE 1. Inspect and tighten all parts each time you use the machine. Replace any worn parts immediately. 2. The bike can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents. 3. Store the bike IN-DOOR. Excess moisture and water would cause rust on the frame. 4. -
Page 21: Computer
COMPUTER AUTO START / STOP When exercise starts, the monitor will automatically turn on and display the progress. When exercise stops, the monitor will automatically turn off after 4 minutes to save energy. MODE- 1. Press “MODE” key, will automatically scan Time, Speed, Distance, Calories, and ODO for every 4 seconds. -
Page 22: Exercise Guidelines
EXERCISE GUIDELINES Using your MAGNETIC BIKE will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with calorie controlled diet help you lose weight. 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. -
Page 23: Warranty
This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes 3. The Cool Down Phase This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g. -
Page 24: Ordering Parts
® IMPEX INC. LIMITED WARRANTY ® IMPEX Inc. ("IMPEX ") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only to the original purchaser.
