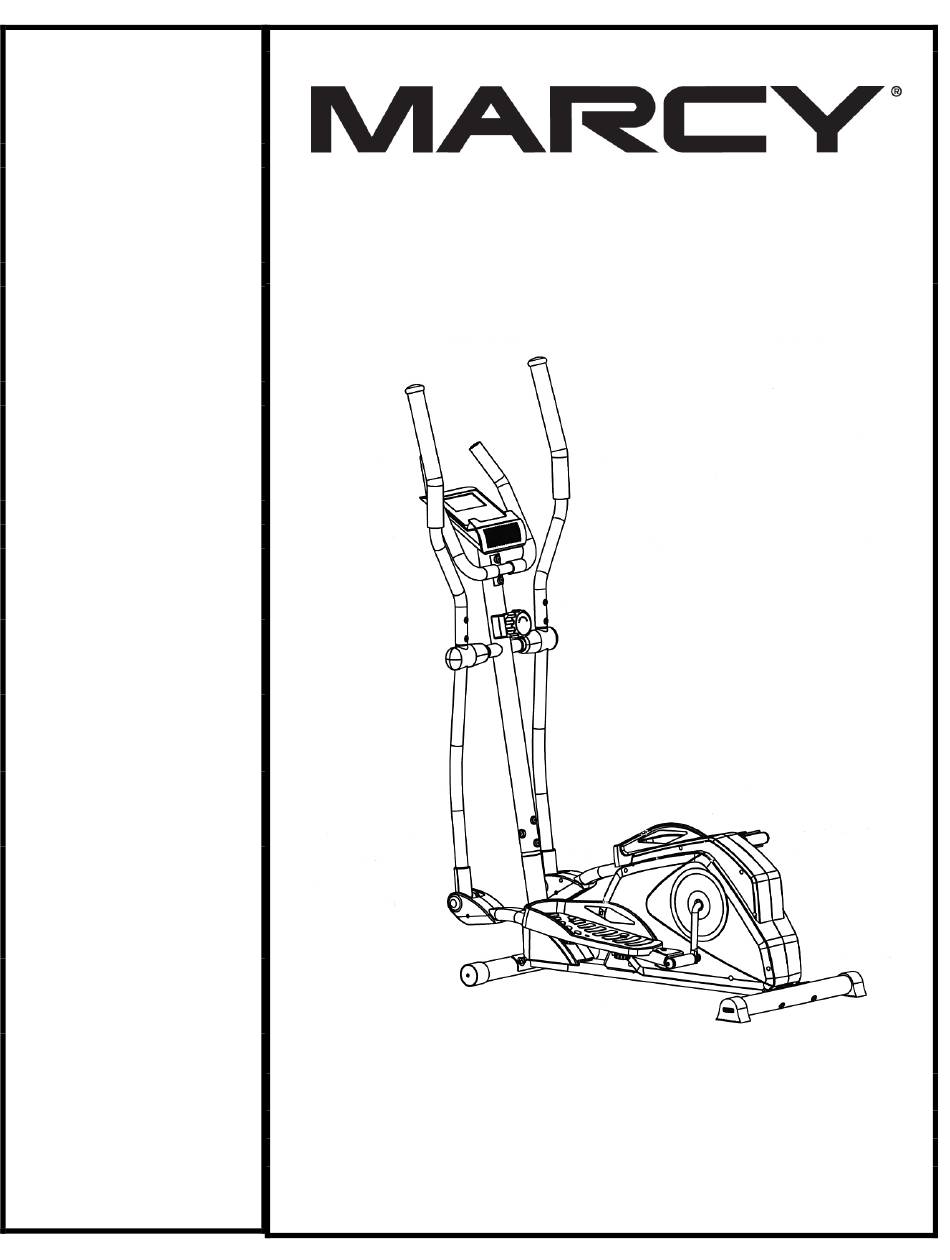

Page 1 NOTE: Please read all instructions carefully before using this product Magnetic-Resistance Elliptical Exerciser Table of Contents Safety Notice NS-40501E Hardware Pack Assembly Instruction Parts List Warranty Ordering Parts Model NS-40501E Retain This Manual for Reference 140926 ASSEMBLY & OWNER'S MANUAL ®...
Page 2: Table Of Contents
BEFORE YOU BEGIN Thank you for selecting the MARCY Magnetic-Resistance Elliptical Exerciser ® NS-40501E by IMPEX INC. For your safety and benefit, read this manual carefully before using the bike. As a manufacturer, we are committed to provide you complete customer satisfaction.
Page 3: Important Safety Notices
BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES RESPONSIBILITY PERSONAL INJURY PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
Page 4: Warning Label Placement
WARNING LABEL PLACEMENT The Warning Labels shown here has been placed on the Rear Stabilizer. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the labels in location shown. © IMPEX INC. www.impex-fitness.com...
Page 5: Hardware Pack
Sleeve ⅛” Hex Bolt M10 x 3 ¾” Hex Bolt M8 x 1 ⅝” Allen Bolt M8 x 10L/R Pedal Axle Bolt Wrinkled Washer ½” Allen Bolt M6 x ¾” Carriage Bolt M6 x Lock knob © IMPEX INC. www.impex-fitness.com...
Page 6 Lock Washer Ø 1 ¼” x Ø ⅜” D Washer Ø 1 ⅛” Flat Washer 51L/R Hex Nut Ø ⅜” Curve Washer Ø ¾” x Allen key L6 Allen key L4 Allen key L8 Allen wrench © IMPEX INC. www.impex-fitness.com...
Page 8: Assembly Instructions
Ø ⅞” Curved Washers (#7), and two Acorn Nuts (#8). B.) Attach the Front Stabilizer (#3) to the Main Frame. Secure it with two M8 x 3” Carriage Bolts (#6), two Ø ⅞” Curved Washers (#7), and two Acorn Nuts (#8). © IMPEX INC. www.impex-fitness.com...
Page 9 B.) Insert the Upper Tension Cable (#25) through the opening on Front Post to the bottom of the Front Post. C.) Plug the Tension Knob (#25) into the opening, secure the Tension Knob to Front Post with the Tension Knob Screw (#50) and the Ø ½” Washer (#49). © IMPEX INC. www.impex-fitness.com...
Page 10 D.) Drop down the Upper Tension Cable so the fitting sits firmly on top of the bracket. E.) Secure the Front Post to the Main Frame with four M8 x 5/8” Allen Bolts (#23), and four Ø ¾” x Ø ⅜” Curved Washers (#41). © IMPEX INC. www.impex-fitness.com...
Page 11 D.) Cover the bottom of Left Stride Tube with one Stride Tube Bottom Cover Set (#52) and secure with two ST4 x 1 ⅛” Self Tapping Screws (#53) E.) Repeat A, B, C, and D to install Right Stride Tube (#21R) to Front Post. © IMPEX INC. www.impex-fitness.com...
Page 12 Support Covers (#54L), secure them with two M5 x ⅜” Self Tapping Screws (#55). F.) Place the Left Pedal (#13L) onto Left Pedal Support, secure with two M8 x 1 ¾” Hex Bolts (#14) and two Lock Knobs (#15). © IMPEX INC. www.impex-fitness.com...
Page 13 Support Covers (#54R), secure them with two M5 x ⅜” Self Tapping Screws (#55). F.) Pace the Right Pedal (#13R) onto the Right Pedal Support, secure with two M8 x 1 ¾” Hex Bolts (#14) and two Lock Knobs (#15). © IMPEX INC. www.impex-fitness.com...
Page 14 B.) Remove four M5 x ½”Philips Screws (#48) from Computer (#38). Connect the computer wire from Computer to the Upper Computer Wire (#26) from Front Post. Slide the computer onto the bracket on Front Post. Secure the Computer to the bracket with the four M5 x ½”Philips Screws (#48). © IMPEX INC. www.impex-fitness.com...
Page 15 A.) Place the left Stride Handle (#37L) onto left Stride Tube (#21L). Secure it with two M6 x ¾” Carriage Bolts (#36) and two M6 x ½” Allen Bolts (#35). B.) Repeat A to install right Stride Handle (#37R) to right Stride Tube (#12R). © IMPEX INC. www.impex-fitness.com...
Page 18: Parts List
NS-40501E PARTS LIST PART DESCRIPTION SPEC. QUANTITY Main Frame Rear Stabilizer Front Stabilizer Rear Stabilizer End Cap Front Stabilizer End Cap Carriage Bolt M10 x 3” Ø ⅞” Curve Washer Acorn Nut Left Pedal Support Right Pedal Support Left Pedal Axle Bolt...
Page 19 Magnet Assembly Ball Bearing Set Belt Computer Wire Sensing Base Magnet Assembly Spring Hex Bolt M6 x 1” Hex Nut Nylon Nut Main Frame Cover L/R Crank End Cover Flywheel Flange Nut Ring Bolt Locking Clamp © IMPEX INC. www.impex-fitness.com...
Page 20: Care, Maintenance And Storage
NOTE: DO not stand on one Pedal with both feet, or just step one foot on one Pedal during exercise. TRANSPORT The Bike has a pair of roller wheels on Front Stabilizer End Cap. To move, carefully hold and tilt the machine, and roll. © IMPEX INC. www.impex-fitness.com...
Page 21: Computer
10. When the batteries are removed, all the functional values will reset to zero. Note: Please note all values on this computer are approximate and they are for comparison purpose only. Do not use these values for any medical or rehabilitation purpose. © IMPEX INC. www.impex-fitness.com...
Page 22: Exercise Guidelines
The rate of work should be sufficient to raise your heartbeat into the target zone shown on the graph below. This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes © IMPEX INC. www.impex-fitness.com...
Page 23 The important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal. © IMPEX INC. www.impex-fitness.com...
Page 24: Warranty
IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
