Globalsat GV-590 User Manual

Hide thumbs Also See for GV-590:
Table of Contents

Advertisement

Quick Links

Download this manual

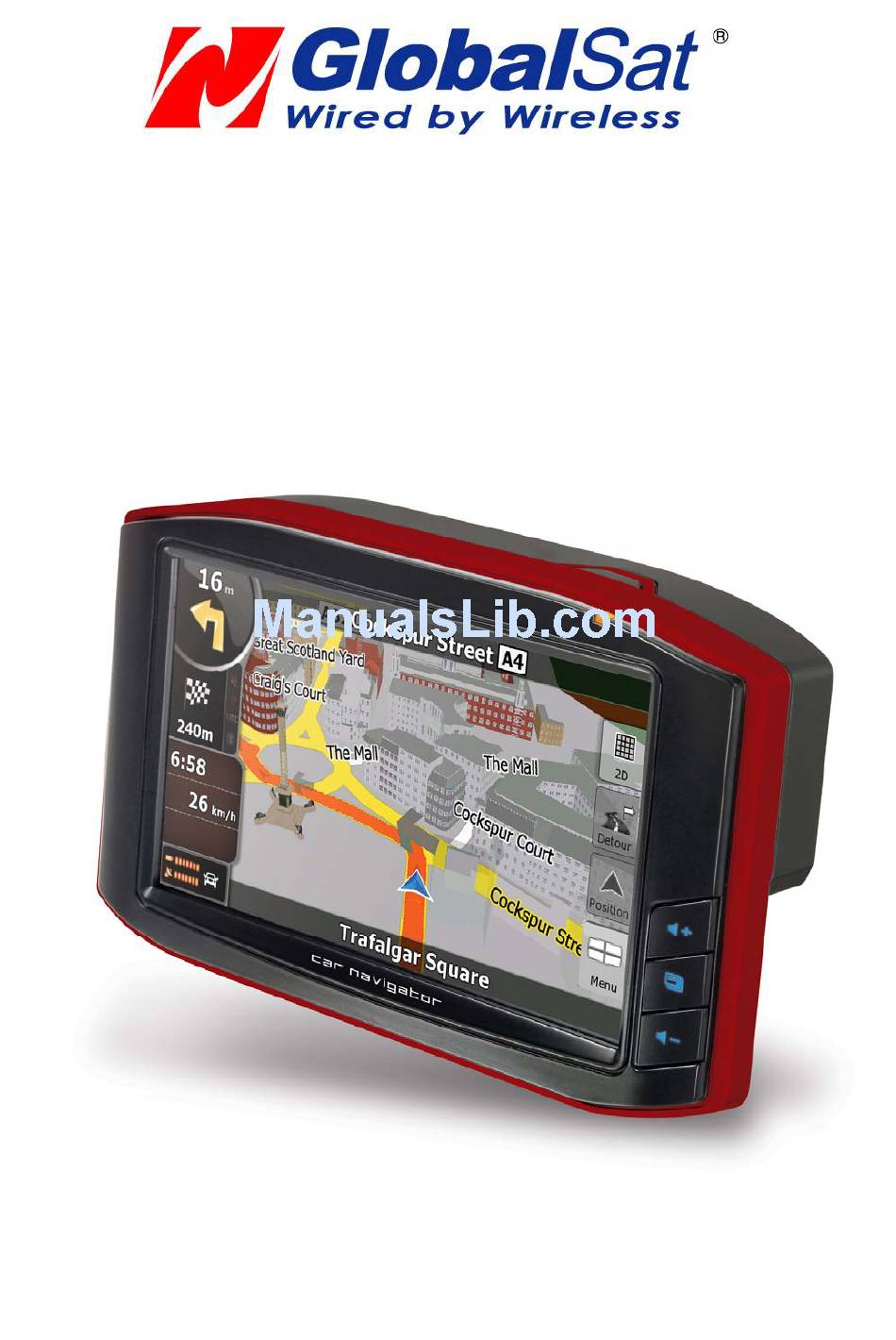

GV-590
User Manual
Version 0.3

Advertisement

Table of Contents
loading

Related Manuals for Globalsat GV-590

Summary of Contents for Globalsat GV-590

  • Page 1 GV-590 User Manual Version 0.3...

  • Page 2: Table Of Contents

    Video Player................18 Photo Viewer................. 20 Setup Mode ................21 Chapter 4 Troubleshooting ..........27 If the GV-590 does not boot up successfully or does not function properly ................27 Reset ................... 27 Safely Remove Hardware ............29 FCC Notices ..............30 Before you start to use the GV-590, please charge for GV-590 after 8 hours, and then to use.

  • Page 3: Chapter 1 Features And Specification

    Chapter 1 Features and Specification Features • Complete car navigation solution in one box including car mount • Simple touch-screen operation • 5” screen, 65536 colours, bright TFT LCD • Smart and easy: - Attach, switch it on and go - Large Function icons design for easy touched - User-Friendly keypad - Clear, high quality voice-guided instruction...

  • Page 4: Specification

    Specification ► System Electrical Characteristics Processor Samsung S3C2440, 400MHz WinCE.NET 5.0 Flash Memory 64 MB SDRAM Memory 64MB Memory Card Slot SD/MMC SiRF Star III , built-in 18x18 Patch Antenna DISPLAY Display 5”, TFT LCD with Touch Screen Pixels H*W 480*272 (WQVGA) Display Type COLOR TFT Daylight LCD...
  • Page 5 KEY BUTTON Power/Mute Power (Long Push >= 2sec): Turn on the device, press it again to close any open windows and turn it off (enter a standby mode) Mute(Short Push < 2sec ) : Press Menu button to go back to Mute System menu Reset...
  • Page 6 ► GPS Specification Electrical Characteristics GPS Chipset SiRF Star III Frequency L1, 1575.42 MHz C/A Code 1.023 MHz chip rate Channels 20 channel all-in-view tracking ACCURACY Position Horizontal 10 meters, 2D RMS 1-5 meters 2D RMS, WAAS corrected Velocity 0.1m/sec Time 1 micro-second synchronized to GPS time DATUM...

  • Page 7: Accessories

    Accessories Mount USB cable GV-590 Main Unit DC charger Cradle AC adapter (optional) CD or DVD (user manual, driver, Quick Guide SD card (optional) Application, map data…) SD PULL Label Note: 1. If any item is missing or damaged, please contact with your local retailer.

  • Page 8: Overview

    Overview Front View Solid Red – Battery is lower than 40%. Power LED Solid Amber – Battery is being charged. ➊ Solid Green – Battery full charged. Volume up Volume up button. ➋ Volume down Volume down button. ➌ Press the Menu button to go directly to Main Menu button ➍...
  • Page 9 Side View and Top View Power (Long Push>2 sec): Power /Mute Turn on the GV-590, press it again to turn it off ➊ button (enter the standby mode). Mute (Short Push<2 sec): Press to mute the audio, press again to resume.
  • Page 10 Be sure that the switch is in the “ON” position when you remove the unit from the box. The GV-590 will NOT charge if the switch is in the “OFF” position. Charging For power supply and battery charging.

  • Page 11: Chapter 2 Getting Started

    SD card. Click on the drive letter which your SD card is inserted, and click on “Start” button. After the download process is finished, please remove the SD card from card reader, insert it into your GV-590 and restart it.

  • Page 12: Attach Gv-590 To Cradle

    Lock 1. Place the GV-590 on the bottom of the cradle. 2. Push the GV-590 to the clip lock on the top of the cradle. 3. Clean your windshield with a lint-free cloth. 4. Place the suction cup on the windshield.

  • Page 13: Charging Your Gv-590

    GV-590. The power LED will light. When battery is fully charged, the LED becomes green. SD card sticker Pastes SD PULL LABEL on the SD CARD So then may in GV-590 take out SD CARD by the arrow direction.

  • Page 14: Chapter 3 Software Application

    Chapter 3 Software Application Main Screen Main Screen Tap on the Navigation icon to start the Navigation application. Tap on the Media icon to enter the sub-screen which contains the music player and photo viewer. Tap on the Setup icon to enter the sub-screen which you can do the settings of the device.

  • Page 15: Media Mode

    Media Mode Media Screen Tap on the Music icon to start the music player. Tap the Video icon to start the Video player. Tap on the Photo icon to start the photo viewer. Go back to Main Screen.

  • Page 16: Music Player

    Music Player Music Player Tap this button to play the next song. Tap this button to play the current song. Tap this button to pause the playing. Tap this button to play the previous song. Tap this button to stop the playing. Sequentially play the songs from playing list.
  • Page 17 Edit Playing list Music Player will search for the “Music” folder of the SD card for all music files and display them on screen. Tap directly on the file name of the song to add or remove it from playing list.

  • Page 18: Video Player

    Video Player Video Player Tap this icon to play the clip. Tap this icon to pause the clip. Tap this icon to stop playing. Tap this icon to select the clip. Tap this icon to view this image in full screen mode Go back to Media Menu.
  • Page 19 Select Video Files Scroll up or down to select video files from the previewing area. All video files (.wmv, .mpg) in the SD card folder “Video” will be shown on the previewing area. Go back to Video player.

  • Page 20: Photo Viewer

    Photo Viewer Photo Viewer Photo Viewer will search for the “Photo” folder of the SD card for all supported image files and display in thumbnail mode. Use up or down arrow buttons to scroll the page. Tap to select an image and tap the Full Screen button on left side to view this image in full screen.

  • Page 21: Setup Mode

    Setup Mode Setup Screen Display the Flash memory capacity, SD card capacity, the PCB version and the firmware version information. Show battery status. While charging, the battery animation will be activated. Change backlight brightness. Set date, time, language, and time zone. Show product information.

  • Page 22: System Information

    System Information Go back to Setup Screen. About Go back to Setup Screen.
  • Page 23 Show battery status. While charging, the battery animation will be activated. Tap to check the box to enable power saving. If the GV-590 is connected to the AC adapter, the power saving will be disabled. Set the time for power saving.
  • Page 24 Brightness The backlight brightness has 0~6 levels from left to right. The default is set to the 6 level. Cancel and go back to Setup Screen. Save the setting you made and go back to Setup Screen.
  • Page 25 Regional Setting Set the time and date of your local area. Set the date. Select the language of the system. Set the time zone. Cancel and go back to Setup Screen. Save the setting you made and go back to Setup Screen.
  • Page 26 Screen Run the screen calibration program. Press and hold the stylus on the center of the target. Repeat on four corners. When the new calibration is done, tap the screen to save the setting or wait for 30 seconds to cancel the calibration.

  • Page 27: Chapter 4 Troubleshooting

    4. Perform the “Reset” to restart the device. Reset If your GV-590 is down or it encounters an unexpected error, you can reset it. You will need to use a stylus or pencil to press the reset button. Pressing the reset button will restart the system retaining...
  • Page 28 GV-590 for a quicker GPS fix time. Please avoid excessive heat and humidity. Please do not leave the GV-590 in your car under the direct sunshine with windows closed. Place it in a high temperature environment may damage its LCD display or the device.

  • Page 29: Safely Remove Hardware

    Safely Remove Hardware Before you remove the memory card from the card reader, or before you unplug the USB cable from the device or USB port, please safely remove the hardware by the following processes: 1. Double click the "Safely Remove Hardware" icon from the task bar on the right bottom corner of desktop.

  • Page 30: Fcc Notices

    FCC Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC RF Exposure requirements: This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.
