Globalsat WorldCom GV-580 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GTV-580 User Manual
Version 0A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WorldCom GV-580 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Globalsat WorldCom GV-580

Summary of Contents for Globalsat WorldCom GV-580

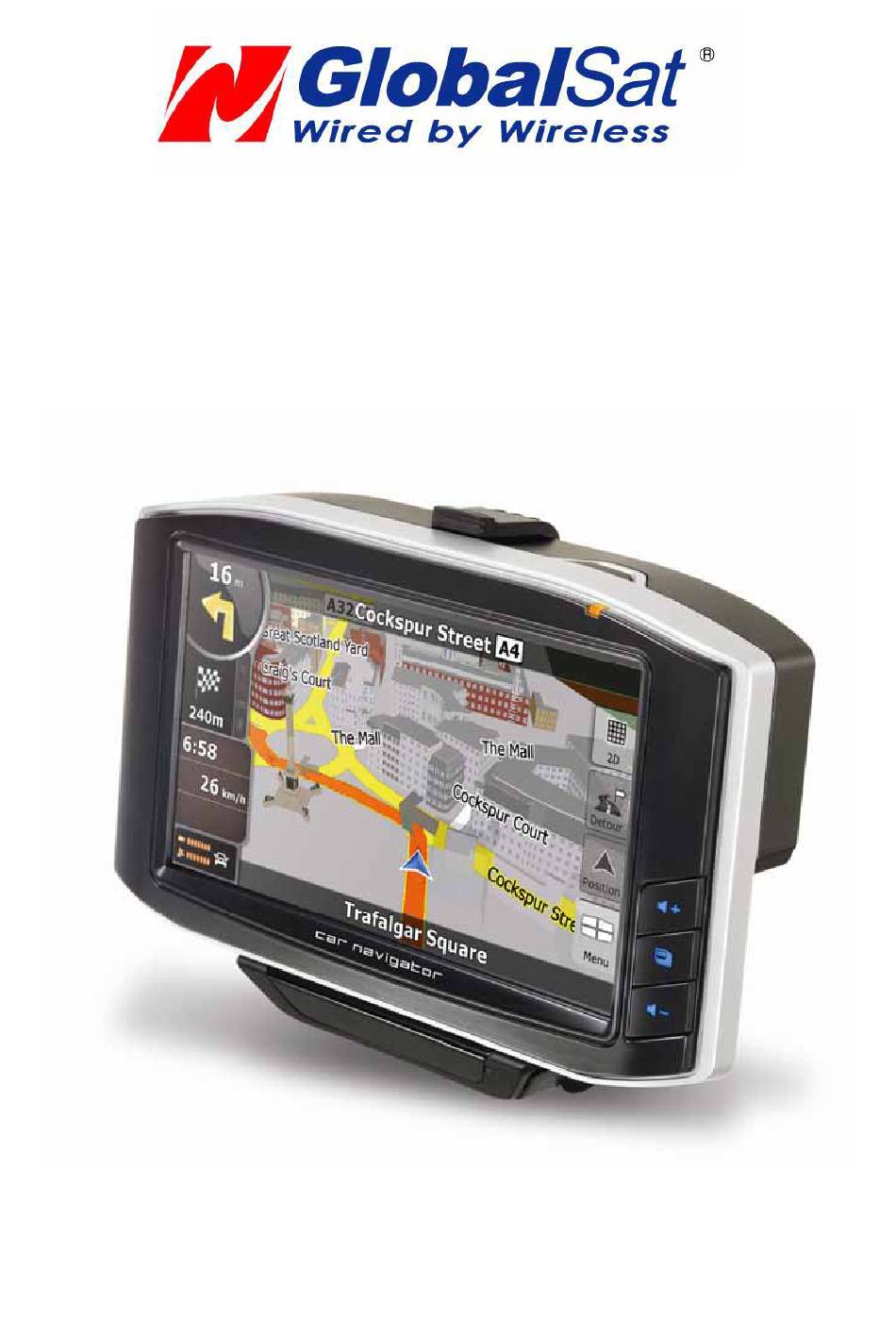

  • Page 1 GTV-580 User Manual Version 0A...

  • Page 2: Table Of Contents

    Table of Content Chapter 1 Features and Specification ........ 3 Features ................. 3 Specification ................4 Accessories ................7 Overview ................9 Chapter 2 Getting Started..........13 Download Application Software to memory card by card reader ... 13 Attach GTV-580 to Cradle (DVB-T module)........ 14 Charging your GTV-580 ............

  • Page 3: Chapter 1 Features And Specification

    Chapter 1 Features and Specification Features • Complete car navigation solution in one box including car mount • Simple touch-screen operation • 5” screen, 65536 colours, bright TFT LCD • Smart and easy: - Attach, switch it on and go - Large Function icons design for easy touched - User-Friendly keypad - Clear, high quality voice-guided instruction...

  • Page 4: Specification

    Specification ► System Electrical Characteristics Processor Samsung S3C2440, 400MHz WinCE.NET 5.0 Flash Memory 64 MB SDRAM Memory 64MB Memory Card Slot SD/MMC SiRF Star III , built-in 18x18 Patch Antenna DISPLAY Display 5”, TFT LCD with Touch Screen Pixels H*W 480*272 (WQVGA) Display Type COLOR TFT Daylight LCD...
  • Page 5 KEY BUTTON Power/Mute Power (Long Push >= 2sec): Turn on the device, press it again to close any open windows and turn it off (enter a standby mode) Mute(Short Push < 2sec ) : Press Menu button to go back to Mute System menu Reset...
  • Page 6 ► GPS Specification Electrical Characteristics GPS Chipset SiRF Star III Frequency L1, 1575.42 MHz C/A Code 1.023 MHz chip rate Channels 20 channel all-in-view tracking ACCURACY Position Horizontal 10 meters, 2D RMS 1-5 meters 2D RMS, WAAS corrected Velocity 0.1m/sec Time 1 micro-second synchronized to GPS time DATUM...

  • Page 7: Accessories

    Accessories GTV-580 Main Unit Mount USB cable DVB-T DC charger AC adapter Antenna(Reference) Remote control DVB-T module SD card (optional)
  • Page 8 CD or DVD (user manual, driver, AV-OUT cable Application, map Quick Guide data…) SD PULL Label Note: 1. If any item is missing or damaged, please contact with your local retailer. 2. Fittings graphic presentation can as material object slightly the getting more different, please by fittings not enclosed not real as the accurate.

  • Page 9: Overview

    Overview Front View Solid Red – Battery is lower than 40%. Power LED Solid Amber – Battery is being charged. ➊ Solid Green – Battery full charged. Volume up Volume up button. ➋ Press the Menu button to go directly to Main ➌ ...
  • Page 10 Side View and Top View Power (Long Push>2 sec): Power /Mute Turn on the GTV-580, press it again to turn it ➊ button off (enter the standby mode). Mute (Short Push<2 sec): Press to mute the audio, press again to  ...
  • Page 11 Bottom View and Rear View External For you to connect an optional MMCX-type Antenna ➊ external antenna. connector Speaker For output the music or navigation voice. ➋  Slide the switch to “OFF” position to prevent from accidentally turning on the device by touching the power button.
  • Page 12 DVB-T module DVB-T For you to connect to DVB-T antenna. (on Antenna ➊ both sides) connector Charging For power supply and battery charging. ➋  connector Infrared Infrared sensor for receiving signal from ➌ sensor remote control. Docking Docking connector for DVB-T module. ➍ ...

  • Page 13: Chapter 2 Getting Started

    Chapter 2 Getting Started Before you start to use the GTV-580, please connect it with the AC adapter and plug to power socket for battery charging. When it is in charging, the status indicator will be amber. If the battery is fully charged, the status indicator will be lit on green.

  • Page 14: Attach Gtv-580 To Cradle (Dvb-T Module)

    Attach GTV-580 to Cradle (DVB-T module) Release Lock 1. Place the GTV-580 at a downward angle into the base of the cradle. 2. Align three grooves and docking connector to push down GTV-580 inward until the top clip locks into place. 3.

  • Page 15: Charging Your Gtv-580

    Charging your GTV-580 Plug the end of AC adapter or DC charger into the charging connector of GTV-580 or DVB-T module. The power LED will light. When battery is fully charged, the LED becomes green. SD card sticker Pastes SD PULL LABEL on the SD CARD So then may in GTV-580 take out SD CARD by the arrow direction.

  • Page 16: Chapter 3 Software Application

    Chapter 3 Software Application Main Screen Main Screen Tap on the Navigation icon to start the Navigation application. Tap on the TV icon to start the DVBT function. Tap on the HandsFree icon to start the Bluetooth HandsFree application. Tap on the Media icon to enter the sub-screen which contains the music player and photo viewer.

  • Page 17: Media Mode

    Media Mode Media Screen Tap on the Music icon to start the music player. Tap the Video icon to start the Video player.   Tap on the Photo icon to start the photo viewer.   Go back to Main Screen.  ...

  • Page 18: Music Player

    Music Player Music Player Tap this button to play the next song.   Tap this button to play the current song.   Tap this button to pause the playing.   Tap this button to play the previous song.   Tap this button to stop the playing.  ...
  • Page 19 Edit Playing list Music Player will search for the “Music” folder of the SD card for all music files and display them on screen. Tap directly on the file name of the song to add or remove it from playing list.

  • Page 20: Video Player

    Video Player Video Player Tap this icon to play the clip. Tap this icon to pause the clip. Tap this icon to stop playing.   Tap this icon to select the clip. Tap this icon to view this image in full screen mode Go back to Media Menu.
  • Page 21 Select Video Files Scroll up or down to select video files from the previewing area. All video files (.wmv, .mpg) in the SD card folder “Video” will be shown on the previewing area. Go back to Video player.  ...

  • Page 22: Photo Viewer

    Photo Viewer Photo Viewer Photo Viewer will search for the “Photo” folder of the SD card for all supported image files and display in thumbnail mode. Use up or down arrow buttons to scroll the page. Tap to select an image and tap the Full Screen button on left side to view this image in full screen.

  • Page 23: Setup Mode

    Setup Mode Setup Screen Display the Flash memory capacity, SD card capacity, the PCB version and the firmware version information. Show battery status. While charging, battery animation will be activated.     Change backlight brightness.     Set date, time, language, and time zone.  ...
  • Page 24 System Information Go back to Setup Screen.   About Go back to Setup Screen.  ...
  • Page 25 Power Management Show battery status. While charging, the battery animation will be activated. Tap to check the box to enable power saving. If the GTV-580 is connected to the AC adapter, the power saving will be disabled. Set the time for power saving. Cancel and go back to Setup Menu.
  • Page 26 Brightness The backlight brightness has 0~6 levels from left to right. The default is set to the 6 level. Cancel and go back to Setup Screen.   Save the setting you made and go back to Setup Screen.  ...
  • Page 27 Regional Setting Set the time and date of your local area.   Set the date. Select the language of the system. Set the time zone.     Cancel and go back to Setup Screen. Save the setting you made and go back to Setup  ...
  • Page 28 Screen Run the screen calibration program. Press and hold the stylus on the center of the target. Repeat on four corners. When the new calibration is done, tap the screen to save the setting or wait for 30 seconds to cancel the calibration.

  • Page 29: Chapter 4 Bluetooth Handsfree

    Chapter 4 Bluetooth HandsFree Bluetooth main screen HandsFree Phone Dialer: Tap on this button, GTV-580 will search and connect to the previous paired HandsFree device. After connection is established, it enters Phone Dialer mode. Phone Book: Tap on this button, GTV-580 will search and connect to the previous paired HandsFree device.
  • Page 30 Phone Dialer Backspace Call record button Dial button Phone book   Go back to HandsFree Screen.  ...
  • Page 31 Call Record Display the Dial button missed call.   Display the Delete record received call.   Display the Go back to Setup dialed call. Screen.  ...
  • Page 32 Talking mode Press this button to mute your voice. Press this The other party button to hang could not hear your up the phone. voice. Tap it again to resume. Press this Press this button to button to show the extension switch calling number input source between...
  • Page 33 Setup Search Device: Tap on this button to search the Bluetooth device nearby. Up to 10 devices can be searched. If pairing process is finished, it returns to Main screen. If pairing process is failed, it returns to Pin Code screen. Up to 4 Bluetooth paired devices can be stored in the list of PND.
  • Page 34 Device List Up to 4 Bluetooth paired devices can be stored in the device list. You can select a Bluetooth device from this list. The selected device will be highlight. Connect: Connect to the selected device and go back to main screen.
  • Page 35 Set PND Name The default name of the PND is “GPS BT Carkit”. You can change it as your wish. When you finish editing, press this button to confirm.   Press this button to switch between alphabetical and numerical keypad.  ...
  • Page 36 Version info Display the hardware and software version of Bluetooth module. Go back to Setup Screen.  ...
  • Page 37 Reset Default: Restore the factory default settings of Bluetooth.   Clean Phone Book: Clean the phone book data which downloaded from you Bluetooth cell phone.   Auto-Reply Setup, Default:10 sec Go back to Setup Screen.

  • Page 38: Search And Connect To Your Bluetooth Phone

    Search and connect to your Bluetooth phone Tap on Setup icon to enter Setup mode. Tap on Search Device icon to search your Bluetooth cell phone. GTV-580 begins to search the device.

  • Page 39: Answer Or Hang Up A Incoming Call

    The found device is shown on the list. Tap on the device you want to connect with. If connection is established, the name of the connected device will appear on the upper right corner of screen. Answer or hang up a incoming call When you receive a incoming call, you can press the left icon to...

  • Page 40: Make A Call

    Make a call Tap on the Phone Dialer icon. The dialing screen appears. Input the number and tap on Dial button. The dialing screen appears. Phone call is established.

  • Page 41: Bluetooth Stereo Playback

    Bluetooth Stereo Playback Tap on the Stereo Playback icon, and then select your device from device list. If connection is established, it shows the A2DP screen. You can play, pause or stop music from screen buttons. Buttons for Next and Previous are also supported.

  • Page 42: Chapter 5 Dvb-T

    Chapter 5 DVB-T DVB-T DVB-T is the abbreviation of Digital Video Broadcasting - Terrestrial. It is a broadcast transmission standard for digital terrestrial television mainly used in European area. Remote Control Switch to Radio RADIO channel, press it again to resume TV mode. Mute the volume output.

  • Page 43: Enter Tv Mode

    Enter TV Mode If you want to watch TV program, you have to attach GTV-580 main unit onto DVB-T module and plug in the charging adapter. Tap on TV icon, GTV-580 begins to start Digital TV function.
  • Page 44 While you are in TV mode, you can touch anywhere on screen to display the OSD (On Screen Display) menu. If there is no touch action within 3 seconds, the OSD menu will disappear automatically. Main Setup screen Close and back to Enter Electronic previous screen.
  • Page 45 If your TV program supports Multi-channel television sound, you can choose to listen the different language or audio. You can choose to display a different subtitle if the TV program supports this function.
  • Page 46 Tap on the up or down arrow icon to switch channel. The channel information will display for seconds and disappear automatically. EPG displays the program title, descriptive information and the time schedule of previous and next program.
  • Page 47 Setup screen Display the related information of the program.
  • Page 48   Select your country location. Select the OSD language.  ...
  • Page 49 Automatically search the channel of your local area. Manually search the channel signal.
  • Page 50 Select from the TV program list or Radio program list. Reset the system to Factory default. Tap on to confirm. Tap on to Cancel. Display system version information.

  • Page 51: Chapter 6 Troubleshooting

    Chapter 6 Troubleshooting If the GTV-580 does not boot up successfully or does not function properly 1. Please check if the Application software is properly installed in the SD memory card. 2. Please check if the SD memory card is inserted into the SD expansion slot.
  • Page 52 If your car windows equipped with Window Films for reducing heat and blocking the harmful UV rays, it may also slightly affect the receiving of GPS signal. Thus, the cold start time will take longer then usual. If the car is moving, it may also affect the time for GPS fix.

  • Page 53: Safely Remove Hardware

    Safely Remove Hardware Before you remove the memory card from the card reader, or before you unplug the USB cable from the device or USB port, please safely remove the hardware by the following processes: 1. Double click the "Safely Remove Hardware" icon from the task bar on the right bottom corner of desktop.
  • Page 54 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 55 uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 56 Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN60950-1:2001 A11:2004 Safety of Information Technology Equipment EN50371 : (2002-03)
  • Page 57 services; Part 1: Common technical requirements EN 301 489-17 V1.2.1 (2002-08) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment EN 301 489-19 V1.2.1 (2002-11) Electromagnetic compatibility and radio spectrum matters (ERM);...
  • Page 58 Česky [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními [Czech] požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets [Danish] typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
  • Page 59 Suomi [Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä [Finnish] koskevien direktiivin muiden ehtojen mukainen. Svenska Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de [Swedish] väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
