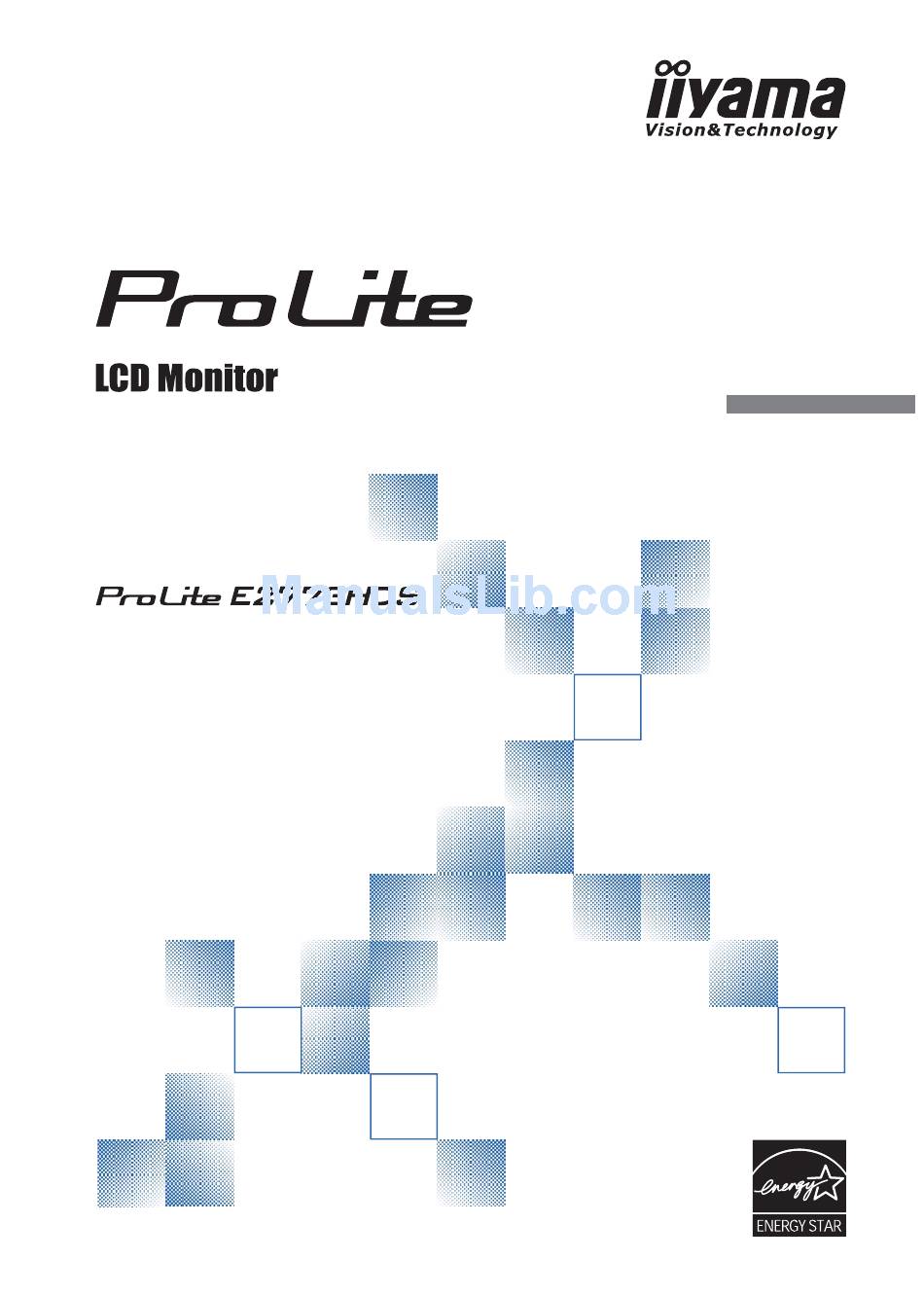

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe... -
Page 3: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Breguetlaan 8, 1438BC Oude Meer The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com... -
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS ..............1 SPECIAL NOTES ON LCD MONITORS ........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ........4 FEATURES ..................4 CHEKING THE CONTENTS OF THE PACKAGE ......4 FITTING AND REMOVAL OF BASE ..........5 CONTROLS AND CONNECTORS ..........6 CONNECTING YOUR MONITOR ..........7 COMPUTER SETTING ..............8... -
Page 6: For Your Safety
STOP OPERATING THE MONITOR IF YOU ARE AWARE OF ANY PROBLEMS If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fi re or electric shock. - Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 8: Special Notes On Lcd Monitors
Power Switch for some hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself. -
Page 9: Before You Operate The Monitor
CHEKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 10: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE CAUTION Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 11: Controls And Connectors
CONTROLS AND CONNECTORS AUDIO HDMI PHONE <Front> <Back> Power Switch ( ) / Power Indicator NOTE Blue: Normal operation Orange: Power Management Select / Input select Button ( Scroll up / Audio Adjust Button ( Scroll down / i-Style Color Button ( Menu Button ( Speakers Keyhole for Security Lock... -
Page 12: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 13: Computer Setting
Change to the desired signal timing listed on page 24: COMPLIANT TIMING. Windows 95/98/2000/Me/XP/Vista/7 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 14: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor. Hold the stand so that the monitor does not topple when you change the monitor’s angle. You are able to adjust the monitor’s angle up to 20° upward. ... -
Page 15: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 24. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 17 for SCREEN ADJUSTMENTS. -
Page 16: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Auto Image Adjust Auto Image Adjust Only Analog Input Adjustment Item Problem / Option Button to Press Direct Auto Image Adjust * Adjust H. / V. Position, Clock and Phase automatically. * For best results, use the Auto Image Adjust in conjunction with the adjustment pattern. See page 17 for SCREEN ADJUSTMENTS. -
Page 17: Input Select
Input Select Direct Input Select Adjustment Item Problem / Option Button to Press Select the VGA input. Select the DVI input. Input Select HDMI Select the HDMI input. Search for an available input source and select Auto automatically. NOTE Input source is fi xed, not selected automatically when VGA, DVI and HDMI which are selected. -
Page 18: Color Adjust
Color Adjust Color Adjust Adjustment Item Problem / Option Button to Press Cool Bluish white Normal Reddish white Warm Greenish white Too weak User Color Green Too strong Blue For general windows environment and monitor Standard default setting. Game For PC game environment. Direct i-Style Color For movie and video environment. -
Page 19: Manual Image Adjust
Manual Image Adjust Manual Image Adjust Adjustment Item Problem / Option Button to Press Too narrow Clock * Too wide Too left H. Position Too right H./V. Position * Too low V. Position Too high Phase * To correct fl ickering text or lines Adjust the picture quality at resolutions of less 1920 x 1080. -
Page 20: Setup Menu
Setup Menu Setup Menu Adjustment Item Problem / Option Button to Press English English Suomi Finnish Japanese French Français Language Select Deutsch German Simplifi ed Chinese Español Spanish Traditional Chinese Italiano Italian OSD is too left H.Position OSD is too right OSD Position OSD is too low V.Position... -
Page 21: Lock Mode
● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front buttons for about 10 seconds. If you try to access the OSD by pressing any of the buttons , message "OSD Locked" will appear on the screen. 2. -
Page 22: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www. iiyama.com). - Page 23 C Pressing and holding of the Button for about 2 seconds. (Auto Image Adjust) D Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust. E Adjust the V.Position so that the top and bottom of the picture frame will fi...
- Page 24 G Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE In case the strong fl icker or blurs remain on a part of the screen, repeat steps F and G because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from C again.
-
Page 25: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 26: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 27: Recycling Information
The Audio Cable is properly connected. A strange noise is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. 22 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 28: Appendix
APPENDIX SPECIFICATIONS Size Category 27" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 27" (68.6cm) Pixel pitch 0.311mm H × 0.311mm V Brightness 300cd/m (Typical) Contrast ratio 1200 : 1 (Typical), ACR Function Available Viewable angle Right / Left : 85 degrees each, Up / Down: 80 degrees each (Typical) Response time 3.4ms (Black, White, Black), 1ms (Gray to Gray) Display Colors... -
Page 29: Dimensions
DIMENSIONS 647.0mm/25.5” 66.0mm/2.6” 600.0mm/23.6” 308.5mm/12.1” COMPLIANT TIMING PC Input Horizontal Vertical Video Mode Dot Clock Frequency Frequency 25.175MHz 31.469kHz 59.940Hz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.861kHz 72.809Hz 31.500MHz 36.000MHz 35.156kHz 56.250Hz SVGA 800 × 600 40.000MHz 37.879kHz 60.317Hz 49.500MHz 46.875kHz 75.000Hz 48.363kHz...
