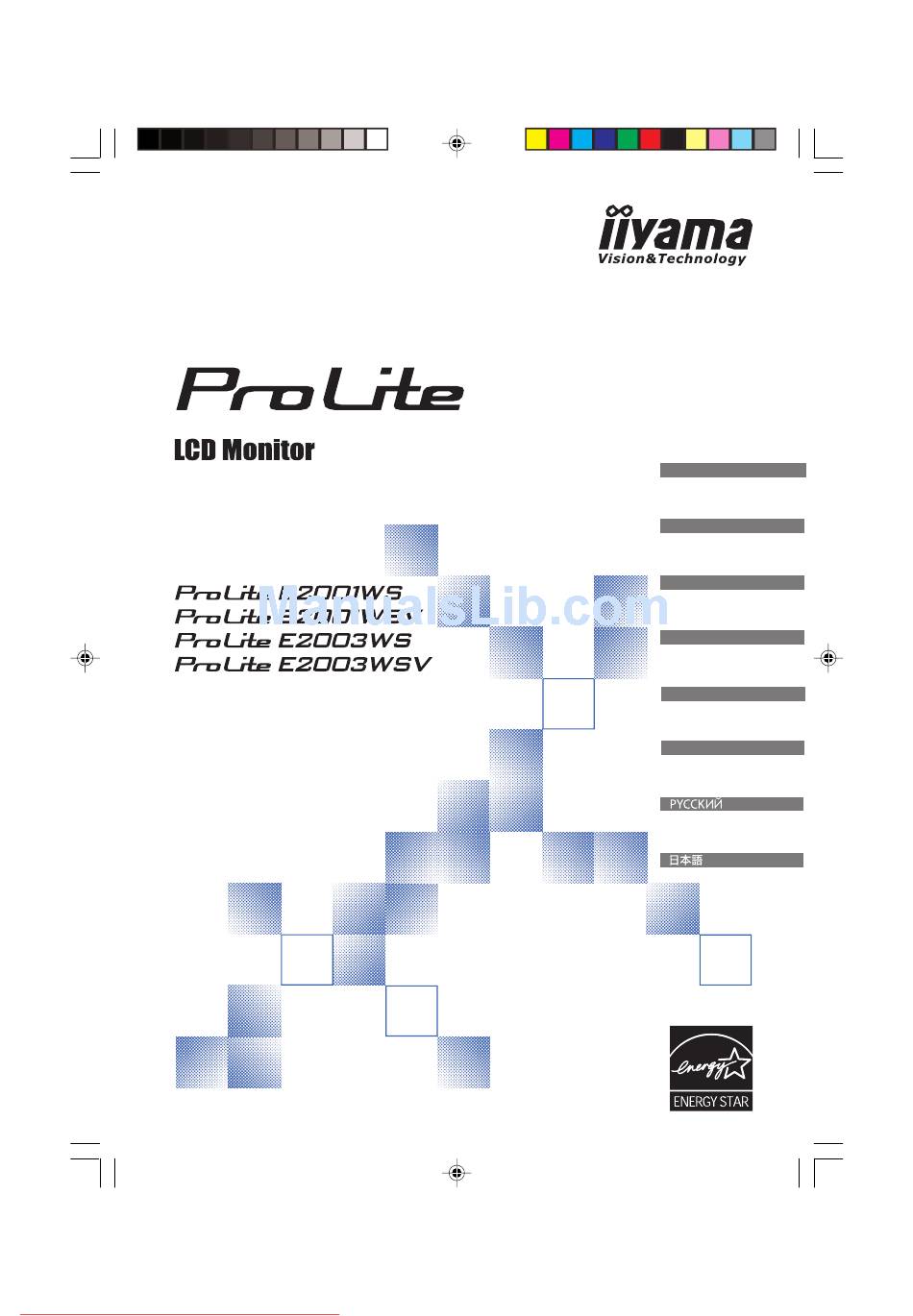

USER MANUAL
Thank you very much for choosing the
iiyama LCD monitor.
We recommend that you take a few
minutes to read carefully through this
brief but comprehensive manual before
installing and switching on the monitor.
Please keep this manual in a safe
place for your future reference.
PLE2001_3WS_WSV-e-M034B01.P65
Downloaded from ManualMonitor.com Manuals
1
ENGLISH
DEUTSCH
FRANCAIS
NEDERLANDS
ITALIANO
POLSKI
2007/09/11, 10:12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Iiyama prolite E2001WS
Summary of Contents for Iiyama prolite E2001WS
-
Page 1: User Manual
ENGLISH DEUTSCH FRANCAIS NEDERLANDS Thank you very much for choosing the ITALIANO iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this POLSKI brief but comprehensive manual before installing and switching on the monitor. - Page 2 Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.
-
Page 3: Fcc Declaration Of Conformity
To meet the FCC requirements, you should use a signal cable with ferrite core at both ends. CAUTION Changes or modifications not expressly approved by IIYAMA could void the users authority to operate the device under FCC compliance regulations. CANADIAN DEPARTMENT OF COMMUNICATIONS COMPLIANCE... -
Page 4: Table Of Contents
For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance (www.eiae.org). This information is only for U.S.A.. We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there. -
Page 5: For Your Safety
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself. -
Page 8: Before You Operate The Monitor
CHEKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. -
Page 9: How To Use The Stand
HOW TO USE THE STAND HOW TO USE THE STAND The monitor is shipped with the stand detached. Be sure to attach the stand before operating the display and remove if it is necessary to re-box. Install the Stand on a stable surface. The monitor may cause injury or damage if CAUTION it falls or is dropped. -
Page 10: Controls And Connectors
N Keyhole for Security Lock You can fasten a security lock and cable to prevent the monitor from being removed NOTE without your permission. * Available for ProLite E2001WS / E2003WS only. BEFORE YOU OPERATE THE MONITOR PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:19... -
Page 11: Connecting Your Monitor
The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor. -
Page 12: Computer Setting
Change to the desired signal timing listed on page 24: COMPLIANT TIMING. Windows 95/98/2000/Me/XP/Vista Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP/Vista by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 13: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 24. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 14 for SCREEN ADJUSTMENTS. -
Page 14: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Auto Adjust Only Analog Input Adjustment Item Problem / Option Button to Press Auto Adjust * Adjust H. / V. Position, Pixel Clock and Phase automatically. Direct * For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 14 for SCREEN ADJUSTMENTS. - Page 15 Geometry Only Analog Input Adjustment Item Problem / Option Button to Press Too left H. Position Too right Too low V. Position Too high Too narrow Pixel Clock Too wide To correct flickering text or lines Phase Color Adjustment Item Problem / Option Button to Press 9300K...
- Page 16 Language Adjustment Item Problem / Option Button to Press Español Spanish English English Français French Nederlands Dutch Language Japanese Deutsch German Italiano Italian Simplified Chinese Polski Polish Russian Recall Adjustment Item Problem / Option Button to Press Factory-preset data is restored. Recall All Return to Menu.
- Page 17 You can set the OverDrive level between 0 and 5. It will improve the gray level response time of the LCD panel. A higher level results in a faster response time. Input Select Available for ProLite E2001WS / E2003WS only. Adjustment Item Problem / Option Button to Press D-sub Select the Analog input.
-
Page 18: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http:// www.iiyama.com). - Page 19 C C C C C Press the Auto Button. (Auto Adjust) D D D D D Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust.
- Page 20 G G G G G Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern. NOTE NOTE In case the strong flicker or blurs remain on a part of the screen, repeat steps F and G because the Pixel Clock may not be adjusted correctly.
-
Page 21: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of E NERGY ® and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 22: Trouble Shooting
2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 23: Recycling Information
A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLESHOOTING 19 PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:19 Downloaded from ManualMonitor.com Manuals... -
Page 24: Appendix
APPENDIX SPECIFICATIONS ProLite E2001WS LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 51.1cm / 20.1" Pixel pitch 0.258mm H × 0.258mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical) Viewable angle Right / Left / Up / Down: 80 degrees each (Typical) - Page 25 ProLite E2001WSV LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 51.1cm / 20.1" Pixel pitch 0.258mm H × 0.258mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical) Viewable angle Right / Left / Up / Down: 80 degrees each (Typical) Response time 5ms (Black, white, black) Display Colors...
- Page 26 ProLite E2003WS LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 51.1cm / 20.1" Pixel pitch 0.258mm H × 0.258mm V Brightness 300cd/m (Typical) Contrast ratio 1000 : 1 (Typical), 2000 : 1 (DCR) Viewable angle Right / Left / Up / Down: 85 degrees each (Typical) Response time 5ms (Typical), 2ms (Gray to Gray) Display Colors...
- Page 27 ProLite E2003WSV LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 51.1cm / 20.1" Pixel pitch 0.258mm H × 0.258mm V Brightness 300cd/m (Typical) Contrast ratio 1000 : 1 (Typical), 2000 : 1 (DCR) Viewable angle Right / Left / Up / Down: 85 degrees each (Typical) Response time 5ms (Typical), 2ms (Gray to Gray) Display Colors...
-
Page 28: Dimensions
DIMENSIONS DIMENSIONS 480.0mm/18.9" 58.0mm/2.3" 436.0mm/17.2" 226.0mm/8.9" COMPLIANT TIMING Vertical Horizontal Video Mode Dot Clock Frequency Frequency 31.468kHz 59.941Hz 25.175MHz 640 × 480 37.500kHz 74.997Hz 31.500MHz 37.878kHz 60.317Hz 40.000MHz SVGA 800 × 600 46.875kHz 75.001Hz 49.500MHz 48.362kHz 60.002Hz 65.000MHz 1024 × 768 60.024kHz 75.039Hz 78.750MHz... -
Page 29: Connector Pin Assignment
T.M.D.S Data 1– T.M.D.S Data 1+ T.M.D.S Clock Ground T.M.D.S Data 1 Ground T.M.D.S Clock + T.M.D.S Clock – Compliant to VESA DDC. Available for ProLite E2001WS / E2003WS only. APPENDIX 25 M034B01 PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:19 Downloaded from ManualMonitor.com Manuals... - Page 30 Downloaded from ManualMonitor.com Manuals...
