Summary of Contents for Oceanic BUD
-
Page 1: Dive Computer

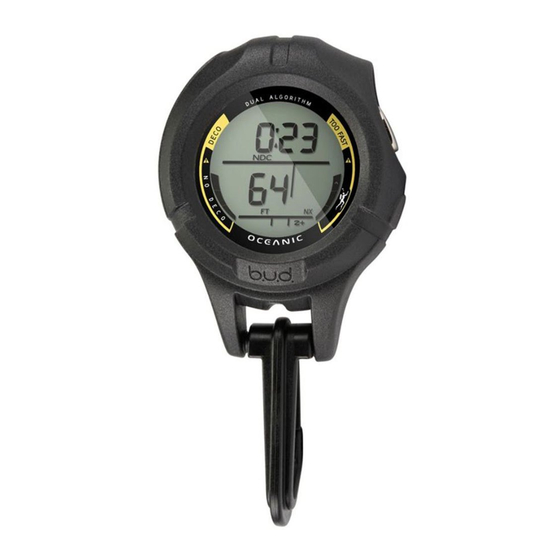

BUD OPERATING MANUAL DIVE COMPUTER OPERATING MANUAL © 2002 Design, 2011 Doc. No. 12-5259-r01 (7/21/11) -
Page 2: Table Of Contents
BUD OPERATING MANUAL CONTENTS DISPLAY LAYOUT .....................4 NOTICES ......................4 FEATURES & DISPLAYS ..................5 CONTROL BUTTON ..................6 BAR GRAPHS ....................6 TLBG ......................6 VARI ......................6 ALPHA/NUMERIC DISPLAYS ...............6 POWER SUPPLY ...................6 ACTIVATION & SETUP ..................7 ACTIVATION ....................8 SURF MAIN AND ALTS .................8 SURFACE SEQUENCE .................8... - Page 3 BUD OPERATING MANUAL Welcome OCEANIC THANK YOU for choosing the © 2002 Design, 2011 Doc. No. 12-5259-r01 (7/21/11)
-
Page 4: Display Layout
DECOMPRESSION MODEL The programs within the BUD simulate the absorption of nitrogen into the body by using a mathematical model. This model is merely a way to apply a limited set of data to a large range of experiences. The BUD dive computer model is based upon the latest research and experiments in decompression theory. -
Page 5: Features & Displays
BUD OPERATING MANUAL FEATURES & DISPLAYS © 2002 Design, 2011 Doc. No. 12-5259-r01 (7/21/11) -
Page 6: Control Button
POWER SUPPLY The BUD utilizes (1) type CR 2430 Lithium 3 volt cell. Expected use life is approximately 100 hours if (1) 1 hour dive per day is conducted each time the unit is activated, up to 300 hours if (3) 1 hour dives per day are conducted. -
Page 7: Activation & Setup
BUD OPERATING MANUAL ACTIVATION & SETUP © 2002 Design, 2011 Doc. No. 12-5259-r01 (7/21/11) -
Page 8: Activation
3,001 feet (916 meters), it will recalibrate depth and adjust calculations every 2,000 feet (610 meters). Fig. 9 - DIAGNOSTIC The BUD will also automatically activate by water contact. This is accomplished by bridging the gap between contacts located on the button and case. -
Page 9: Fly/Desat Time
Fig. 15 - SET FO2 • B (2 sec) to save the setting and access Set Algorithm. The BUD does not feature an FO2 50% Default selection. FO2 remains at the setting saved until changed. SET ALGORITHM, information includes (Fig. 16): >... -
Page 10: Set Units
BUD OPERATING MANUAL SET UNITS, information includes (Fig. 20): > Graphic SEt. > Graphic IMP (Imperial) or MET (Metric) flashing with FT (or M) icons. • B (< 2 sec) to toggle between IMP and MET. • B (2 sec) to save the setting and access SN. -
Page 11: Dive Mode
BUD OPERATING MANUAL DIVE MODE © 2002 Design, 2011 Doc. No. 12-5259-r01 (7/21/11) -
Page 12: Algorithm
FEATURES ALGORITHM The BUD is configured with 2 algorithms which allows you to choose which set of NDLs (No Deco Limits) will be used for nitrogen/oxygen calculations and displays relating to Plan and DTR (Dive Time Remaining). You can select to use either the DSAT or the Z+. The selection will lock in for 24 hours after the last dive. -
Page 13: No Deco Main And Alts
BUD OPERATING MANUAL NO DECO MAIN, information includes (Fig. 22) - > DTR (hr:min) with NDC (or O2) icon. > Current Depth with FT (or M) icon. > Max Depth with MAX and FT (or M) icons > EDT (Elapsed Dive Time) with DIVE and min icons >... -
Page 14: Cv (Conditional Violation)
BUD OPERATING MANUAL DECO STOP MAIN, information includes (Fig. 28) - > Stop Time (hr:min) with STOP icon. > Current Depth with FT (or M) icon. > Stop Depth with STOP and FT (or M) icons. > NX, CF, DSAT (or Z+), icons - those that apply. -
Page 15: Dv 3 (Delayed Violation 3)
If you descend deeper than the MOD*, DTR and Current Depth will be displayed as with the Depth ones flashing (Fig. 35). Max Depth on the ALT will also be displayed as 3 dashes. *MOD is the Max Operating Depth at which the BUD can properly perform calculations or provide accurate display information. Refer to the Specifications in the back. -
Page 16: High O2
BUD OPERATING MANUAL HIGH O2 Warning >> when 80 to 99% (240 OTU). Alarm >> at 100% (300 OTU). When O2 reaches the Warning Level; the O2 value will flash (in place of DTR or Deco Stop Time) for 10 seconds (Fig. 42). -
Page 17: General
BUD OPERATING MANUAL GENERAL © 2002 Design, 2011 Doc. No. 12-5259-r01 (7/21/11) -
Page 18: Care And Cleaning
Instrument Lens Protector. Small scratches will naturally disappear underwater. • Soak and rinse the BUD in fresh water at the end of each day of diving, and check to ensure that the areas around the Low Pressure (Depth) Sensor (Fig. 45a) and button are free of debris or obstructions. -
Page 19: Altitude Sensing And Adjustment
> No adjustments are made during any time that the Wet Contacts are bridged. > When diving in high altitude waters from 3,001 to 14,000 feet (916 to 4,270 meters), the BUD automatically adjusts to these conditions providing corrected Depth, and reduced No Deco and O2 Times at intervals of 1,000 feet (305 meters). -
Page 20: Z+ Algorithm Ndl Chart
BUD OPERATING MANUAL Z+ ALGORITHM >> NDLS (HR:MIN) AT ALTITUDE (IMPERIAL) Altitude 3001 4001 5001 6001 7001 8001 9001 10001 11001 12001 13001 (feet) 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000 Depth ( FT ) 30 3:17... -
Page 21: Specifications
BUD OPERATING MANUAL SPECIFICATIONS CAN BE USED AS • Dive Computer (Air or Nitrox) DIVE COMPUTER PERFORMANCE • Buhlmann ZHL-16c based Z+, or DSAT based, algorithm • No Deco limits closely follow PADI RDP • Decompression in agreement with Buhlmann ZHL-16c and French MN90 •... -
Page 22: Inspection/Service Record
Serial Number: ___________________________________________________________________________________________________ Firmware Rev: ___________________________________________________________________________________________________ Date of Purchase: ___________________________________________________________________________________________________ Purchased from: ___________________________________________________________________________________________________ Below to be filled in by an Authorized Oceanic Dealer: Date Service Performed Dealer/Technician OCEANIC WORLD WIDE OCEANIC USA 2002 Davis Street San Leandro, CA 94577 Tel: 510/562-0500 Fax: 510/569-5404 Web: www.OceanicWorldwide.com... - Page 23 BUD OPERATING MANUAL NOTES © 2002 Design, 2011 Doc. No. 12-5259-r01 (7/21/11)
- Page 24 BUD OPERATING MANUAL DIVE COMPUTER OPERATING MANUAL © 2002 Design, 2011 Doc. No. 12-5259-r01 (7/21/11)
