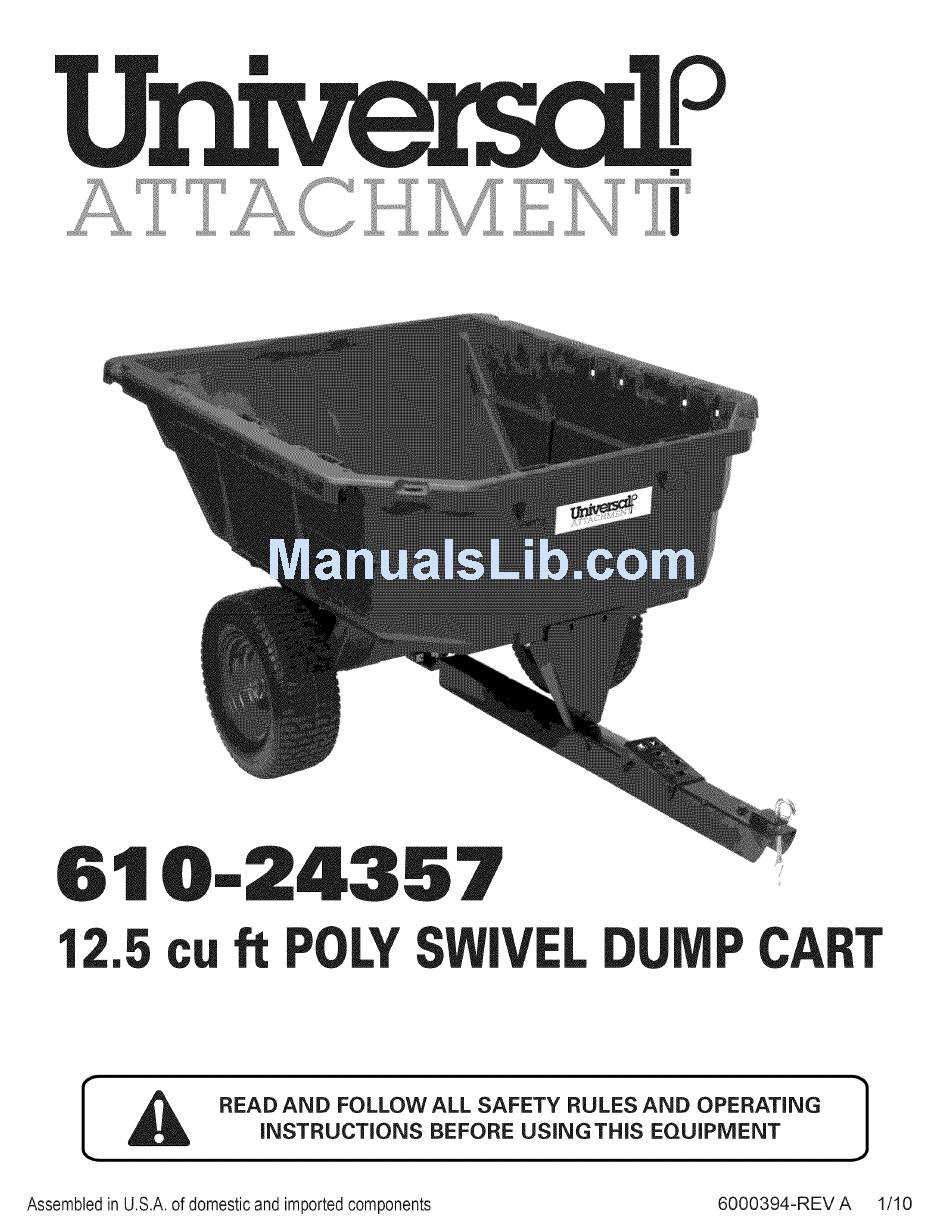

- Page 1 READ AND FOLLOW ALL SAFETY RULES AND OPERATING iNSTRUCTiONS BEFORE USINGTHIS EQUIPMENT Assembled in U.S.A. of domestic and imported components 6000394-REV 1/10...
- Page 2 Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards, Obey all safety messages that follow this symbol to avoid possible injury or death, Read and understand all safety rules and operating instructions before using this tractor attachment.
-
Page 3: Tools Required
Carton Contents 1 (xl) 2 (xl) 19 (xl) 20 (xl) 22 (x2) 27 (xl) 24 (x2) 23 (x4) 25 (x12) 26 (x12) 28 (x3) TOOLS REQUIRED FOR ASSEMBL Y: • 1/2" Wrench or Socket • Grease Gun... - Page 4 Assembly Instructions Attach Undercarriage to Poly Body and tighten hardware. 26__r Attach Front Support to Poly Body and tighten hardware. Insert Axle into Undercarriage halfway as shown. Center Spacer inside Swivel Clevis and align with Axle.
- Page 5 Assembly Instructions Slide Axle completely through Undercarriage; Swivel Clevis and Spacer must be captured by Axle. Align Drawbar with Front Support and press down to latch. Slide Washers, Spacers and Wheels onto Axle and secure with Hairpins as shown. _ Install Hitch Pin as shown.
- Page 6 Operating Instructions Before Using Dump Cart: Apply grease to wheels using grease gun until grease can be seen squeezing out from both sides of the wheel. Check tire pressure and inflate to 28 psi if needed. Read all Safety Rules found on page 1. How to Use Dump Cart: Attach Dump Cart to your tractor using the supplied hitch pin.
- Page 7 Do-It- Yourseff Accessories 35-_" ] 3" 31-_ USE 1/2" PLYWOOD USE STANDARD 2 X 4 34" 45" 16" 13" 13" -- USE NOMINAL GRADE C I X 3...
- Page 8 United States. In the space below record the purchase date of your Dump Cart. Model Number 610-24357 Purchase Date Keep this Owner's Manual and your receipt in a safe place for future reference. After the two year warranty...
- Page 9 Repair Parts _'_17 ITEM PART NO PART NO DESCRI PTION DESCRIPTION ITEM 311161 6000368 Poly Body Spring Washer 6000404 6000325 Undercarriage Latch Spring 6000315 6000312 Swivel Clevis Drawbar Assembly (incl 4-18) 6000383 Drawbar 401121 Hitch Bracket 6000369 Shoulder Bolt 6000310 Front Support 3000720 3/8"...
