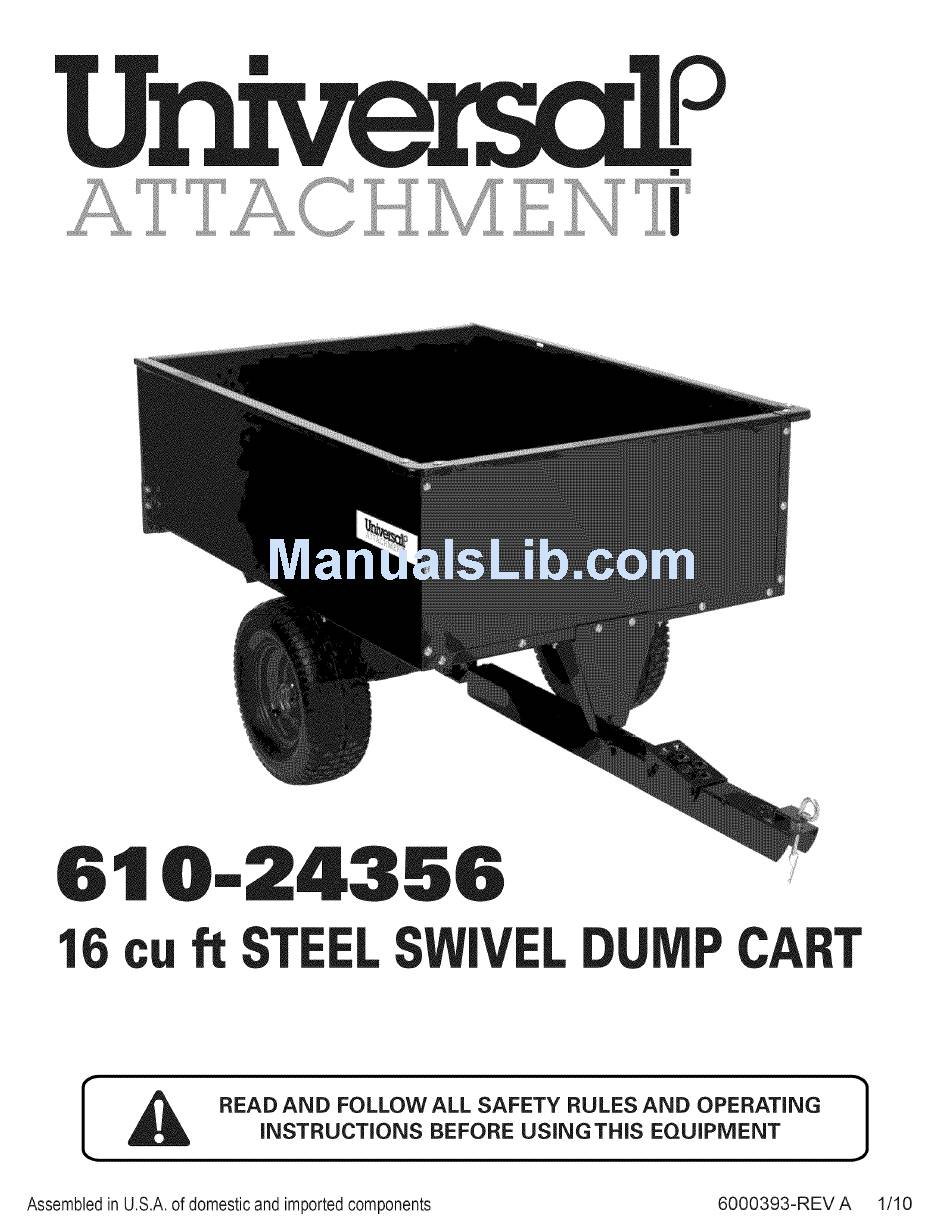

- Page 1 READ AND FOLLOW ALL SAFETY RULES AND OPERATING iNSTRUCTiONS BEFORE USINGTHIS EQUIPMENT Assembled in U.S.A. of domestic and imported components 6000393=REV 1/10...
- Page 2 Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards, Obey all safety messages that follow this symbol to avoid possible injury or death, Read and understand all safety rules and operating instructions before using this tractor attachment.
-
Page 3: Tools Required For Assembly
Carton Contents 3 (xl) 3 (x2) 6 (x2) 29 (xl) 27 (x2) 28 (xl) 41 (xl) 32 (x4) 31 (x2) 30 (xl) 33 (x48) 35 (x2) 34 (x46) 42 (x3) 37 (xl) 39 (xl) 40 (x3) 38 (x2) TOOLS REQUIRED FOR ASSEMBL Y: 1/2"... - Page 4 Assembly Instructions Place Body Halves on a smooth, flat surface so they are square and fasten together with hardware as shown. Attach Front Support to Body and tighten hardware. Attach Undercarriage to Body and tighten hardware.
- Page 5 Assembly Instructions Attach Front Gate to inside of Body as shown and tighten hardware. !rlr,, ,' it ir Attach Corners to Body and tighten hardware. _'_33 Insert Axle into Undercarriage halfway as shown. Center Spacer inside Swivel Clevis and align with Axle.
- Page 6 Assembly Instructions Slide Axle completely through Undercarriage; Swivel Clevis and Spacer must be captured by Axle. Align Drawbar with Front Support and press down to latch. Slide Washers, Spacers and Wheels onto Axle and secure with Hairpins as shown. Attach Support Bar to Body behind flange loosely. BEHIND FLANGE 26 _...
- Page 7 Assembly Instructions Attach Corner Gussets to Body and tighten all hardware. Attach Latch Bars to Handle as shown. Do not tighten hardware completely; Latch Bars must rotate freely. Slide Grip onto Handle. Slide Latch Bars into Tailgate retainers as shown. Align Handle with mounting hole on Tailgate.
- Page 8 Assembly Instructions Slide Washer between Handle and Tailgate and secure with hardware. Handle must be tight, yet free to rotate. 1141 Attach Tailgate to Body as shown. Do not tighten hardware completely; Tailgate must rotate freely. Install Hitch Pin as shown.
- Page 9 Operating Instructions Before Using Dump Cart: Apply grease to wheels using grease gun until grease can be seen squeezing out from both sides of the wheel. Check tire pressure and inflate to 28 psi if needed. Read all Safety Rules found on page 1. How to Use Dump Cart: Attach Dump Cart to your tractor using the supplied hitch pin.
-
Page 10: Warranty
United States. In the space below record the purchase date of your Dump Cart. Model Number 610-24356 Purchase Date Keep this Owner's Manual and your receipt in a safe place for future reference. After the two year warranty... - Page 11 Repair Parts 33--------_ 35,. 39_29\ ..,._40 34.-- _ "33 • 'i I \o / '-------19 "\ 42------------J-_-'" 11 _ ITEM PART NO DESCRIPTION QT"( ITEM PART NO DESCRI PTION 6000399 Hitch Bracket Body Half, Right 401121 6000400 Corner Body Half, Left 401051 401062 Undercarriage...
