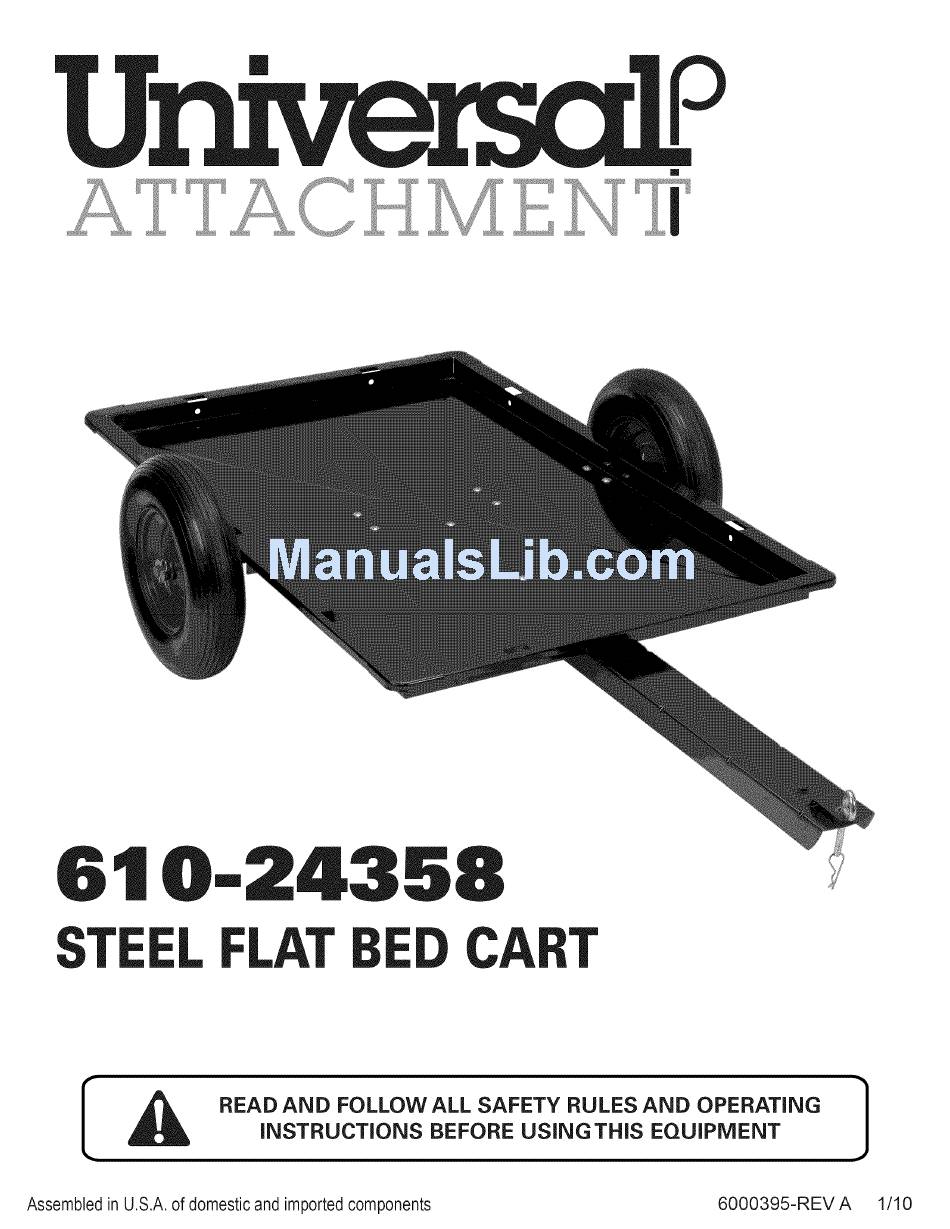

- Page 1 READ AND FOLLOW ALL SAFETY RULES AND OPERATING iNSTRUCTiONS BEFORE USINGTHIS EQUIPMENT Assembled in U.S.A. of domestic and imported components 6000395=REV 1/10...
- Page 2 Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards, Obey all safety messages that follow this symbol to avoid possible injury or death, Read and understand all safety rules and operating instructions before using this tractor attachment.
- Page 3 Carton Contents 2 (xl) 7 (xl) 9(xl) 12 (x2) 11 (x4) 10 (x3) 13 (x12) 14 (x12) TOOLS REQUIRED FOR ASSEMBL Y: Grease Gun • Large Flat Screwdriver • 1/2" Wrench or Socket...
- Page 4 Assembly Instructions Attach Undercarriage to Body and tighten hardware. Attach Drawbar to Body and tighten hardware. Insert Axle into Undercarriage and install Washers and Wheels and secure with Hairpins as shown. Install Hitch Pin as shown.
- Page 5 Operating Instructions Before Using Flat Bed Cart: Apply grease to wheels using grease gun until grease can be seen squeezing out from both sides of the wheel. Check tire pressure and inflate to 30 psi if needed. Read all Safety Rules found on page 1. How to Use Flat Bed Cart: Attach Flat Bed Cart to your tractor using the supplied hitch pin.
- Page 6 United States. In the space below record the purchase date of your Flat Bed Cart. Model Number 610-24358 Purchase Date Keep this Owner's Manual and your receipt in a safe place for future reference. After the two year warranty...
- Page 7 Repair Parts 13.._ ITEM PART NO DESCRIPTION ITEM PART NO DESCRI PTION 6000423 Axle Flat Bed Body 6000422 6000426 Hitch Pin Drawbar Assembly (incl 3-6) 300083 6000425 Drawbar 300084 Hairpin, 2-5/16" 401121 Hitch Bracket 3000721 3/4" SAE Flat Washer 300052 3/8-16 x 3/4"...
