Summary of Contents for Hanns.G JW199D

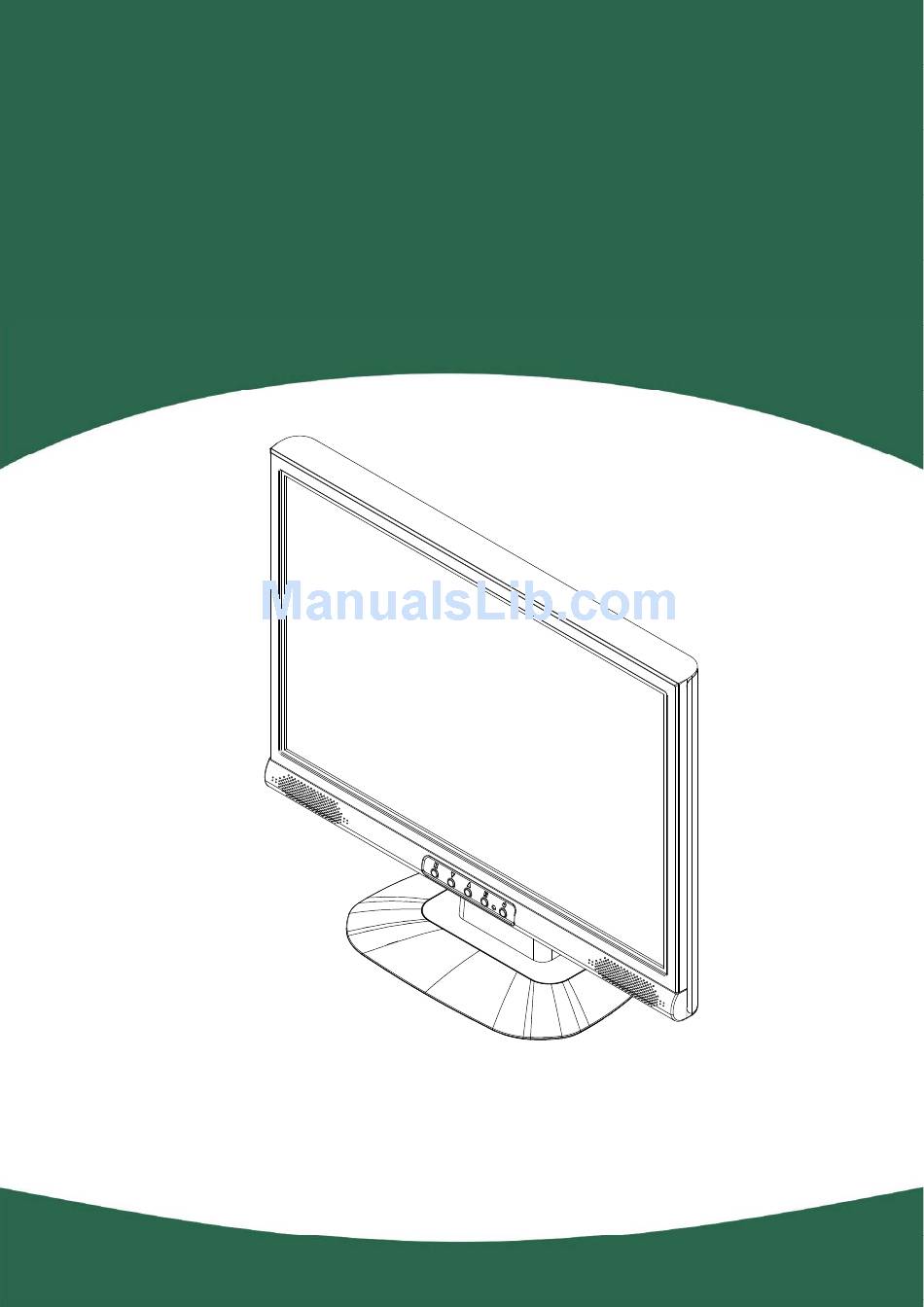

- Page 1 19 inch Wide Screen TFT LCD Monitor JW199D USER’S MANUAL...
- Page 2 User’s Manual Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 3 User’s Manual Page1-2 stands for TCO’99 model only. Please see back label for model distinction. Congratulations! You have just purchased a TCO'99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
- Page 4 User’s Manual computers. The labeling scheme is developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), by Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation), and by Statens Energimyndighet (The Swedish National Energy Administration). Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.
- Page 5 User’s Manual TCO Development SE-114 94 Stockholm, Sweden Fax: +46 8 782 92 07 Email (Internet): development@tco.se Current information regarding TCO'99 approved and labeled products may also be obtained via the Internet, using the address: http://www.tco-info.com/ Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings.
- Page 6 User’s Manual TCO'99 requirement states that batteries, the color-generating layers of display screens and the electrical or electronics components must not contain any cadmium. Mercury Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury.
-
Page 7: Recycling Information
User’s Manual Recycling Information We, the Hanns.G care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life. These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels. -
Page 8: Table Of Contents
User’s Manual TABLE OF CONTENTS SAFETY NOTICE ...................9 PRECAUTIONS ..................9 SPECIAL NOTES ON LCD MONITORS ...........10 BEFORE YOU OPERATE THE MONITOR ............11 FEATURES ....................11 CHECKING THE CONTENTS OF THE PACKAGE ........11 INSTALLATION INSTRUCTIONS .............12 POWER......................12 MAKING CONNECTIONS .................13 ADJUSTING THE VIEWING ANGLE ............14 OPERATING INSTRUCTIONS...............15 GENERAL INSTRUCTIONS..............15 FRONT PANEL CONTROL ...............16... -
Page 9: Safety Notice
User’s Manual SAFETY NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. -
Page 10: Special Notes On Lcd Monitors
User’s Manual SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn • off the Power Switch and then turn it on again to make sure the flicker disappears. You may find slightly uneven brightness on the screen depending on the desktop pattern •... -
Page 11: Before You Operate The Monitor
User’s Manual BEFORE YOU OPERATE THE MONITOR FEATURES 19” Wide screen TFT Color LCD Monitor • Crisp, Clear Display for Windows • Recommended Resolutions: 1440 X 900 @60Hz • ® EPA ENERGY STAR • Ergonomic Design • Space Saving, Compact Case Design •... -
Page 12: Installation Instructions
User’s Manual INSTALLATION INSTRUCTIONS Install Remove Figure.1. Installing and Removing the Base INSTALLATION: 1. Align the monitor with the opening in the base. 2. Note that the longer section of the base points forward. 3. Snap the monitor into its base. A clear click sound will affirm that the base is connected correctly. -
Page 13: Making Connections
User’s Manual MAKING CONNECTIONS CONNECTING TO A PC Turn off your computer before performing the procedure below. 1. Connect one end of the D-Sub cable to the back of the monitor and connect the other end to the computer’s D-Sub port. 2. -
Page 14: Adjusting The Viewing Angle
User’s Manual ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor, then adjust • the monitor’s angle to your own preference. Hold the stand so you do not topple the monitor when you change the monitor’s angle. •... -
Page 15: Operating Instructions
User’s Manual OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences. -
Page 16: Front Panel Control
User’s Manual FRONT PANEL CONTROL Power Button: • Press this button to switch ON/OFF of monitor’s power. Power Indicator: • — Power On mode. Orange — Power Saving mode. MENU / ENTER: • 1. Activate the OSD menu or adjust the function settings and confirmation or 2. -
Page 17: How To Adjust A Setting
User’s Manual HOW TO ADJUST A SETTING FUNCTION DESCRIPTION Select the 「Brightness」 option on the 「Main Menu」 . Enter the option by Brightness pressing the button again, and adjust the level. 「 」 Select the「Contrast」option on the「Main Menu」. Enter the option by Contrast pressing the button again, and adjust the level. - Page 18 User’s Manual Select the 「Clock Adjustment」option to reduce the vertical flicker of Clock Adjustment characters on the screen. Enter the option and adjust the level. Select the「Phase Adjustment」option to reduce the horizontal flicker of Phase Adjustment characters on the screen. Enter the option and adjust the level. Exit Exit the OSD menu function.
- Page 19 User’s Manual Select the「OSD Color」setting option to adjust the color of the OSD. OSD Color Enter the option and adjust the level. Select the 「Language」 option to change the language of the OSD. Language Enter the option and select a language. (Reference only, the OSD Language is depended on selected model) Exit Exit the OSD menu function.
-
Page 20: Plug And Play
User’s Manual PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bidirectional data channel based on the I²C protocol. -
Page 21: Technical Support (Faq)
User’s Manual TECHNICAL SUPPORT (FAQ) Q & A FOR GENERAL PROBLEMS PROBLEM & QUESTION POSSIBLE SOLUTION *Check if the Power Switch is in the ON position Power LED is not on *Power Cord should be connected *Check if the PC system is Plug & Play compatible *Check if the Video Card is Plug &... -
Page 22: Error Message & Possible Solutions
User’s Manual ERROR MESSAGE & POSSIBLE SOLUTIONS CABLE NOT CONNECTED : 1. Check that the signal-cable is properly connected, If the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table. -
Page 23: Appendix
User’s Manual APPENDIX SPECIFICATIONS Driving system TFT Color LCD LCD Panel Size 19.0" Pixel pitch 0.2835mm(H) x 0.2835mm(V) H-Frequency 30KHz – 80KHz Video V-Frequency 55 – 75Hz Display Colors 16.2M Colors Max. Resolution 1440 x 900 @75Hz Plug & Play VESA DDC2B ON Mode ≤42W...
