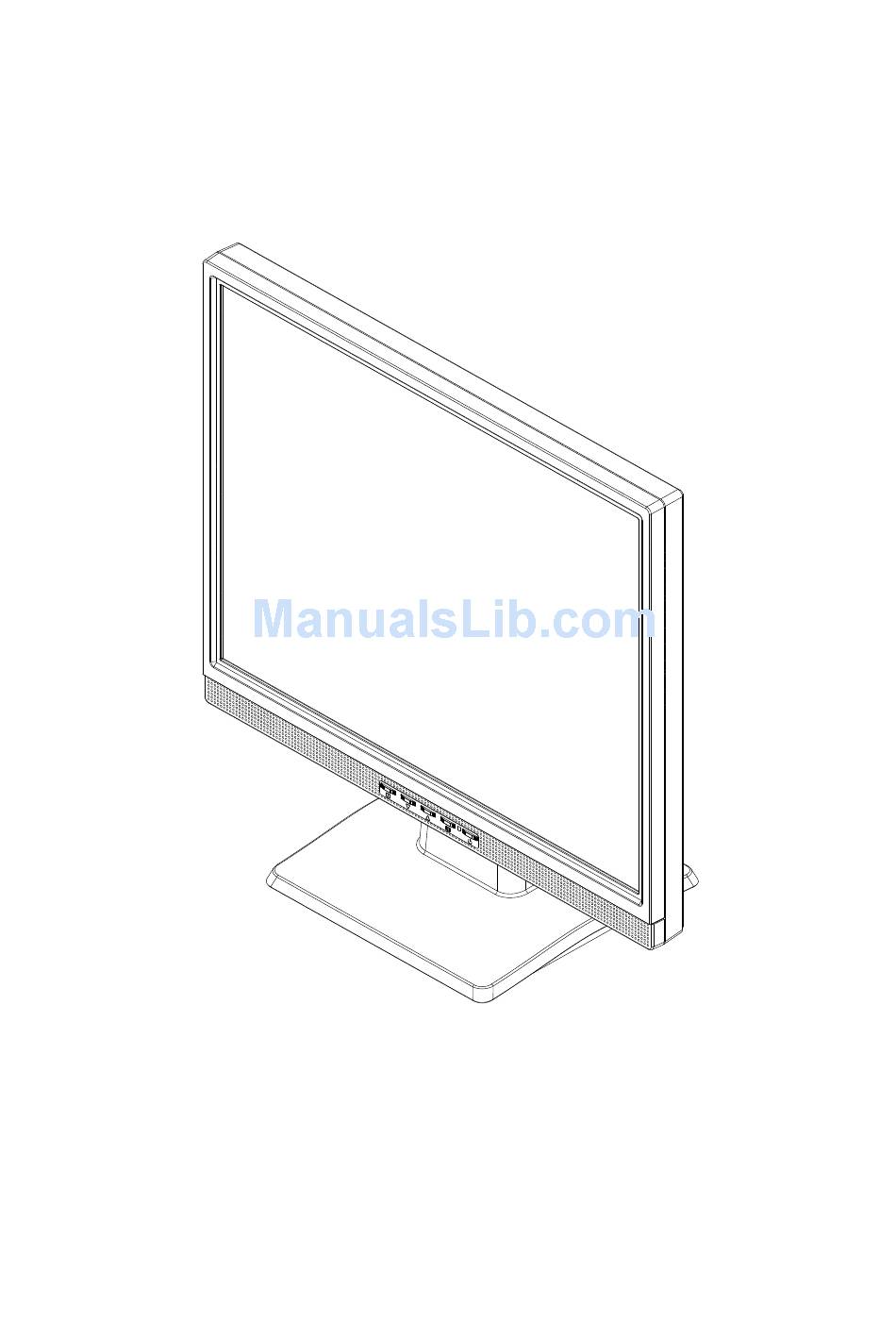

- Page 1 19 inch TFT LCD Monitor JC199D USER’S MANUAL...
- Page 2 Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.
-
Page 3: Recycling Information
These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels. On the contrary, other material can be classified to hazardous and poisoned substances. We strongly encourage you to contact the provided information to recycle this product. For more information, please visit www.hannsg.com... -
Page 4: Operation Instructions
FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS) This monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide proper protection against harmful interference to a residential installation. -
Page 5: Table Of Contents
Content Safety Precautions...1 First Setup ...2 Quick Installation...2 Front View of the Product ...3 Rear View of the Product ...3 Using On Screen Display (OSD) Functions ...4 Supporting Timing Modes ...7 Technical Information...8 Care and Maintenance...9 Troubleshooting ...9... -
Page 6: Safety Precautions
WARNINGS: This monitor should be operated only at the correct power sources indicated on the label on the rear end of the monitor. If you’re unsure of the power supply in your residence, consult your local dealer or power company. -
Page 7: First Setup
Connect the DVI cable from DVI output of computer to the DVI input of the monitor. 3. Connect power cord Connect the power cord to a properly grounded AC outlet, then to the monitor. 4. Power-ON computer and monitor Power-ON the computer, then Power-ON the monitor. -
Page 8: Front View Of The Product
Front View of the Product ➊ OSD TURN ON/OFF ➋ SCROLL DOWN/DECREASE ➌ SCROLL UP/INCREASE Rear View of the Product ➐ POWER INPUT ➑ AUDIO INPUT ➊ ➋ ➌ ➍ ➎ ➏ ➍ CONFIRM SELECTION ➎ POWER ON/OFF ➏ LED INDICATOR ➐... -
Page 9: Using On Screen Display (Osd) Functions
Using On Screen Display (OSD) Functions Display main menu. Exit from OSD menu. Auto adjust the image when not in main menu. Confirm the selection. Select the desired item when in OSD menu. When not in OSD menu, it is to immediately activate Contrast/ Brightness. - Page 10 Short Cuts Function from the button(s) To auto adjust Horizontal Position, Vertical Position, Phase Auto Adjust : (Fine Tune) and Clock (H. Size) of the screen. To adjust the foreground white level of screen image. Contrast : : increase contrast, To adjust the luminance of the video.
- Page 11 Sharpness : To adjust the clarity of a non-SXGA (1280x1024) signal with button. To set up Language Select, Resolution Notice, OSD Position, Setup Menu : OSD Time Out, and Input Select (Analog). To allow users to choose from available languages. Language Select : Resolution Notice : Resolution Notice is to remind you set the best quality...
-
Page 12: Supporting Timing Modes
VESA VESA Warning : Do not set the graphic card in your computer to exceed these maximum refresh rates. Doing so may result in permanent damage to your monitor. 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz... -
Page 13: Technical Information
Technical Information Technical Specification LCD Panel Power Management Displayable Resolution Pixel Dimension LCD Display Color Tilt Active Display Area Temperature Compliance Power Speaker 19.0” TFT Energy Star compliant VESA DPMS compatible < 2 W SXGA 1280 x 1024 max. Vertical Frequency 75Hz max. 0.294 x 0.294 mm 16.2M (6 bits + FRC/ color) 0°~20°... -
Page 14: Care And Maintenance
Never remove the rear cover of your monitor cabinet. The display unit inside contains high-voltage parts and may cause electric shock to human bodies. Never try to repair your monitor yourself. Always call your service center or a qualified technician to fix it. - Page 15 Connect the monitor to another computer. According to WEEE regulation , this monitor can't be handled as normal trash in Europe when it is out of usage. Please refer to the recycle information from our website to handle it.
