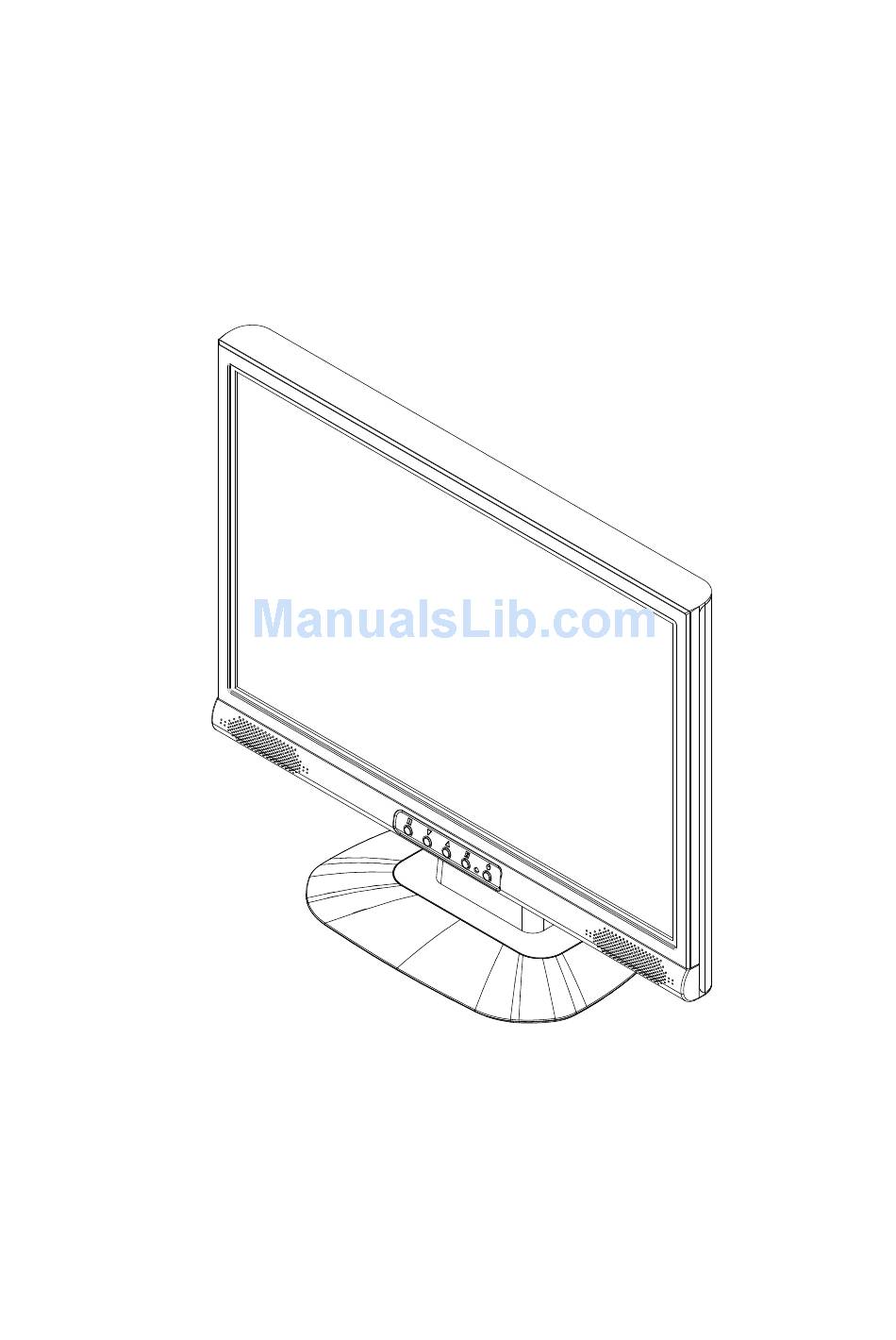

- Page 1 19 inch TFT LCD Monitor JW199D USER’S MANUAL...
- Page 2 Page1-2 stands for TCO’99 model only. Please see back label for model distinction. Congratulations! You have just purchased a TCO'99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
- Page 3 computers. The labeling scheme is developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), by Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation), and by Statens Energimyndighet (The Swedish National Energy Administration). Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.
-
Page 4: Environmental Requirements
TCO Development SE-114 94 Stockholm, Sweden Fax: +46 8 782 92 07 Email (Internet): development@tco.se Current information regarding TCO'99 approved and labeled products may also be obtained via the Internet, using the address: http://www.tco-info.com/ Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. - Page 5 TCO'99 requirement states that batteries, the color-generating layers of display screens and the electrical or electronics components must not contain any cadmium. Mercury Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury.
-
Page 6: Recycling Information
These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels. On the contrary, other material can be classified to hazardous and poisoned substances. We strongly encourage you to contact the provided information to recycle this product. For more information, please visit www.hannsg.com... -
Page 7: Operation Instructions
FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS) This monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide proper protection against harmful interference to a residential installation. -
Page 8: Table Of Contents
Content Safety Precautions...1 First Setup ...2 Quick Installation...2 Front View of the Product ...3 Rear View of the Product ...3 Using On Screen Display (OSD) Functions ...4 Supporting Timing Modes ...7 Technical Information...8 Care and Maintenance...9 Troubleshooting ...9... -
Page 9: Safety Precautions
WARNINGS: This monitor should be operated only at the correct power sources indicated on the label on the rear end of the monitor. If you’re unsure of the power supply in your residence, consult your local dealer or power company. -
Page 10: First Setup
Connect the DVI cable from DVI output of computer to the DVI input of the monitor. 3. Connect power cord Connect the power cord to a properly grounded AC outlet, then to the monitor. 4. Power-ON computer and monitor Power-ON the computer, then Power-ON the monitor. -
Page 11: Front View Of The Product
Front View of the Product ➊ OSD TURN ON/OFF ➋ SCROLL DOWN/DECREASE ➌ SCROLL UP/INCREASE Rear View of the Product ➐ ➐ POWER INPUT ➑ AUDIO INPUT ➊ ➋ ➌ ➍ ➎ ➏ ➍ CONFIRM SELECTION ➎ POWER ON/OFF ➏ LED INDICATOR ➑... -
Page 12: Main Menu
Using On Screen Display (OSD) Functions Display main menu. Exit from OSD menu. Auto adjust the image when not in main menu. Confirm the selection. Select the desired item when in OSD menu. When not in OSD menu, it is to immediately activate Contrast/ Brightness. - Page 13 Short Cuts Function from the button(s) Auto Adjust : To auto adjust Horizontal Position, Vertical Position, Phase (Fine Tune) and Clock (H. Size) of the screen. Contrast : To adjust the foreground white level of screen image. : increase contrast, Brightness : To adjust the luminance of the video.
- Page 14 Sharpness : To adjust the clarity of a non-WXGA (1440x900) signal with button. Setup Menu : To set up Language Select, Resolution Notice, OSD Position, OSD Time Out, and Input Select. Language Select : To allow users to choose from available languages. Resolution Notice : Resolution Notice is to remind you set the best quality for the image.
-
Page 15: Supporting Timing Modes
VESA VESA Warning : Do not set the graphic card in your computer to exceed these maximum refresh rates. Doing so may result in permanent damage to your monitor. 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz... -
Page 16: Technical Information
Compliance Power Speaker Note : The Maximum Resolution will depends on the display card supporting. Related issue can refer to www.hannsg.com FAQ section. 19.05” TFT Energy Star compliant VESA DPMS compatible < 1 W WXGA 1440 x 900 max. Vertical Frequency 75Hz max. -
Page 17: Care And Maintenance
Never remove the rear cover of your monitor cabinet. The display unit inside contains high-voltage parts and may cause electric shock to human bodies. Never try to repair your monitor yourself. Always call your service center or a qualified technician to fix it. - Page 18 Connect the monitor to another computer. According to WEEE regulation , this monitor can't be handled as normal trash in Europe when it is out of usage. Please refer to the recycle information from our website to handle it.
