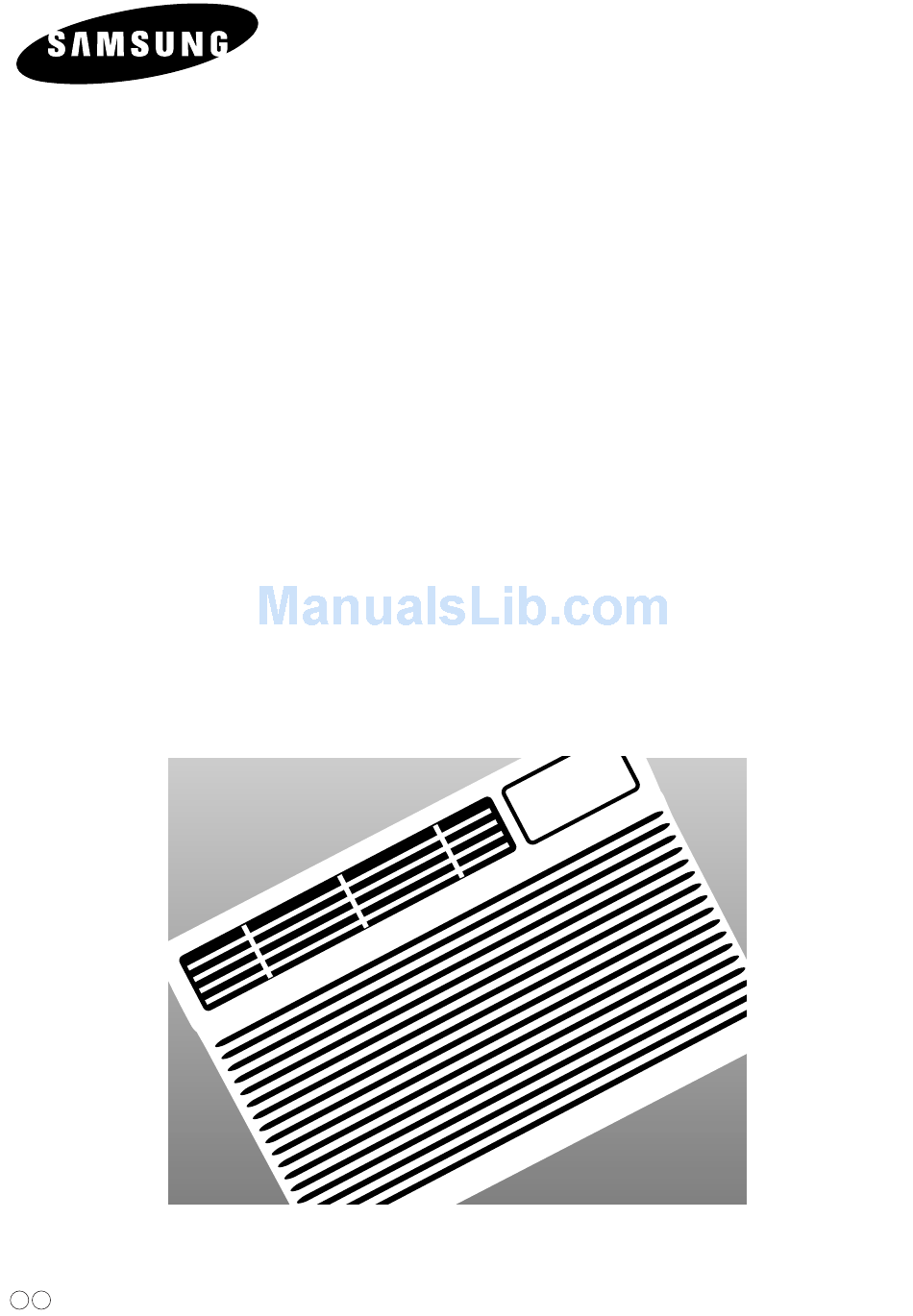

- Page 1 OWNER’S INSTRUCTIONS AW05N0YAD AW05N0YAH Window-type Room Air Conditioner (Cool) DB98-16465A(4)
-
Page 2: Safety Precautions
Register your product at www.samsung.com/global/register Safety Precautions The following safety precautions must be taken when using your air conditioner. Risk of electric shock. • Can cause injury or death. • Disconnect all WARNING remote electric power supplies before servicing, installing or cleaning. - Page 3 Contents REPARING ONDITIONER Safety Precautions ..................Description of Each Component ..............Getting Started ....................PERATING ONDITIONER Cooling Your Room ..................Switching the Air Conditioner Off ..............Adjusting the Air Flow Direction Horizontally ..........ECOMMENDATIONS Power Failure ....................Temperature and Humidity Ranges ..............Cleaning Your Air Conditioner ................
-
Page 4: Description Of Each Component
Description of Each Component The design and shape are subject to change. Air outlet Inner air flow blades (right/left orientation) Air outlet Air inlet (Inside) Air inlet (Outside) Adhesive bottom gasket Air filter (Inside) (Refer to page 13) Power plug (The type of power plug may differ, depending on the local power supply.) -
Page 5: Getting Started
Getting Started You have just purchased a Samsung window-type room air conditioner which should be installed following your Owner’s Instructions. Your Owner's Instructions contain much valuable information on using your air conditioner. Please take the time to read them as they will help you take full advantage of the unit's features. -
Page 6: Cooling Your Room
Cooling Your Room You must select the COOL mode if you wish to adjust the: Cooling temperature Fan speed when Cooling Turn the operating mode selection dial and set it to “ Hi Cool ” , “ Med Cool ” or “ Low Cool ”. Result: The air conditioner starts up in cool mode. -
Page 7: Switching The Air Conditioner Off
Switching the Air Conditioner Off You can switch the air conditioner off whenever you want. To switch the unit off, simply set the operating mode selection dial to the position. " " Result: The air conditioner stops operating. Adjusting the Air Flow Direction Horizontally Depending on the position of the unit in your room, you can adjust the orientation of the inner air flow blades on the unit. -
Page 8: Power Failure
Power Failure If a power failure occurs, the air conditioner is switched off. When the power comes back on, the air conditioner starts up again automatically. Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges within which the air conditioner can be used. Mode Indoor Outdoor... -
Page 9: Cleaning Your Air Conditioner
Cleaning Your Air Conditioner Be sure to clean the air filter periodically to maintain the air conditioner in the best condition for a long period of time. When cleaning the air conditioner, turn it off and pull out the power plug. Open the front grille by pulling the tabs on both sides of the grille. -
Page 10: Solving Common Problems
Solving Common Problems Before contacting an authorized service center, perform the following simple checks. They may save you the time and the expense of an unnecessary call. Problem Explanation / Solution Check for a power failure. The air conditioner Check the voltage. does not operate at all. -
Page 11: Technical Specifications
Technical Specifications Design and specifications are subject to change without notice. Model Power Supply AW05N0YAD 115V~, 60Hz AW05N0YAH... - Page 12 Installation Before installation, be sure to check the installation area or the air conditioner, and drain hose. Checkpoints prior to installation Check the cabinet and front grille of the unit for any harmful defects such as scratches. Be sure to check the power supply. - Refer to the specifications on the label attached to the unit.
- Page 13 Install an adhesive bottom gasket to prevent air and insects from getting into the room. Strip an adhesive bottom gasket off. Seal an adhesive bottom gasket to the bottom of the air conditioner. Adhesive bottom gasket Installation of the Drain Tube Rear Fix the drain tube as shown in the figure.
- Page 14 THIS AIR CONDITIONER IS MANUFACTURED BY: ELECTRONICS...
