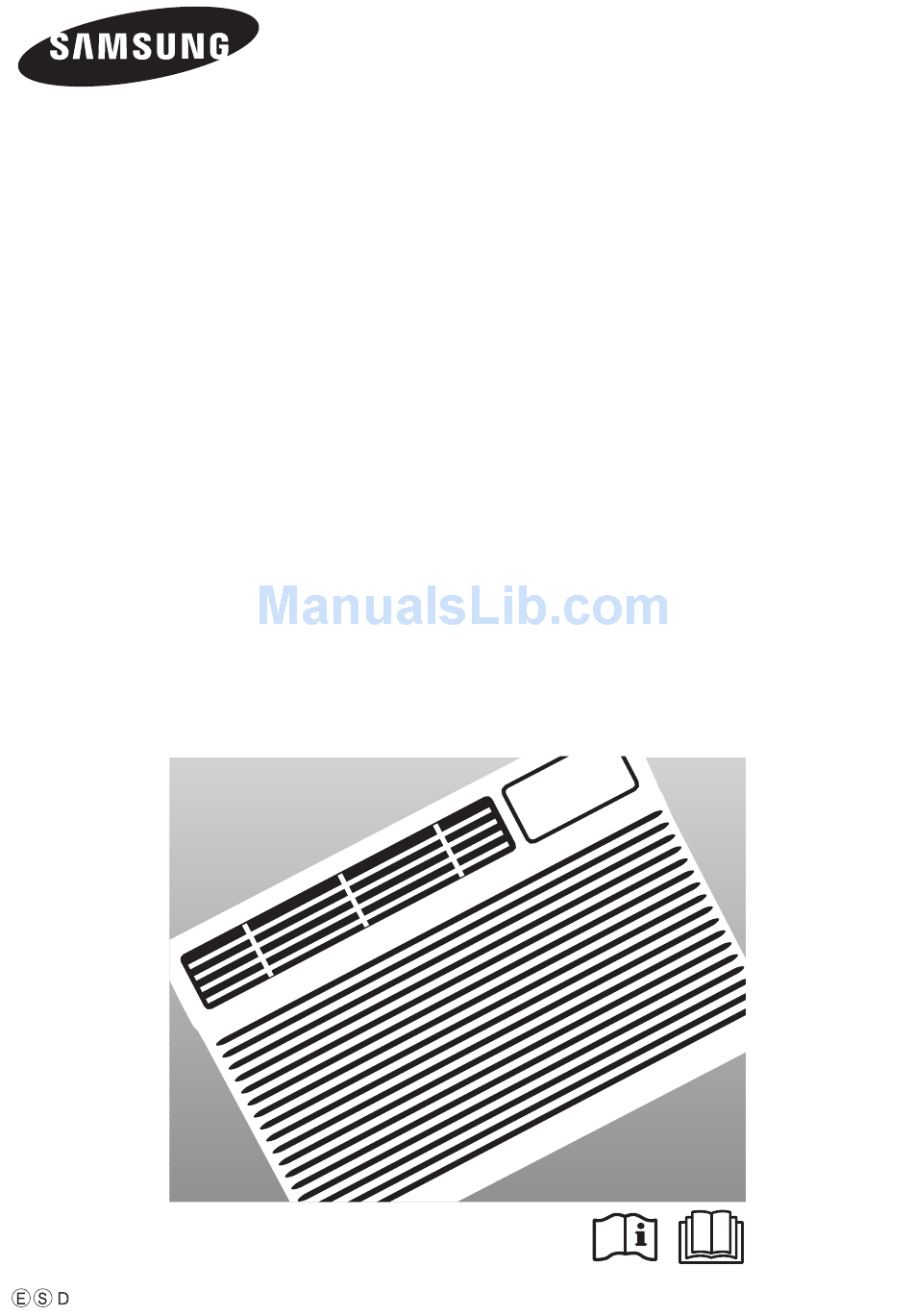

- Page 1 USER'S MANUAL W08NH Series AW08NK Series Window-type Room Air Conditioner (Cooling) B98-26970A(7)
-
Page 3: Table Of Contents
Contents REPARING ONDITIONER Safety Precautions ..................Description of Each Component ..............Remote Control - Buttons ................Getting Started ....................Inserting the Remote Control Batteries ............PERATING ONDITIONER Cooling Your Room ..................Airing Your Room ................... Removing Excess Humidity ................10 Adjusting the Air Flow Direction Horizontally .......... -
Page 4: Description Of Each Component
Air outlet Air inlet(Inside) Air inlet (Outside) Air filter (Inside) Temperature/Timer settings Mode selection button (Cool,Dry,Fan) Energy Saver button Temperature adjustment buttons Good Sleep setting button On/Off button Timer setting button Fan speed adjustment button Remote control sensor... -
Page 5: Remote Control - Buttons
Remote Control - Buttons Timer setting button Temperature adjustment Selecting Good Sleep button button Operating mode Fan speed adjustment selection button button Energy Saver button On/Off button... -
Page 7: Inserting The Remote Control Batteries
Inserting the Remote Control Batteries You must insert or replace the remote control batteries when : You purchase the air conditioner The remote control does not work correctly Use two AAA, LR03 1.5V batteries. Do not use old batteries or different kinds of batteries together. Batteries may be completely discharged after 12 months, even if they have not been used. -
Page 8: Operating Your Air Conditioner Cooling Your Room
You must select the Cool mode if you wish to lower the temperature in your room. You can also set the Fan speed. Remote Control Control Panel It will begin to cool after three minutes is displayed. 18 C 30 C higher than the selected temperature, the air conditioner starts cooling... -
Page 9: Airing Your Room
Airing Your Room If you want to provide air circulation without cooling, you can use the Fan mode. If you wish to evacuate stale air outside, push the ventilation lever on the front of the unit to the right and the open position ( Result: The air inside the room circulates and stale air is evacuated outside. -
Page 10: Removing Excess Humidity
Removing Excess Humidity If the atmosphere in your room is very humid or damp, you can remove excess humidity without lowering the room temperature too much. Remote Control Control Panel If necessary, press the (On/Off) button. Result: The air conditioner starts up in the Cool mode. The unit beeps. -
Page 11: Adjusting The Air Flow Direction Horizontally
Adjusting the Air Flow Direction Horizontally Depending on the position of the unit in your room, you can adjust the orientation of the inner air flow blades on the unit. Adjust the inner air flow blades to the desired position by sliding them side to side. The outer air flow blades can be adjusted to control the vertical air flow direction. -
Page 14: Cooling Your Room
Selecting Good Sleep Mode The Good Sleep mode can be used when you are cooling your room to switch the air conditioner off automatically after 8 hours. The Good Sleep function can be set whether the air conditioner is switched on or off,and this function can be selected for any mode. If Good Sleep is selected after switching on the unit ,the air conditioner will run in Cool mode.During this period, the temperature displayed is one you set for the Cool mode. -
Page 15: Selecting Energy Saving Mode
Selecting Energy Saving Mode If you wish to save energy when using your air conditioner, select the energy saving mode. Remote Control Control Panel To select the energy saving mode, press the button on the remote E.Saver control or button on the unit one or more times until the Energy E.Saver Saver indicator lights up. -
Page 16: Recommendations For Use Temperature And Humidity Ranges
21 C 32 C 21 C 43 C... -
Page 18: Solving Common Problems
Technical Specifications Design and specifications are to change without notica Voltage & Power Operating Capacity Model Frequecy Consumption Current AW08NHAA 115V~, 60Hz 8000 BTU/h 820W 7.4A 7 . 4A AW08NHAB 115V~, 60Hz 8000 BTU/h 820W AW08NKAF 115V~, 60Hz 8000 BTU/h 760W 6.7A... - Page 19 Installation Before installation, be sure to check the installation area or the air conditioner, and drain hose. Checkpoints prior to installation 1 Check the cabinet and front grille of the unit for any harmful defects such as scratches. 2 Be sure to check the power supply. - Refer to the specifications on the label attached to the unit.
- Page 20 Installation(Continued) Installation of the Drain Tube Fix the drain tube as shown in the figure. Rear Rubber cap Gasket Drain Tube Screws(2EA)
- Page 21 Memo DB98-20383A.indd 2006-10-26 19:05:07...
- Page 22 C.P 11570 AV. Presidente Masaryk No. 111, Int. 701 Col. Chapultepec Morales, Delegacion Miguel Hidalgo Mexico D.F 01-800-SAMSUNG(726-7864) www.samsung.com/mx IMPORTADO POR SAMSUNG ELECTRONICS MÉ’XICO S.A. DE C.V. AV. PRESIDENTE MASARIK No. 111 INT. 701 COL. CHAPULTEPEC MORALES, DELEGACION MIGUEL HIDALGO C.P. 11570, MEXICO, D.F. TEL: 5747-51-00, RFC: SEM950215S98 EXPORTADO POR SAMSUNG ELECTRONICS CO., LTD.
