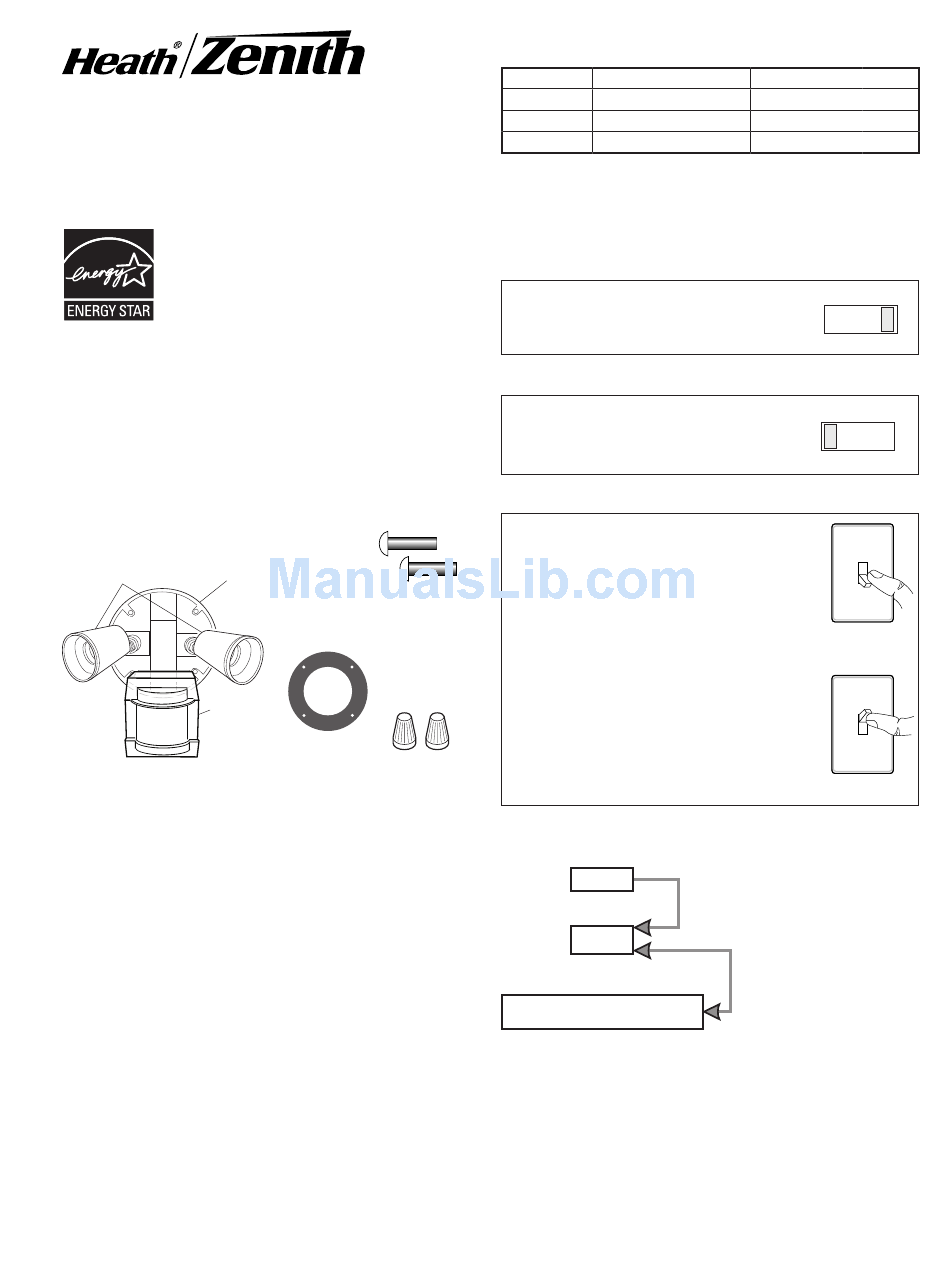

Heath Zenith BL-2400 Manual

Motion Sensor Light
Control
As an ENERGY STAR
has determined that this product meets the EN-
ERGY STAR
This product is ENERGY STAR
when used with 120 Watt bulbs.
Model BL-2400
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Photocell keeps the lighting off during daylight hours.
This package includes:
Lamp Holders
Cover
Plate
Sensor
Light Control
Requirements
• The light control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with a junction box
marked for use in wet locations.
• The backplate has knockouts so the sensor can be
mounted on most junction boxes.
• In some applications a universal adaptor plate may
be needed. Adaptors are available at home centers
and electrical supply stores.
© 2007 HeathCo LLC
Partner, Heath /Zenith
® ®
® guidelines for energy efficiency.
® compliant
4 Mounting
Screws (2 sizes)
Gasket
2 Wire
Connectors
OPERATION
Mode: On-Time
Test 5 Seconds
Auto
10 Min
Manual
Until Dawn*
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
the circuitry to calibrate.
Put the ON-TIME switch on the bottom
of the sensor in the TEST position.
Put the ON-TIME switch in the 10
minute position.
MANUAL MODE
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the ON-
TIME switch in the 10 position.
Mode Switching Summary
TEST
AUTO
MANUAL MODE
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the cali-
bration time the control will be in the AUTO mode.
Works: Day Night
x
/ minutes for
1
2
TEST
ON-TIME
10
AUTO
ON-TIME
10
TEST
1 Second OFF
then...
... back on.
Move ON-TIME Switch to
10 minutes
Flip light switch off
for one second then
back on*
598-1322-01
x
x
x
TEST
