User Manual
EDT EURODIMA GMBH
Diamond Technologies
Lagerstrasse 6
A-5071 Wals bei Salzburg
Tel.: +43 (0) 662 / 42 42 48
Fax: +43 (0) 662 / 42 42 48-20
e-Mail:
office@eurodima.com
www.eurodima.com
hurricane SB120
Betriebsstätte Deutschland
Oberheinrieter Straße 30 - 32
D-74199 Unterheinriet
Tel.: +49 (0)
7130 / 40095 0
Fax: +49 (0)
7130 / 40095 20
e-Mail:
office@eurodima.com
www.eurodima.com
Advertisement
Table of Contents
Related Manuals for EDT Eurodima Braxx hurricane SB120
Summary of Contents for EDT Eurodima Braxx hurricane SB120
-

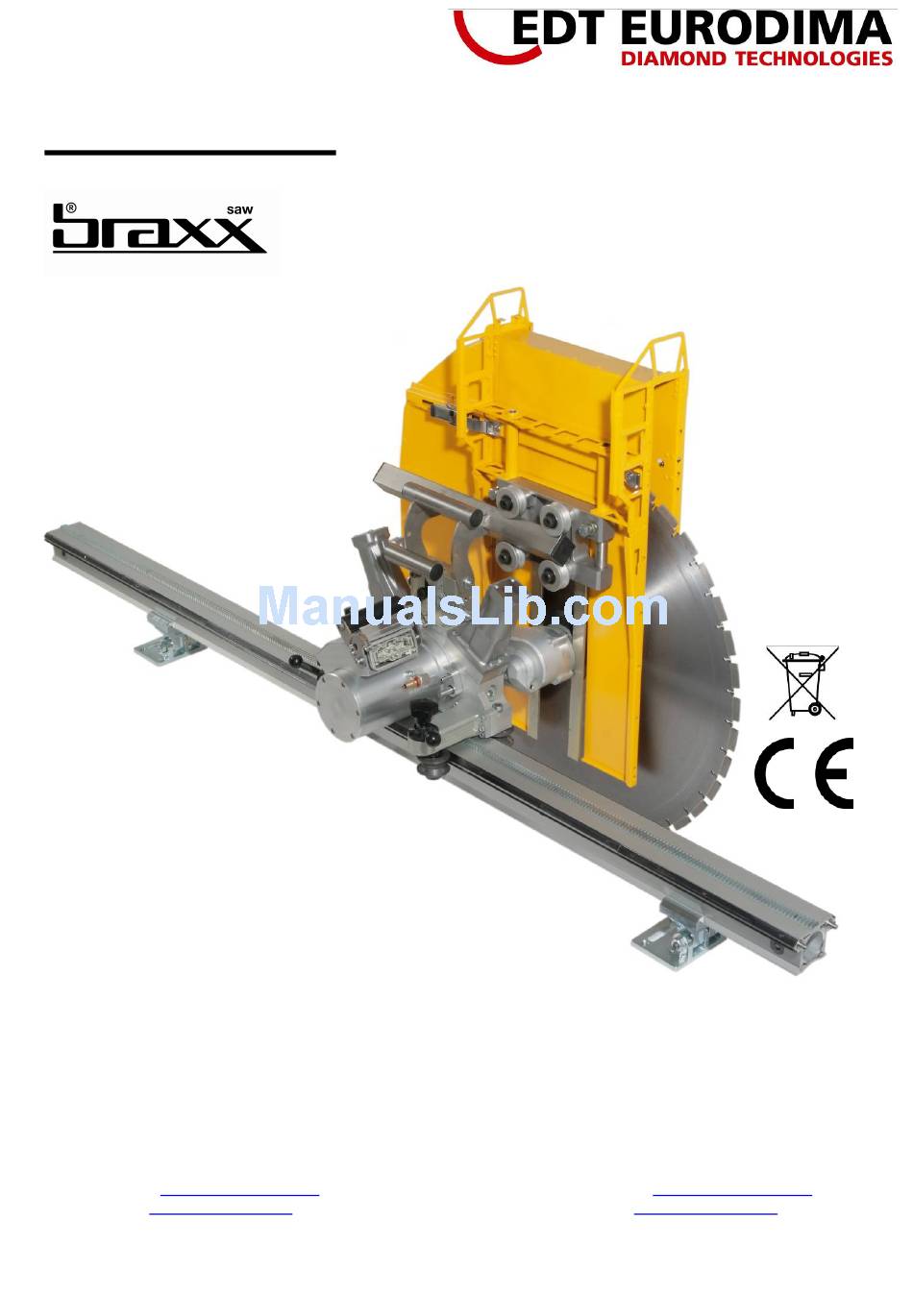

Page 1: User Manual
User Manual hurricane SB120 EDT EURODIMA GMBH Diamond Technologies Betriebsstätte Deutschland Lagerstrasse 6 Oberheinrieter Straße 30 - 32 A-5071 Wals bei Salzburg D-74199 Unterheinriet Tel.: +43 (0) 662 / 42 42 48 Tel.: +49 (0) 7130 / 40095 0 Fax: +43 (0) 662 / 42 42 48-20... -
Page 2: Table Of Contents
hurricane SB120 ABLE OF ONTENTS Preface..........................3 EU Declaration of Compliance ..................4 Intended Use ........................5 General notes........................5 Function ..........................5 Scope of Application......................5 Safety..........................6 General Safety Precautions ....................6 Securing the Building Site....................6 Prohibited Uses ......................... 6 Hazards ..........................7 Protective Clothing ...................... -
Page 3: Preface
We recommend training by qualified employees of EDT EURODIMA GMBH or by one of our authorized dealers. All persons employed in the operation, maintenance and/or repair of this machine must read and understand these instructions completely. -
Page 4: Eu Declaration Of Compliance
SB120 2 EU D ECLARATION OF OMPLIANCE Manufacturer: EDT EURODIMA GMBH Lagerstrasse 6 A-5071 Wals bei Salzburg Description: Electric wall saw 12 kW Type: hurricane SB120 We herewith confirm that the design and construction of the aforementioned machine complies with the... -
Page 5: Intended Use
The eurodima machines may not be used in conjunction with other brands of machines unless recommended or a pproved by EDT EURODIMA GMBH. Non-observance will void the warranty and any product liability. Any other use of the machine is deemed to be improper use! The manufacturer assumes no liability for any resulting damage. -
Page 6: Safety
hurricane SB120 AFETY Warning Check the compatibility of the voltage and the frequency with the data on the rating plate prior to use. Repairs must be carried out only by qualified personnel. The following must be observed: ambient and operating conditions contained in the catalogue, the user manual, the rating plate and other product information the applicable accident prevention regulations proper use of tools... -
Page 7: Hazards
hurricane SB120 5.4 Hazards Noise Dust Never stand in the travel direction of the saw blade. 5.5 Protective Clothing Wear protective Wear work Use ear Wear safety Wear a safety Wear a dust Use safety clothing gloves protectors shoes helmet mask glasses Wear suitable protective clothing. -
Page 8: Storage And Transport
hurricane SB120 The owner must ensure that only authorized personnel work on the machine. The owner is liable towards third persons within the work area. 5.9 Storage and Transport The storage area must be dry, clean and frost-free. During transport the machine must be secured against sliding and tipping. -
Page 9: Cooling Water
hurricane SB120 7.3 Cooling water The cooling water supply must be provided and the water hoses assembled prior to start-up. Minimum water pressure: 2 bar Maximum water pressure: 5.5 bar Cooling water throughput: 4 – 9.5 l/min Use only clean tap water in order to prevent damage to the wall saw. The cooling water of the drive motor emerges via the blade flange cooling the saw blade and binding the cutting dust. -
Page 10: Wall Saw Construction
hurricane SB120 7.6 Wall saw construction The wall saw system comprises the following components: main saw head with integrated advance and swivel motor. drive motor with safety coupling. blade cover with stirrup guide rail with fastening brackets and rail stops. BC120 control unit electric cable package water hose package for cooling the drive motor and the saw blade... -
Page 11: Mounting The Rails
hurricane SB120 7.7 Mounting the rails Each guide rail must be securely fastened to the floor by means of at least two fastening brackets. The metal anchors must sit firmly. The anchors must be flush with the surface of the concrete. Always blow out the dust after drilling the holes for the anchors. - Page 12 hurricane SB120 Clamp screw for fixing rails Hexagon nut for turning Fixation Screw for twist screw prevention Clamp screw for slant setting (stair cuts) Setting screw for aligning the bracket Screw function bracket Fastening bracket, set slant Guide rail stop (screw M12x80) The following rail lengths are available: EU norm 0,64 m...
-
Page 13: Guide Rail Extension
hurricane SB120 7.8 Guide rail extension Longer cuts are made with interlocked guide rails. The rails are mounted on the brackets and fixed loosely. The draw tube is put into the rail end and interlocked with the eccentric bolt. The second rail is put on and pulled by the second eccentric bolt until the racks of the two rails are in dead stop position. -
Page 14: Assembly / Changing The Saw Blade
hurricane SB120 7.10 Assembly / changing the saw blade 7.10.1 Recommendations for saw blade use Abrasive Reinforced Reinforced Reinforced materials, e.g. concrete with soft concrete with hard concrete with sand-lime brick, aggregates aggregates soft aggregates masonry WS 15C5 Υ Υ WS 20C5 Υ... -
Page 15: Saw Blades - Check For Damages
SB120 7.10.3 Flush cutting (see also Fehler! Verweisquelle konnte nicht gefunden werden.) Use only original EDT EURODIMA diamond tools. The diamond saw blade must be firmly tightened using 6 flat head bolts, tightening torque ca. 7 Nm. Flat head Allen bolt M8x12 – A2-70 – DIN 7991 (Nirosta 1,4301), 6 pcs. - Page 16 hurricane SB120 Put guiding tubes at the blade guard into the stirrup underpinning and secure with the two bolts. The stirrup underpinning is put into the dove tail of the main saw head and tightened with the two nuts. Put guide rails into the slot at the swivel head and put on the retainer.
-
Page 17: Electric Connection
Bent or broken connection pins must be immediately replaced with new ones. Electric repairs may only be carried out by EDT EURODIMA GMBH or its authorized dealers. 2010... -
Page 18: Electric Remote Control
hurricane SB120 7.14 Electric remote control Installation and handling are described in the user manual for the BC120. remote control with emergency stop 4-way gear lever Motor On-Off 3x LED control green-yellow-red Potentiometer eye to hook in for abdominal or shoulder belt remote control with abdominal belt remote control on abdominal belt BC120 completely connected... -
Page 19: Safety Checks, Operating And Sawing
Read and observe the user manual and the safety precautions prior to operation. Nonobservance of the instructions may result in the uncontrolled start-up of the machine or damage to the machine. EDT EURODIMA GMBH is not liable for damage caused in this way. -
Page 20: Saw Blade Speeds
hurricane SB120 8.4 Saw blade speeds Potentiometer Saw blade Saw blade Saw blade Ø settings segment width segment width [mm/inch] [mm] [inch] 700 / 28 4,7 / 4,4 0.18 / 0.17 800 / 32 4,4 / 4,1 0.17/0.16 1000 / 40 0.16 The optimum cutting speed (circumferential speed) of the saw blades depends on various factors such as: the quality of the concrete, the aggregates and the proportion of reinforcing steel. -
Page 21: Ending The Cutting Process
hurricane SB120 8.5.3 Flush cutting When flush cutting, move across the entire length without the blade turning; the saw blade must always be able to be freely moved by hand. If the saw blade rubs at one spot, the guide rail must be moved, otherwise the saw blade will be damaged. -
Page 22: Service And Maintenance
SB120 ERVICE AND AINTENANCE We recommend an annual inspection of the wall saw by EDT EURODIMA or an authorized dealer. 9.1 Safety Checks The electrical and mechanical safety of the wall saw and its accessories must be inspected at the intervals set out in and according to the national regulations. -
Page 23: Trouble Shooting
The warranty includes the repair or replacement of defective parts free of charge. Parts subject to normal wear are excluded from this warranty. EDT EURODIMA is not liable for direct, indirect or consequential damage from defects, loss or expenses in connection with or resulting from the unsuitability of the device for a specific purpose.
