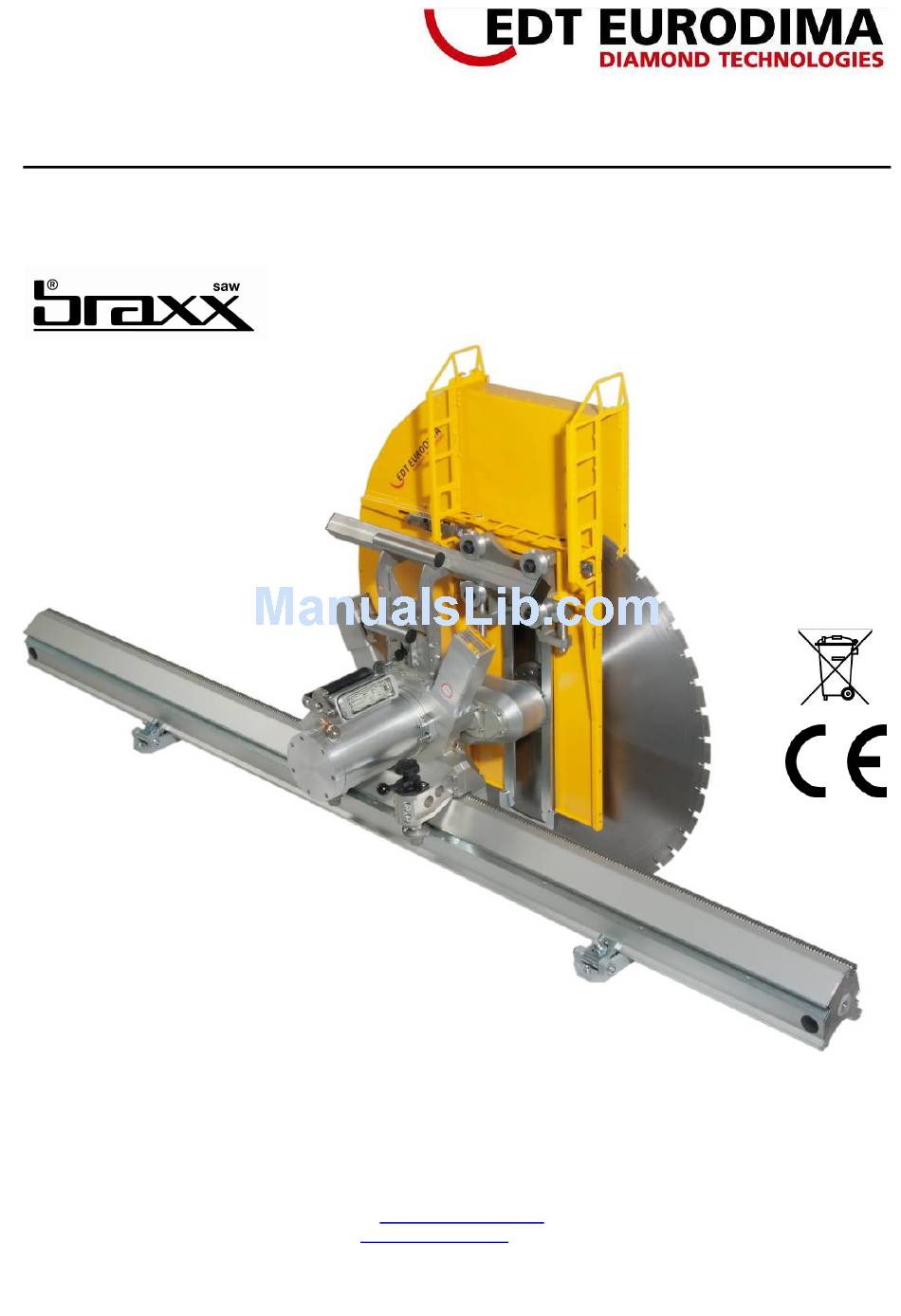

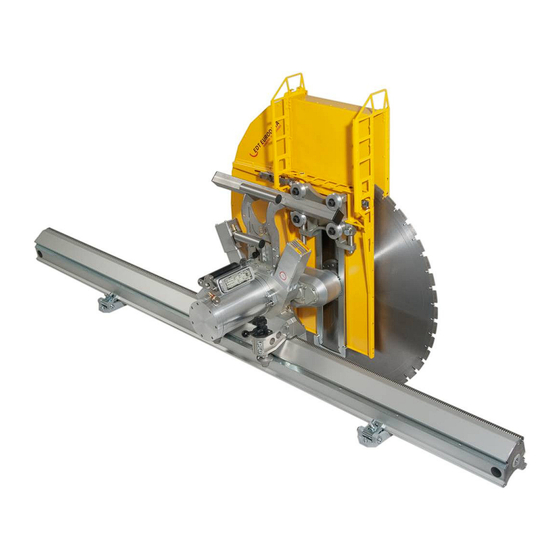

Page 1: User Manual
User Manual typhoon SB201 EDT EURODIMA GMBH Diamond Technologies Lagerstrasse 6 A-5071 Wals bei Salzburg Tel.: +43 (0) 662 / 42 42 48 Fax: +43 (0) 662 / 42 42 48-20 e-Mail: office@eurodima.com www.eurodima.com... -
Page 2: Table Of Contents
typhoon SB201 ONTENTS ..........................3 NTRODUCTION EU D ....................4 ECLARATION OF OMPLIANCE ..........................5 NTENDED ..........................5 ENERAL NOTES Function ............................5 Scope of application ........................5 ............................5 AFETY General safety precautions......................6 Securing the building site.......................6 Prohibited uses..........................6 Hazards ............................6 Protective Clothing ........................6 Safety equipment...........................7 Emergency measures........................7 Approved operators ........................7 Storage and Transport........................7... -
Page 3: Ntroduction
This user manual is intended for the operators and maintenance personnel of this machine. The manual is not intended to replace correct training in operating the machine. We recommend training by qualified employees of EDT EURODIMA GMBH or by one of our authorized dealers. All persons employed in the operation, maintenance and/or repair of this machine must read and understand these instructions completely. -
Page 4: Eu Declaration Of Compliance
SB201 2 EU D ECLARATION OF OMPLIANCE EDT EURODIMA GMBH Manufacturer: Lagerstrasse 6 A-5071 Wals bei Salzburg Description: electric wall saw 20 kW Type: SB201 typhoon We herewith confirm that the design and construction of the aforementioned machine complies with the... -
Page 5: Intended Use
SB201 NTENDED The EDT EURODIMA wall saw, braxx SB201 typhoon series, must only be used in conjunction with the braxx control BC201 control unit with remote control, and the necessary cables and water hoses. Important safety note The eurodima machines may not be used in conjunction with other brands of machines unless recommended or approved by EDT EURODIMA GMBH. -
Page 6: General Safety Precautions
typhoon SB201 5.1 General safety precautions Keep your work area tidy, e.g. completely extend cables and hoses. An untidy workplace can cause accidents. Ensure good lighting. Use the wall saw only for the purposes and work it was designed for. Observe the maintenance regulations. -
Page 7: Safety Equipment
typhoon SB201 5.6 Safety equipment Operation without safety equipment is prohibited! Do not undertake any modifications to the machine that impair the safety equipment. Do not remove or modify any safety equipment. Check the safety equipment prior to cutting. 5.7 Emergency measures In case of an emergency, switch off the machine with the emergency stop button on the remote control. -
Page 8: Specifications
typhoon SB201 PECIFICATIONS SI -Standards USA / CDN Rated voltage 400 V 460 V Current consumption 16 - 32 A 14 - 55 A Power 20 KW 27 hp Frequency 1000 Hz Revolution speed 0 – 1140 U/min 0 – 1140 rpm Protection class IP 56 Cutting speed... -
Page 9: Wall Saw Setup
typhoon SB201 7.5 Wall saw setup The wall saw system comprises the following components: main saw head with integrated advance and swivel motor. drive motor with safety coupling. blade cover with stirrup guide rail with fastening brackets and limit stop. BC201 or BC321 control unit electric cable package water hose package for cooling the drive motor and the saw blade... -
Page 10: Mounting The Rails
typhoon SB201 7.6 Mounting the rails Each guide rail must be securely fastened to the floor by means of at least two fastening brackets. The metal anchors must sit firmly. The anchors must be flush with the surface of the concrete. Always blow out the dust after drilling the holes for the anchors. -
Page 11: Guide Rail Extension
typhoon SB201 7.7 Guide rail extension Longer cuts are made with interlocked guide rails. The rails are centered using a centering pin and centering bushing. The guide rail join must be in the middle of the support bracket. Set up the rails only by hand or with a soft- faced hammer! Never let the saw touch the limit stops –... -
Page 12: Assembly / Changing The Saw Blade
Flush cutting Use only original EDT EURODIMA diamond tools. The diamond saw blade must be firmly tightened using 6 flat head bolts, tightening torque ca. 7 Nm. Flat head Allen bolt M8x16 – A2-70 – DIN 7991 (Nirosta 1,4301). -
Page 13: Mounting The Blade Guard
typhoon SB201 Saw blade check for damages Check saw blades for visible damage, e.g.: blue color, friction points, marks, deformation and cracks 7.11 Mounting the blade guard Only operate the wall saw with the blade cover attached. The size of the blade cover must match the diameter of the saw blade. protective cap on saw’s side mount protective cap mount protective cap... -
Page 14: Mounting The Motor
typhoon SB201 7.12 Mounting the motor The motor is mounted according to the following scheme: Saw body and motor with put-on coupling Mounting the motor – mind the plug Fixing the motor with the lever Fixing lever and six-pole plug The motor number is engraved on the reverse side of the motor. -
Page 15: Cooling Water
The plug connections of the motor have protection caps. Bent or broken connection pins must be immediately replaced with new ones. Electric repairs may only be carried out by EDT EURODIMA GMBH or its authorized dealers. 7.14 Cooling water The cooling water supply must be provided and the water hoses assembled prior to start-up. - Page 16 typhoon SB201 The cooling water of the drive motor emerges via the blade flange or the green hose, cooling the saw blade or the wire, and binding the cutting dust. The motor and gear temperature vary according to the temperature of the cooling water and the water pressure. Ambient temperature: max.
-
Page 17: Electric Remote Control
typhoon SB201 7.15 Electric remote control Installation and handling are described in the user manual of the braxx control BC201 or BC321. remote control with emergency stop 4-way-gear lever motor on-off 3x LED control green-yellow-red potentiometer eye to hook in for abdominal belt remote control with abdominal belt remote control on abdominal belt 2010... -
Page 18: Safety Checks , Operating And Sawing
Read and observe the user manual and the safety precautions prior to operation. Non-observance of the instructions may result in the uncontrolled start-up of the machine or damage to the machine. EDT EURODIMA GMBH is not liable for damage caused in this way. -
Page 19: Saw Blade Speeds
typhoon SB201 8.4 Saw blade speeds Potentiometer- Saw blade segment Saw blade segment Saw blade Ø settings width width [mm/inch] [mm] [inch] 700 / 28 0.19 800 / 32 5,0 / 4,7 0.19 / 0.18 1000 / 40 4,7 / 4,4 0.18 / 0.17 1200 / 48 4,4 / 4,1... -
Page 20: Ending The Cutting Process
typhoon SB201 Flush cutting When flush cutting, move across the entire length without the blade turning; the saw blade must always be able to be freely moved by hand. If the saw blade rubs at one spot, the guide rail must be moved, otherwise the saw blade will be damaged. -
Page 21: Service And Maintenance
SB201 ERVICE AND MAINTENANCE We recommend an annual inspection of the wall saw by EDT EURODIMA or an authorized dealer. 9.1 Safety checks The electrical and mechanical safety of the wall saw and its accessories must be inspected at the intervals set out in and according to the national regulations. -
Page 22: Trouble Shooting
The warranty includes the repair or replacement of defective parts free of charge. Parts subject to normal wear are excluded from this warranty. EDT EURODIMA is not liable for direct, indirect or consequential damage from defects, loss or expenses in connection with or resulting from the unsuitability of the device for a specific purpose. Implied assurances of use or suitability for a specific purpose are expressly excluded.
