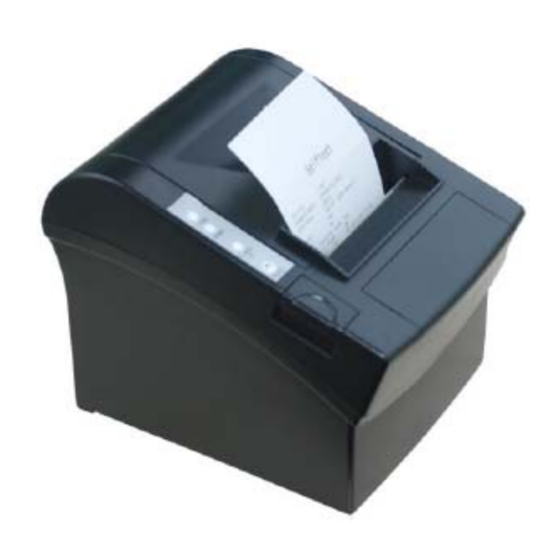

Sinocan P06-U/S/L User Manual

Thermal receipt printer p06-u/s/l
Hide thumbs
Table of Contents

Advertisement

Quick Links

Sinocan International Technologies Co., Ltd.
P06-U/S/L User's Manual
User's Manual
THERMAL RECEIPT PRINTER
Model: P06-U/S/L
V2.0 2010.05

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P06-U/S/L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sinocan P06-U/S/L

Summary of Contents for Sinocan P06-U/S/L

  • Page 1 Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual User’s Manual THERMAL RECEIPT PRINTER Model: P06-U/S/L V2.0 2010.05  ...

  • Page 2: Table Of Contents

    Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual Contents 1. General Information 1.1) Main Features ...............3 1.2) P06-U/S/L Series Function List ..........4 2. Quick Start 2.1) Unpacking & Parts Identification ..........5 2.2) Loading the Paper Roll ............6 3. Printer Interface and Connection 3.1) Connecting the Interface Cable..........8...

  • Page 3: General Information

    Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual 1. General Information 1.1) Main Features 1. High speed printing: 230mm/s maximum print speed. Low-noise thermal printing. High reliability due to a stable mechanism. 2.Application Software: Command protocol is based on ESC/POS standard.

  • Page 4: P06-U/S/L Series Function List

    Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual 1.2) Function List 1. Maximum printing speed 230mm/sec 2. Fully-compatible with EPSON ESC/POS command ( see command sets for programming reference) 3. Characters can be scaled up to 8 times larger than standard size(*) 4.

  • Page 5: Quick Start

    Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual 2. Quick Start 2.1) Unpacking & Parts Identification a. Unpacking: Power Adapter Power Cord Paper Roll Interface Cable b. Parts Identification:  ...

  • Page 6: Loading The Paper Roll

    Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual 2.2) Loading the Paper Roll a. Make sure that the paper roll matches the printer specification. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly.
  • Page 7 Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual d. Close the cover. When closing the cover, press the center of the printer cover firmly to prevent paper miss-loading e. Tear off the paper outside the cover as shown  ...

  • Page 8: Printer Interface And Connection

    Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual 3. Printer Interface and Connection 3.1) Connecting the Interface Cable a. Before connecting/disconnecting the interface cable, make sure that power to the printer and all the devices connected to the printer is turned on b.

  • Page 9: Connecting The Ac Adapter

    Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual 3.3) Connecting the AC Adapter a. Connect the AC power cord to the inlet of AC adapter, and then connect the power cord plug to a suitable electrical outlet b. Connect the adapter cable to power connector of printer, make sure the printer power switch is OFF before making any connections c.

  • Page 10: Configuration

    Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual 4. Configuration Printer Control Panel & Status Indicator 4.1) Panel LED Indicators 1. Power ( POWER) LED: Green On: Power is stable Off: Power is not stable 2. Error( ERROR) LED: Red...

  • Page 11: Printer Self Test

    Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual SW-7 SW-8 Baudrate(bps) 38400 115200 9600 19200 Note: Before configure the DIP switch settings, please first turn the printer power off and remove the paper roll. (*) Baud Rate is only available for serial interface models.
  • Page 12 Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual Select ‘A accept the agreement’ then ‘Next’ to continue Select the installation destination location, then click ‘Next’ to continue  ...
  • Page 13 Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual Choose your computer’s OS  ...
  • Page 14 Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual Select the printer model ‘POS-80C series’ and printer port your connecting, if you use USB connection, please also select COM port, after you finished installation, please go to printer property to set the USB port.

  • Page 15: Safety And Maintenance

    Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual 5. Safety and Maintenance 5.1) Safety Information 1. Do not touch the HEAD of printer with anything. 2. Do not touch the cutter blade. 3. Only use the power supply that is come along with the printer.

  • Page 16: Fixing Paper Jam

    Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual The paper should not be touched during printing. Shift the paper during paper ejection may cause a feed failure or paper jam. 5.4) Fixing Paper Jam The Status LED(Red) on the printer control panel will flash with beeps if paper is jammed.

  • Page 17: Appendix

    Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual 6. Appendix 1. Product Specifications 1.1) Printing Specifications 1. Printing method: Thermal line printing 2. Dot density: 203 dpix203 dpi 3. Printing direction: Unidirectional with friction feed 4. Printing width: 72mm (2.83 ), 576 dot positions 5.
  • Page 18 Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual Outside: 18mm (.71 ) 1. Receive buffer useable 20K bytes. 2. User-defined buffer (both for user-defined characters and user-defined bit images): 12K bytes 1.6) Electrical Characteristics 1. Supply voltage: 24 VDC 8% (optional power supply) 2.

  • Page 19: Configuration

    Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual 1.8) Environmental Conditions 1. Temperature: Operating: 5 to 45C (41 to 113F) Storage: -10 to 50C (14 to 122F) (except paper) 2. Humidity: Operating: 10 to 90% RH Storage: 10 TO 90% RH (except for paper) Note: If the printer is not used for a long time with paper installed, some part of the printing may be light due to the deformation of the paper.
  • Page 20 Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual a.2) Serial interface connection example Printer Side DB-25 POS RS-232 Connection DB29 Note: Set the handshaking so that the transmit data can be received.Transmit data to the printer after turning on the power and initializing the printer.
  • Page 21 Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual DATA4 HOST DATA5 HOST DATA6 HOST DATA7 HOST Printer acknowledge signal which indicates that nAck Printer the printer has receiced previous data bit BUSY Printer Printer is busy and can not receice data...
  • Page 22 Sinocan International Technologies Co., Ltd. P06-U/S/L User’s Manual 3. Drawer kick-out drive signal Output signal: Output voltage: Approximately 24V Output current: 1A or less  ...

This manual is also suitable for:

P06-uP06-sP06-l
