Summary of Contents for Potterton Gold Combi HE A LPG

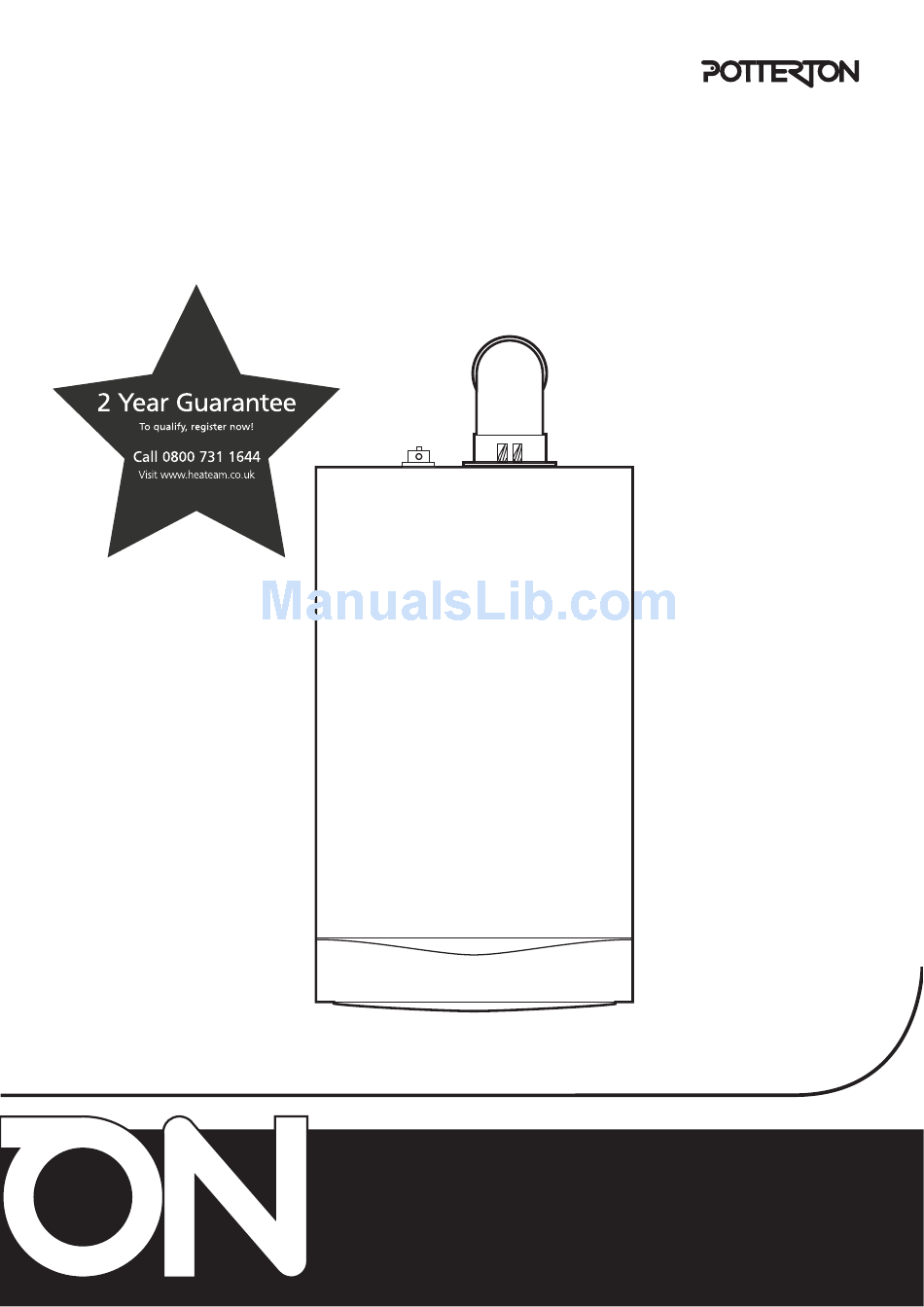

- Page 1 You can rely on User Guide and Gold Combi HE Important Warranty Information Condensing Combination Boiler Please keep these instructions in a safe place. If you move house, please hand them over to the next occupier. © Baxi Heating UK Ltd 2010...
-
Page 2: Table Of Contents
Propane Contents Potterton Gold Combi 28 HE G.C.N 49-393-30 Section Page Quick Reference Guide Troubleshooting Repressurising System Clearances Care of the Boiler Legislation Setting the Timer Emergency Warranty & Service The Benchmark Scheme Baxi Heating UK Ltd is a licensed member of the Benchmark Scheme which aims... -
Page 3: Quick Reference Guide
1.0 Quick Reference Guide Reset ON/OFF/Reset Display Central Heating Domestic Hot Water System Pressure Gauge Integral Timer Selector Switch Temperature Control Temperature Control Reset Reset Reset Reset OFF Position Central Heating & Hot Water Domestic Hot Water Reset The boiler will not operate. Both Heating &... -
Page 4: Troubleshooting
Boiler not working 2.0 Troubleshooting START Make sure the gas supply is Is the ( ) or ( ) light on Is the ON/OFF/Reset turned ON and check if other and the ( ) on ? Select Switch in the gas appliances are operating ) position and (e.g. - Page 5 2.0 Troubleshooting Is the Room Thermostat (if Is the Integral Timer ON and calling for heat ? fitted) set high enough ? Turn Room Thermostat to maximum setting (typical example shown). Ensure timer is set for Central Heating ON (see Section 7.0 of these instructions - ‘Setting the Timer’) CONTACT YOUR...
-
Page 6: Repressurising System
3.0 Repressurising the System Central Heating System Pressure 1. The water pressure in the central heating system is indicated by the pressure gauge. 2. With the system cold and the boiler not operating the pressure should be at least 0.5 bar. During operation the Fig. -
Page 7: Clearances
4.0 Clearances For your Safety 5mm Min 450mm 5mm Min 1. This appliance must have been installed in accordance with the manufacturer’s instructions and the regulations in force. 200mm Min (300mm Min if 2. Any modification that may interfere with the normal using 80/125mm flueing system) operation of the appliance without express written... -
Page 8: Care Of The Boiler
5.0 Care of the Boiler Cleaning the Outer case The painted panels should be wiped with a damp cloth and then dried completely. DO NOT USE ABRASIVE CLEANING AGENTS. Protection & Precaution 1. The boiler incorporates an integral frost protection feature that will operate in both modes. -
Page 9: Legislation
6.0 Legislation Installation, Commissioning, Service & Repair 1. This appliance must be install in accordance with the manufacturer’s instructions and the regulations in force. Read the instructions fully before installing or using the appliance. 2. In GB, this must be carried out by a competent person as stated in the Gas Safety (Installation &... -
Page 10: Setting The Timer
7.0 Setting the Timer Setting the Timer Time Pointer The Electro-Mechanical Timer allows the central heating system to be set every 15 minutes. Constant Using the three position switch the timer will allow either constant operation, timed operation or central heating off. Timed Move the switch button by sliding to the desired position. -
Page 11: Emergency
8.0 Emergency Warning ! If you smell gas Do not operate light switches Do not operate any electrical equipment Do not use a telephone in the hazardous area Extinguish any naked flame and do not smoke Open windows and doors in the hazardous area Turn off the gas supply at the meter Warn any other occupants and vacate the premises Telephone the your LPG supplier or the... -
Page 12: Warranty & Service
A D iv is i o n o f B ax i G rou p Brooks House, Coventry Road, Warwick. CV34 4LL After Sales Service 0844 871 1560 After Sales Service 0844 871 1560 Technical Enquiries 0844 871 1555 Website www.potterton.co.uk e&oe © Baxi Heating UK Ltd 2010 720522701 (8/10)
