DVR Door Entry System Combo
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVR Door Entry System Combo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intelligent Home DVR Door Entry System Combo

Summary of Contents for Intelligent Home DVR Door Entry System Combo

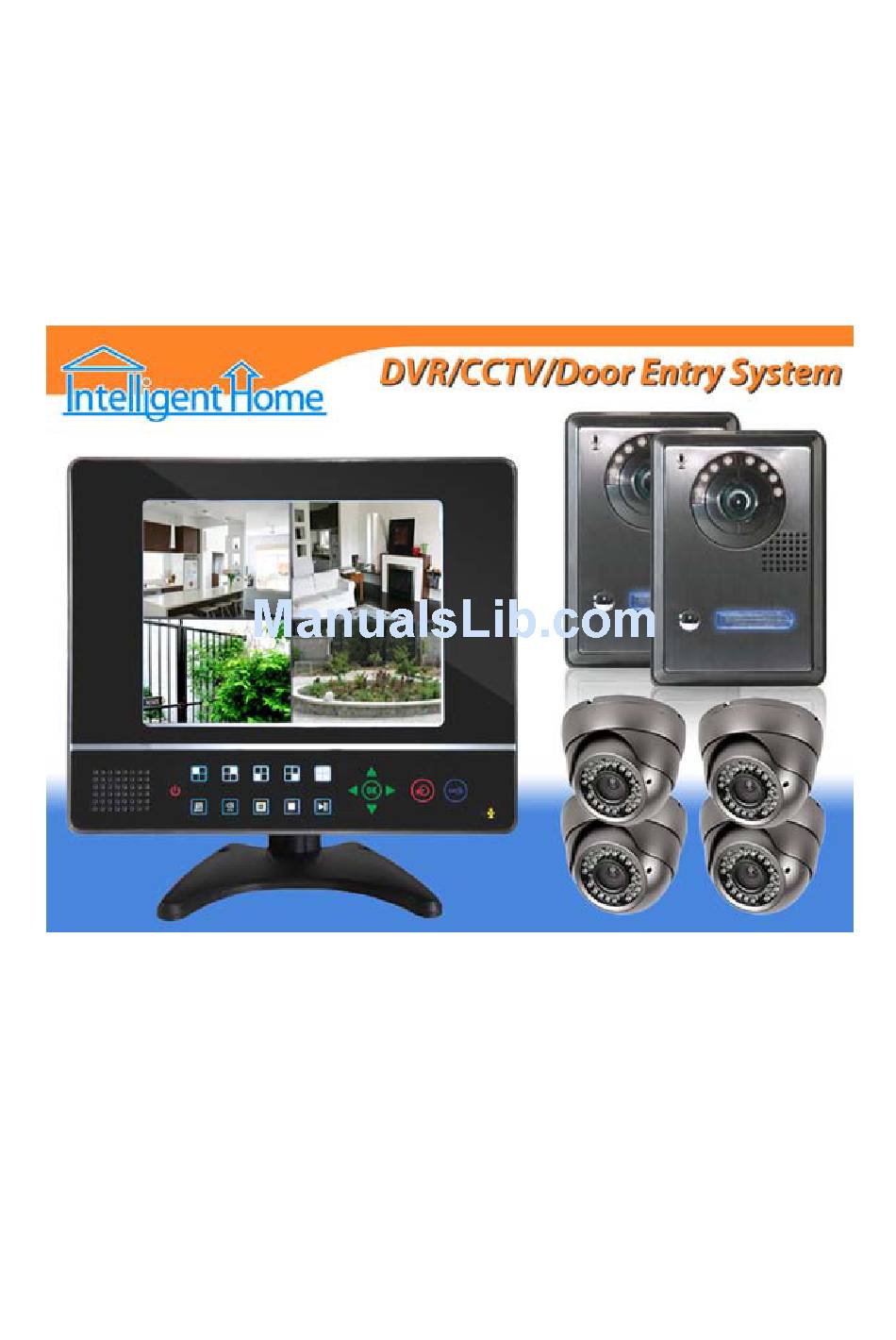

  • Page 1 DVR Door Entry System Combo USER MANUAL...
  • Page 2 INDEX Chapter 1: Installation Guide Chapter 2.1: Panel operation Chapter 2.2: Wiring Interface Chapter 2.3: Remote Controller Chapter 3: Basic Operation Chapter 4: Parameter Setting Chapter 4: Parameter Setting cont. - Video Management Part 1 Chapter 4: Parameter Setting cont. - Video Management Part 2 Chapter 4: Parameter Setting cont.
  • Page 3 DVR with video door phone -Chapter 1: Installation Guide Caution: Please make sure to disconnect the power supply before installation! 1.1 What is included? While opening the box, please check: Each component is intact without scratches and broken. All accessories listed bellow are included: •...
  • Page 4 2. How to install: Caution: The system will automatically format the hard disk before you start recording.

  • Page 5: Dvr With Video Door Phone -Chapter 2.1: Panel Operation

    DVR with video door phone -Chapter 2.1: Panel operation 2.1 Panel operation Chart 1: Front panel keys instruction Type Icon Details Indicator Power indicator, blue light when in working mode. light Channel 1/ Number key 1: full screen display real time monitor of channel 1.
  • Page 6 Record key.: press to start recording of preset camera(s) Stop key: stop recording/playback operation. Play: press to play record. Up key Down key Control Left/backward key: in playback mode, press to backward keys Right/forward key: in playback mode, press to forward Confirm key Monitor/talk Monitor outside or talk to visitors.

  • Page 7: Dvr With Video Door Phone -Chapter 2.2: Wiring Interface

    DVR with video door phone -Chapter 2.2: Wiring Interface Chart 2: Wiring interface instruction Power supply DC 12V/14V Outdoor station 2 interface Connect to outdoor station 2, 4 pin S-Terminal. Outdoor station 1 Connect to outdoor station 1, 4 pin S-Terminal. interface Network interface Connect to the internet.
  • Page 8 DVR with video door bell-Chapter 2.3: Remote Controller Chart 3: Remote controller function key instruction Name Icon Operation Menu key Enter/exit menu Down Direction/confirm keys Backward Forward Confirm Audio channel Switchover audio of a channel select key Channle 1/number key 1 Display keys Channel 2/number key 2 Channel 3/number key 3...
  • Page 9 Channel 4/number key 4 Quad monitor REC key Record Stop key Stop Monitor display Turn off monitor display off key Monitor/talk key Monitor / talk Unlock key Unlock Play key Play...

  • Page 10: Dvr With Video Intercom - Chapter 3: Basic Operation

    DVR with video intercom - Chapter 3: Basic Operation 3.1 How to switch on/off (1). Switch on Push the power switch on the left side of the indoor unit, the monitor will start. Note: The monitor shows quad monitoring at starup as default mode. If the time is within schedule recording time, the system will automatically start the schedule recording function, and then the system will continue to work properly.

  • Page 11: Dvr With Door Entry System - Chapter 4: Parameter Setting

    DVR with door entry system - Chapter 4: Parameter Setting 4.1 Main menu instruction Under the stop recording mode, push the button either on the monitor or the remote controller, then shows the following screen: The following is the introduction on sub-menu functions. 4.2 Video Management 4.2.1 CAMERA SET UP Each channel can be set separately on or off.
  • Page 12 、 、 Method: push the button , to put to the channel to be set, and then, push to set the channel "ON" or "OFF".

  • Page 13: Recording Setup

    DVR8 - Chapter 4: Parameter Setting cont. - Video Management Part 1 4.2.2 RECORDING SETUP Each channel can be set separately to record video or not, if it is set to "OFF", thescreen will continue to show channel pictures, but not for recording. 、...
  • Page 14 、 、 Method: push the button , to put to the channel to be set, and then, push to set the channel.

  • Page 15: Video Quality

    DVR8 - Chapter 4: Parameter Setting cont. - Video Management Part 2 4.2.4 VIDEO QUALITY The setting of video recording quality has 3 selections: "HIGH", "NORMAL" and "LOW".The higher grades, the better video recording quality, also with the bigger capacity of video file occuping the hard disk space.

  • Page 16: Recording Schedule

    、 、 Method: push the button , to put to the time period, and then, push to set the recording mode during this period. 、 、 Method: push the button , to put to the channel to be set, and then, push to set the required video quality.

  • Page 17: Dvr8 - Chapter 4: Parameter Setting Cont. - Alarm Setup

    DVR8 - Chapter 4: Parameter Setting cont. - ALARM SETUP 4.3 ALARM SETUP This setting is for the circumstances when system detects triggering events during operation, and the reactions to thiese events. RECORDING TIME ON ALARM: when a triggering event encountered, the system will automatically record the corresponding channel.

  • Page 19: Dvr8 - Chapter 4: Parameter Setting Cont. - Hard Drive Setup

    DVR8 - Chapter 4: Parameter Setting cont. - Hard drive setup 4.4 Hard drive setup This menu includes: overwriting, hard disk information and formatting settings. OVERWRITE ENABLED: When set to 【YES】, if disk storage is full, it will automatically overwriter. ST9408221AS: The current information of hard disk.

  • Page 21: Dvr8 - Chapter 4: Parameter Setting Cont. - Miscellaneous Setup

    DVR8 - Chapter 4: Parameter Setting cont. - Miscellaneous setup 4.5 Miscellaneous setup This will set system-related issues, including PASSWORD SETTING, SET TIME, HIDDEN CHANNEL, AUDIO PORT SETUP, MUSIC SELECT, LANGUAGE and USE PASSWORD LOGIN, etc. PASSWORD SETTING: system password can be set, stands for 1, stands for 2, stands...
  • Page 22 to the "PASSWORD SETTING" ，and then push Method:move to enter sub-menu. Input old password (default is 111111), and then input "NEW PASSWORD" and "CONFIRM NEW PASSWORD". If input error, press to delete. TIME: Set the system time. Methods: press to move to the digit you want to adjust, and then press change the numbers.
  • Page 23 For example: All the four cameras have audio input. Now need to set channel 1 and channel 3 to save the audio around. Methods:Move to "Audio Port 1", then press to select channel 1. Press to move down to next line Set "AUDIO RECORDING"...

  • Page 24: Network Setup

    DVR8 - Chapter 4: Parameter Setting cont. - Network setup 4.6 Network setup NETWORK SETUP 1) Press [menu] on the remote controller to enter into the main menu Use arrow keys (▲) and (▼) to select "NETWORK SETUP" menu, press [OK] to confirm, and enter into the "NETWORK SETUP"...
  • Page 25 Using the keys (▲) and (▼) to select the numbers, left and right keys to select the digit you need to set up, press [OK] button to confirm. Then press [Menu] to save and exit. SUBNET MASK: Set the subnet mask GATEWAY: Set the gateway DNS ADDRESS1: DNS address1 setting DNS ADDRESS2: DNS address2 setting...

  • Page 26: Dvr8 - Chapter 4: Parameter Setting Cont - Tft Setup

    DVR8 - Chapter 4: Parameter Setting cont – TFT Setup 4.7 TFT setup The three options: BRIGHTNESS SET UP, CONTRAST SET UP AND SATURATION SET UP can be adjusted, in which each of the adjustable range is from 0 to 30. 4.8 Reset menu Input DVR system password, to reset all settings to factory default except for the network setup and system password.
  • Page 27 Player software The format of saved files is .MCG and requires special software to play. Explore the CD attached with the product; open the software to play the saved files. How to operate?

  • Page 28: Dvr8 - Chapter 4: Parameter Setting Cont. - Web Access

    DVR8 - Chapter 4: Parameter Setting cont. - web access 1. Opening port This is to open web access port from the router. Opening port on different types of routers will be in different ways. For a specific router, please contact the vendor to get details. Here is an example to open ports on a TP-Link router: 3.
  • Page 29 After opening ActiveX controls, refresh IE browser and enter the access address in the Address bar: http://IP: [port] to visit SVR host, as shown bellow: Note: a. You can access directly via LAN address if in LAN. WAN IP is needed for WAN access. The port number can be omitted when using the default port 80, for example: http://192.168.18.101 b.

  • Page 30: Dvr With Video Door Entry - Chapter 5: Login Window

    DVR with video door entry - Chapter 5: Login window λ Connected: Display system connection status λ Capture tools: Control the image capture and recording functions. λ Remote DVR Control Panel : DVR Control Connected: Displays the current connection status and the data transfer rate. Capture tools: image capture and video stream capture through functions on the left, and then store on the...
  • Page 31 The left side's functions.

  • Page 32: Dvr With Video Door Entry - Chapter 5: Ie Configuration

    DVR with video door entry - Chapter 5: IE Configuration 5.1 Configure and install IE Note: you must configure IE security settings before remote viewing, detailed steps are as follows: Right click the "Internet explorer" icon on windows desktop, in pop-up menu; select "Properties" to enter the Internet Options window as shown below: 1) Click on the Custom Level button, entering the Security Settings window to download unsigned Active X controls...
  • Page 33 Click , then appears the user name input box as the left picture, enter the user name and password: user name and password are considered as ADMIN. Note: The user name and password are all capital letters. Click to enlarge 2 times for the preview screen.

  • Page 34: Warranty Card

    4. Attempting to force the device to perform functions for which it is not intended 5. Attaching the device to power supplies other than those recommended by the manufacturer Distributor for Warranty purposes: Intelligent Home Online Ltd 34a High Street Hornsey London N8 7NX +44 (0)20 83482040 www.intelligenthomeonline.com...
