QuickSpecs

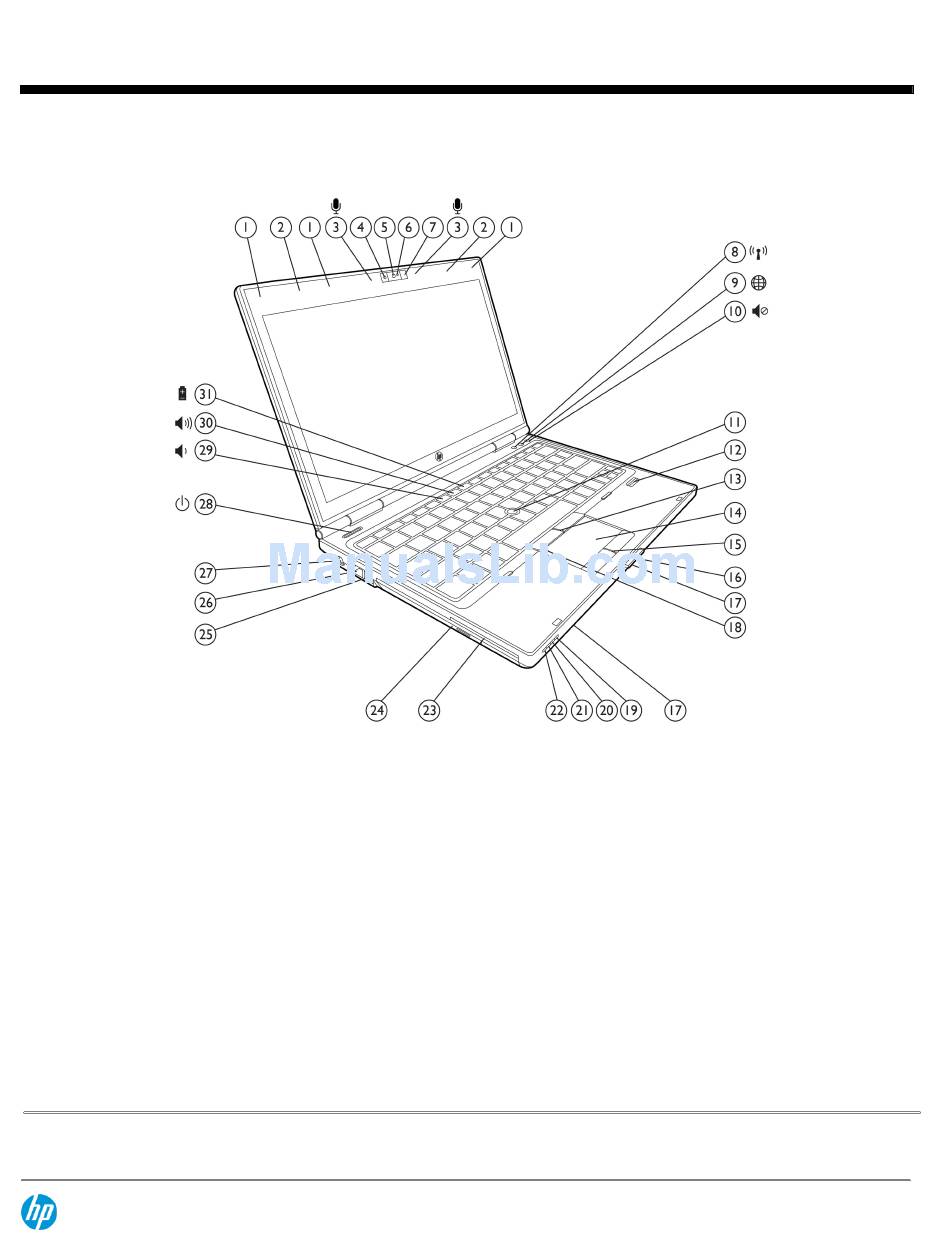

Overview
1.
WLAN antennas (3)
2.
WWAN antennas (2)
3.
Dual-microphone array
4.
Webcam LED indicator
5.
Optional 720p HD Webcam
6.
HP Night Light button and ambient light sensor
7.
HP Night Light
8.
Wireless on/off button with LED indicator
9.
HP QuickWeb button with LED indicator
10. Volume mute button with LED indicator
11. Pointstick
12. Optional HP Fingerprint Sensor
13. Pointstick buttons (2)
14. Touchpad with scroll zone
15. Touchpad buttons (2)
16. Display release button
DA - 14001 Worldwide — Version 10 — August 3, 2012
HP EliteBook 2560p Notebook PC
17. Stereo Speakers
18. Touchpad on/off button with LED indicator
19. Drive activity / HP 3D DriveGuard LED indicator
20. Battery charging LED indicator
21. Power/standby LED indicator
22. Wireless on/off LED indicator
23. Integrated Smart Card Reader
24. Optical drive or weight saver
25. Optional RJ-11/modem port
26. RJ-45/Ethernet port
27. Power connector
28. Power button with LED indicator
29. Volume down function key
30. Volume up function key
31. HP Power Assistant function key
Page 1

Advertisement

loading

Related Manuals for HP EliteBook 2560p

Summary of Contents for HP EliteBook 2560p

  • Page 1 17. Stereo Speakers WWAN antennas (2) 18. Touchpad on/off button with LED indicator Dual-microphone array 19. Drive activity / HP 3D DriveGuard LED indicator Webcam LED indicator 20. Battery charging LED indicator Optional 720p HD Webcam 21. Power/standby LED indicator HP Night Light button and ambient light sensor 22.
  • Page 2 QuickSpecs HP EliteBook 2560p Notebook PC Overview ExpressCard/34 slot Vent Secure Digital/MultiMediaCard slot Docking connector Combo headphone/microphone jack Kensington Lock slot DisplayPort VGA connector (external monitor/projector) eSATA/USB 2.0 combo port 10. (2) USB 2.0 ports Bottom cover release latch Stereo Speakers...
  • Page 3 Bluetooth® v2.1+EDR Choice of 9-cell, 6-cell, or 3-cell battery, including HP Long Life battery, to customize weight, run-time, and battery life to your needs HP Power Assistant to conserve power, increase battery run-time, monitor power needs, and report workforce power...

  • Page 4: Standard Features (Availability May Vary By Country)

    QuickSpecs HP EliteBook 2560p Notebook PC Standard Features (availability may vary by country) Processors Generation Intel Core i7 Processors Intel Core i7-2620M Processor (2.70 GHz, 4 MB L3 cache, 2 cores/4 threads, 35W)* Up to 3.40 GHz with Intel Turbo Boost Technology Generation Intel Core i5 Processors Intel Core i5-2540M Processor (2.60 GHz, 3 MB L3 cache, 2 cores/4 threads,...
  • Page 5 Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory channels. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 6 CDMA (EVDO) and UMTS (HSPA) Mobile Broadband Module networks. It also provides GPS functionality for various mapping applications (availability expected and security applications such as Computrace LoJack Pro Premium for HP May, 2011) ProtectTools. All 802.11 integrated...
  • Page 7 * In countries where 802.11n is not allowed, this capability is not enabled (802.11a/b/g only). Keyboard The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components underneath.
  • Page 8 QuickSpecs HP EliteBook 2560p Notebook PC Standard Features (availability may vary by country) Expansion card slots ExpressCard/34 slot Supports ExpressCard/34 Integrated Smart Card Compatible with ISO 7816 compliant Smart Cards PC/SC interface support Reader Secure Digital/ Supports SD (Secure Digital), MultiMediaCard...
  • Page 9 *** PDF Complete Special Edition 60 day trial; purchase license afterwards for full functionality. HP Recovery Manager Models shipped with Windows 7 or Windows Vista include HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted.
  • Page 10 *** Intel AT security requires a separately purchased Absolute Computrace service subscription and must be activated and configured. Check with Absolute for availability in your country. Intel and HP assume no liability for lost or stolen data and/or systems or any other damages resulting therefrom. See http://www.intel.com/technology/anti-theft/...
  • Page 11 Total length including external AC adapter is 12 feet (3.66 meter). HP Fast Charge* *HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. Fast Charge Technology does not apply to 9-cell primary batteries. Battery...
  • Page 12 HP Essential USB 2.0 Port Replicator HP LAN and USB Travel Hub NOTE: Some HP Docking stations may not support every feature of some HP Notebook models. Please refer to the individual docking station documentation for specific information about supported features.
  • Page 13 HP 4 GB (DDR3 1333 MHz) SODIMM AT913AA#xxx HP 8 GB (DDR3 1333 MHz) SODIMM QP013AA#xxx HP 2 GB PC3-12800 (DDR3 1600 MHz) SODIMM H2P63AA HP 4 GB PC3-12800 (DDR3 1600 MHz) SODIMM H2P64AA HP 8 GB PC3-12800 (DDR3 1600 MHz) SODIMM H2P65AA NOTE: Full availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux.
  • Page 14 QuickSpecs HP EliteBook 2560p Notebook PC Options (availability may vary by country) Input/Output Devices HP USB Optical Travel Mouse RH304AA HP USB/PS2 Optical 2-Button Scroll Mouse DC369A HP USB Keyboard & Mouse Bundle RC465AA#xxx DA - 14001 Worldwide — Version 10 — August 3, 2012...

  • Page 15: Technical Specifications

    QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications System Unit Dimensions (HxWxD) 1.08 in (at front) x 12.02 in x 8.23 in 27.4 mm (at front) x 305.2 mm x 209.0 mm 1.29 in (32.8 mm) height at rear Weight Starting at 3.68 lb (1.67 kg) with weight saver (no optical drive)
  • Page 16 SABS UKRSERTCOMPUTER * Configurations of the HP EliteBook 2560p that are ENERGY STAR qualified are identified as HP EliteBook 2560p ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT TBD Registered in U.S. EPEAT registration varies by country. See www.epeat.net...

  • Page 17: Warranty

    QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications HP 65W Smart AC Adapter Dimensions 4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm) Weight 0.62 lb (280 g) Input 100 to 240 VAC Input Efficiency 87% min at 115 VAC...
  • Page 18 QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications 6-cell 62 WHr Li-Ion Dimensions (H x W x L) 0.8 x 2.0 x 8.1 in (2 x 5 x 20.5 cm) Battery Weight (max) 0.71 lb (0.32 kg) Cells/Type Lithium-Ion SX06062...
  • Page 19 QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications 12.5-inch LED-backlit HD Active Area (W x H) 10.63 x 6.4 in (27.7 x 15.6 cm) anti-glare Diagonal Size 12.5 in (31.75 cm) Surface Treatment Anti-glare Contrast Ratio 400:1 (typical) Refresh Rate...
  • Page 20 QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications 500 GB 7200 rpm SATA Drive Weight 0.25 lbs (115g) Hard Drive Capacity 500 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 21 QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications 250 GB 7200 rpm SATA Drive Weight 0.25 lbs (115g) Hard Drive Capacity 250 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 22 QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications 128 GB 2.5-inch SATA Drive Weight 75 Grams Solid State Drive Capacity 128 GB Height 0.276 in (7 mm) Width 2.76 in (70 mm) Interface SATA Gen 2 Performance Maximum Sequential Read...
  • Page 23 QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications DVD+/-RW SuperMulti DL Access Times Random <140ms CD (typical) Drive < 160 ms DVD (typical) Max Data Transfer Rate 24X CD-ROM 8X DVD 24X CD-R 24X CD-RW 8X DVD+R 8X DVD+RW 8X DVD-R...
  • Page 24 QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications Communications Intel® 82579LM Gigabit Ethernet Features 10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14) 100 10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14) Network Connection 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30) 1000 Mbti/s operation (1000BASE-T;...
  • Page 25 QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications V.92 56K Data/Fax Modem Form Factor MDC 1.5 Daughtercard Power Management APM Revision 1.2, ACPI Support Approvals/ UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other...

  • Page 26: Configuration Utilities

    QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications HP un2430 Technology/Operating GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz (PCS) EV-DO/HSPA Mobile Bands UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz Broadband Module (UTRA FDD Band II), AWS (UTRA FDD Band IV), 900MHz(UTRA FDD Band VIII),...
  • Page 27 QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications HP hs2340 HSPA+ Mobile Technology/Operating GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz (PCS) Broadband Module Bands UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900Mhz (UTRA FDD Band II), 900Mhz(UTRA FDD Band VIII), 850 MHz (UTRA FDD Band V)
  • Page 28 QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications LED Activity LED Off - Radio Off; Solid LED On - Radio On Intel Centrino Advanced-N Wireless LAN Standards IEEE 802.11a IEEE 802.11b 6205 IEEE 802.11g IEEE 802.11n* * In countries where 802.11n is not allowed, this capability is not enabled.
  • Page 29 QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications Antenna Connections 2 U.FL type connectors, 50 ohm nominal impedance Form Factor PCI-Express Half-MiniCard Weight 0.0075 lb (3.4 g) Dimensions 0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm) Operating Voltage 3.3V +/- 9%...
  • Page 30 QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications Encryption: 64 and 128-bit WEP, AES-CCMP, CKIP, TKIP Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4) with Microsoft Windows Vista and XP only.
  • Page 31 QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications IEEE 802.11g WiFi Adapter IEEE 802.11n* Interoperability Wi-Fi certified (802.11abg only) Cisco Compatible Extensions Program compliant (802.11abg only) with Microsoft Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN) Frequency Band 2.4 GHz and 5 GHz Data Rates 802.11b: 1, 2, 5.5, 11 Mbps...
  • Page 32 QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications Temperature Operating 14° to 149° F (-10° to 65° C) Non-operating -40° to 176° F (-40° to 80° C) Humidity Operating 10% to 90% (non-condensing) Non-operating 5% to 95% (non-condensing) Altitude Operating...
  • Page 33 QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications Output Power (for OFDM; 15 dBm , nominal power varies by data rate) Power Consumption Idle associated: 250 mW avg (CLKREQ enabled) Idle unassociated: 425 mW avg Transmit/Receive 20 MHz channel: 5.5 W (max)
  • Page 34 QuickSpecs HP EliteBook 2560p Notebook PC Technical Specifications Power Consumption Peak (Tx) 264 mW Peak (Rx) 231 mW Sleep <1 mW Antenna Internally integrated within module Range Up 33 ft (10 m) Electrical Interface USB 2.0 compliant Microsoft Windows Plug and Play compliant...

  • Page 35: Additional Information

    This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2002/95/EC. information This HP product is designed to comply with the Waste Electrical and Electronic DA - 14001 Worldwide — Version 10 — August 3, 2012 Page 35...
  • Page 36 The Molded Pulp packaging material is made from 60% recycled content. HP follows these guidelines to decrease the environmental impact of product packaging: Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.
  • Page 37 This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. Hewlett-Packard...
  • Page 38 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
