Summary of Contents for Galaxy Audio Core12

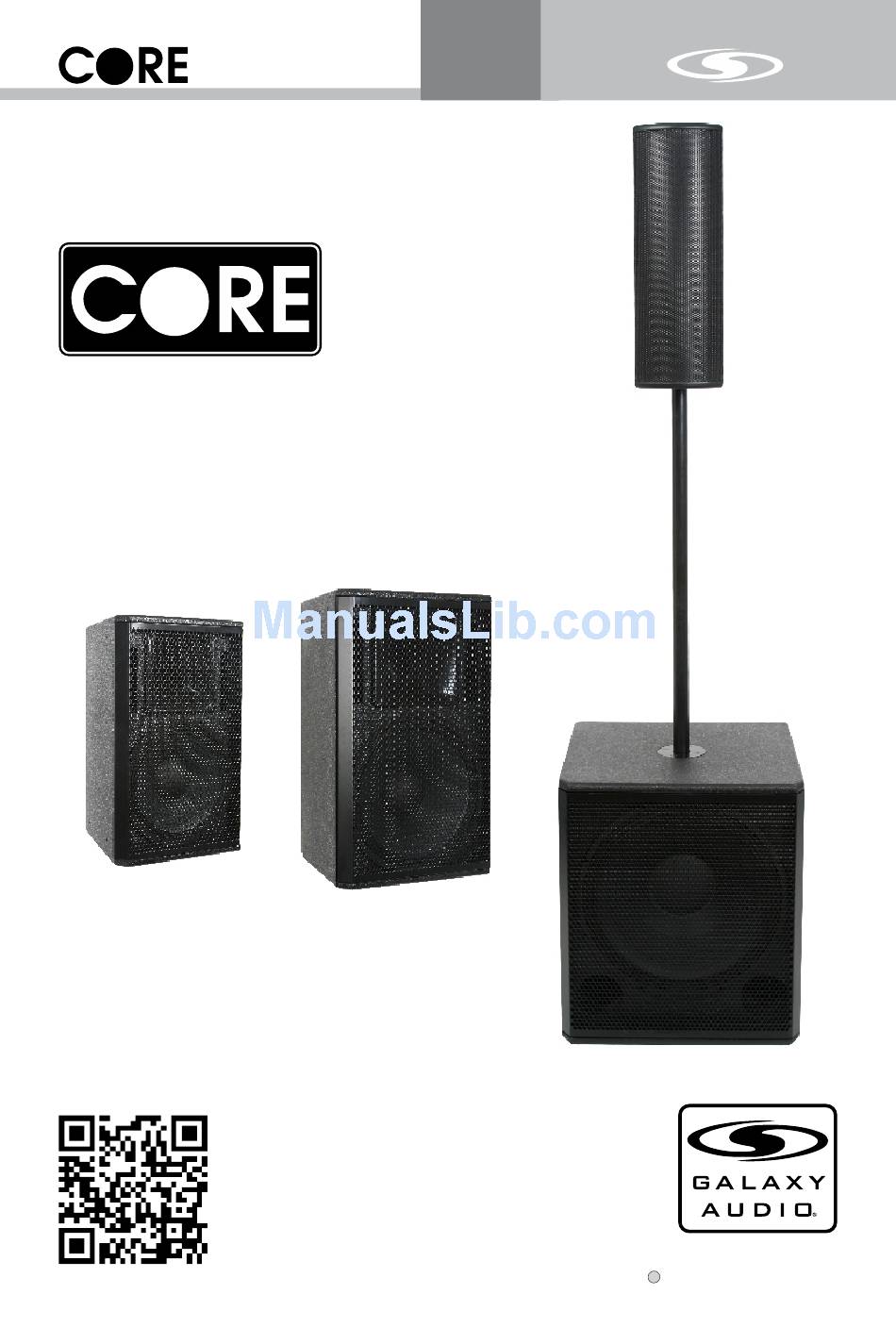

- Page 1 USER'S MANUAL 12, 15, 18 & LA4 MAKERS OF THE ORIGINAL HOT SPOT PERSONAL MONITOR http://www.galaxyaudio.com/CORE.php...
-
Page 2: Table Of Contents
Contents: Introduction.......................1 CORE 12" & 15"....................2-3 CORE 18"......................3 Core Input Plate....................4 LA4........................5 LA4PM......................6 Connection Set Up...................7 Specifications....................8-9... -
Page 3: Introduction
After years of design and research we are proud to introduce the Core Speaker Cabinets. Core Cabinets incorporate the same attention to sound, detail and quality that has made Galaxy Audio so popular among musicians, installation contractors and audio enthusiasts for over 35 years! Loudspeakers play an important role in sound distribution. -
Page 4: Core 12" & 15
CORE 12 & CORE 15 CORE 12 & CORE 15 The Core 12 and Core 15 are unpowered 8 ohm 2-way speakers available in white or black textured wood paintable cabinets with integral handle. The trapezoidal design and removable rubber feet allow the cabinets to be configured to lay on any side for optimal listening angle. -
Page 5: Core 18
CORE 15 & 18 CORE 15 & 18 CORE 15 Twist Lock ¼" 500 WATTS IMPEDANCE: 8 OHM SER. www.galaxyaudio.com SIDE BOTTOM FRONT BACK The Core 18 Subwoofer is an unpowered 8 ohm speaker cabinet with a 18" woofer capable of reproducing low frequencies down to 36 Hz! The pole mount socket on the top of the cabinet fits a standard 1-3/8"... -
Page 6: Core Input Plate
CORE INPUT PLATE CORE INPUT PLATE Twist Lock ¼" 600 WATTS IMPEDANCE: 8 OHM SER. www.galaxyaudio.com All Core Speaker Cabinets use a four-pole Twist-lock input jacks wired for 1+ to the Positive speaker lead and 1- to the Negative speaker lead. The 2 screw terminal barrier strip is wired for + to the Positive Speaker terminal and –... -
Page 7: La4
LINE ARRAY The LA4 is an unpowered 16 ohm Line Array speaker. The back panel features two combination input jacks that will accept either a twist-lock or 1/4" plug. These two input jacks are wired in parallel to provide a convenient way to daisy chain multiple speakers to a single amplifier channel. -
Page 8: La4Pm
LA4PM LA4PM LINE ARRAY LA4PM The LA4PM is an unpowered permanent mount Line Array speaker designed for 70 volt systems. It features an internal 100 watt, 70 volt autoformer and a screw terminal block on the back panel for selecting the proper wattage tap. Simply connect the common (-) line from the amplifier to the screw terminal labeled “COM”. -
Page 9: Connection Setup
CONNECTION SETUP CONNECTION SETUP G-440 XOVER MIXER... -
Page 10: Specifications
SPECIFICATIONS SPECIFICATIONS M8 Suspension Points (CR12 & CR15 only) The Galaxy Audio Core Speaker Cabinets ship with (20) M8 bolts installed into the suspension points. Install M8 threaded “Forged Shoulder Eye Bolts” when using the suspension points. (Galaxy part# CRM8) Only remove M8 bolts that will have suspension bolts installed to prevent air leaks in the cabinet. - Page 11 SPECIFICATIONS SPECIFICATIONS CORE 12 (CR12) Frequency Response: 62 Hz~18KHz Power handling capacity: 400W Sensitivity: 92dB 1w 1m @ 1kHz Max SPL: 118dB @ 1kHz Speaker compliment: 12" Woofer, 1" Compression Driver w/ constant directivity asymmetrical horn. Nominal impedance: 8 Ohm Input Connection: 2 x Twist-lock Jacks, 1 x barrier strip Enclosure Materials: 15mm MDF, Formed Metal mesh grille Color: Black or White...
- Page 12 Please visit galaxyaudio.com for the latest updates http://www.galaxyaudio.com/warranty.php www.galaxyaudio.com/warranty.php USER'S MANUAL 12, 15, 18 & LA4 1-800-369-7768 www.galaxyaudio.com Please visit galaxyaudio.com for the latest updates Specifications in this manual are subject to change without notice. © Copyright 2012 Galaxy Audio Inc. Printed in China...
