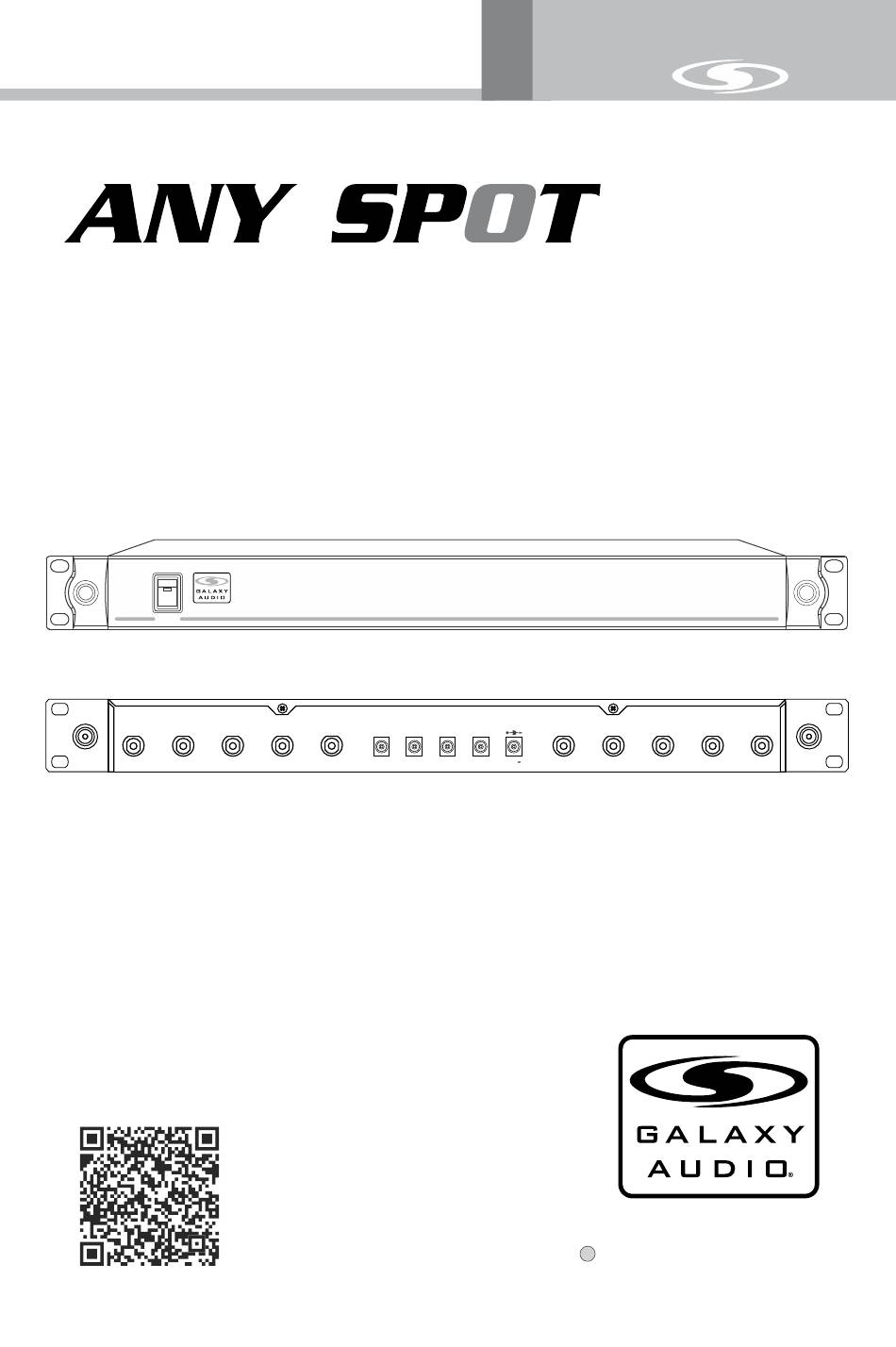

ANT-DISTDC
USER'S GUIDE
WIRELESS SYSTEMS
Antenna Distribution System for
Wireless Microphone Receivers
®
POWER
ANTENNA-B
ANT-1
www.galaxyaudio.com/products/ant-distdc
ANY SP T
O
®
OUTPUT1
ANT-2
ANT-3
ANT-4
600mA
DC IN
OUTPUT2
OUTPUT3
OUTPUT4
12~18
ANT-5
600mA
600mA
600mA
3000mA
MAKERS OF THE ORIGINAL
HOT SPOT PERSONAL MONITOR
®
ANT-DISTDC
UHF ANTENNA DISTRIBUTOR
ANT-6
ANT-7
ANT-8
ANTENNA-A
Advertisement
Table of Contents
Related Manuals for Galaxy Audio Any Spot ANT-DISTDC
Summary of Contents for Galaxy Audio Any Spot ANT-DISTDC
- Page 1 ANT-DISTDC USER'S GUIDE ® WIRELESS SYSTEMS Antenna Distribution System for Wireless Microphone Receivers ANT-DISTDC ANY SP T ® ® UHF ANTENNA DISTRIBUTOR POWER DC IN OUTPUT1 OUTPUT2 OUTPUT3 OUTPUT4 12~18 ANTENNA-B ANT-1 ANT-2 ANT-3 ANT-4 ANT-5 ANT-6 ANT-7 ANT-8 ANTENNA-A 600mA 600mA 600mA 600mA 3000mA...
- Page 2 System Components System Components System Components System Components System Description ANT-DISTDC utilizes a newly developed low noise and amplifier circuit design. With 8-channels of low loss divider circuitry, four wireless mic receivers can be used with two antennas. Four DC power outputs are provided to eliminate the need of individual power supplies for the receivers.
- Page 3 ANT-DISTDC Antenna Distribution Amplifier ANT-DISTDC Antenna Distribution Amplifier Front Panel ANT-DISTDC ANY SPOT ® ® UHF ANTENNA DISTRIBUTOR POWER Back Panel DC IN OUTPUT1 OUTPUT2 OUTPUT3 OUTPUT4 12~18 ANTENNA-B ANT-1 ANT-2 ANT-3 ANT-4 ANT-5 ANT-6 ANT-7 ANT-8 ANTENNA-A 600mA 600mA 600mA 600mA 3000mA 1.
- Page 4 Dual System Installation Dual System Installation 3. Power Supply 1. BNC Cables 2. Power Supply Cable 5. BNC Connectors 4. BNC Antennas (CN-BNCPM) (From wireless system) ANT-DISTDC ANY SP T ® ® UHF ANTENNA DISTRIBUTOR POWER AUTO AUTO DATA SYNC DATA SYNC POWER POWER Note: Use only with wireless microphone receivers.
- Page 5 Quad System Installation Quad System Installation 3. Power Supply 1. BNC Cables 2. Power Supply Cable ANT-DISTDC ANY SP T ® ® UHF ANTENNA DISTRIBUTOR POWER AUTO AUTO DATA SYNC DATA SYNC POWER POWER AUTO AUTO DATA SYNC DATA SYNC POWER POWER Extended range setup using optional directional paddle antennas and amplifiers.
- Page 6 Accessories and Replacement Parts Accessories and Replacement Parts Many of these parts and accessories may be found and purchased from the Galaxy Audio website in either the Galaxy Store ( https://www.galaxyaudio.com/parts-and-accessories or in the accessories tab of each products web page.
-
Page 7: Specifications
SPECIFICATIONS SPECIFICATIONS ANT-DISTDC Antenna Distribution Amplifier Input Impedance: 50 ohm Output Impedance: 50 ohm Antenna Input Socket: BNC Antenna Output Socket: BNC Gain: 3dB Frequency Bandwidth: 200mHz Power Supply: DC 12-18V 3000mA Weight: 4.4 lbs. (2kg) Dimension: 1.8" x 16.14" x 6.3" (45mm x 410mm x 160mm) FCC Consumer Alert for Wireless Microphones (U.S.) Most users do not need a license to operate this wireless microphone system. - Page 8 Information can be viewed online at https://www.galaxyaudio.com/support/warranty www.galaxyaudio.com/support/warranty ANT-DISTDC USER'S GUIDE Specifications in this manual are subject to change without notice. For the most up to date manual and information visit www.galaxyaudio.com. 1-800-369-7768 www.galaxyaudio.com © Copyright Galaxy Audio 2018 V20180914 Printed in China...
