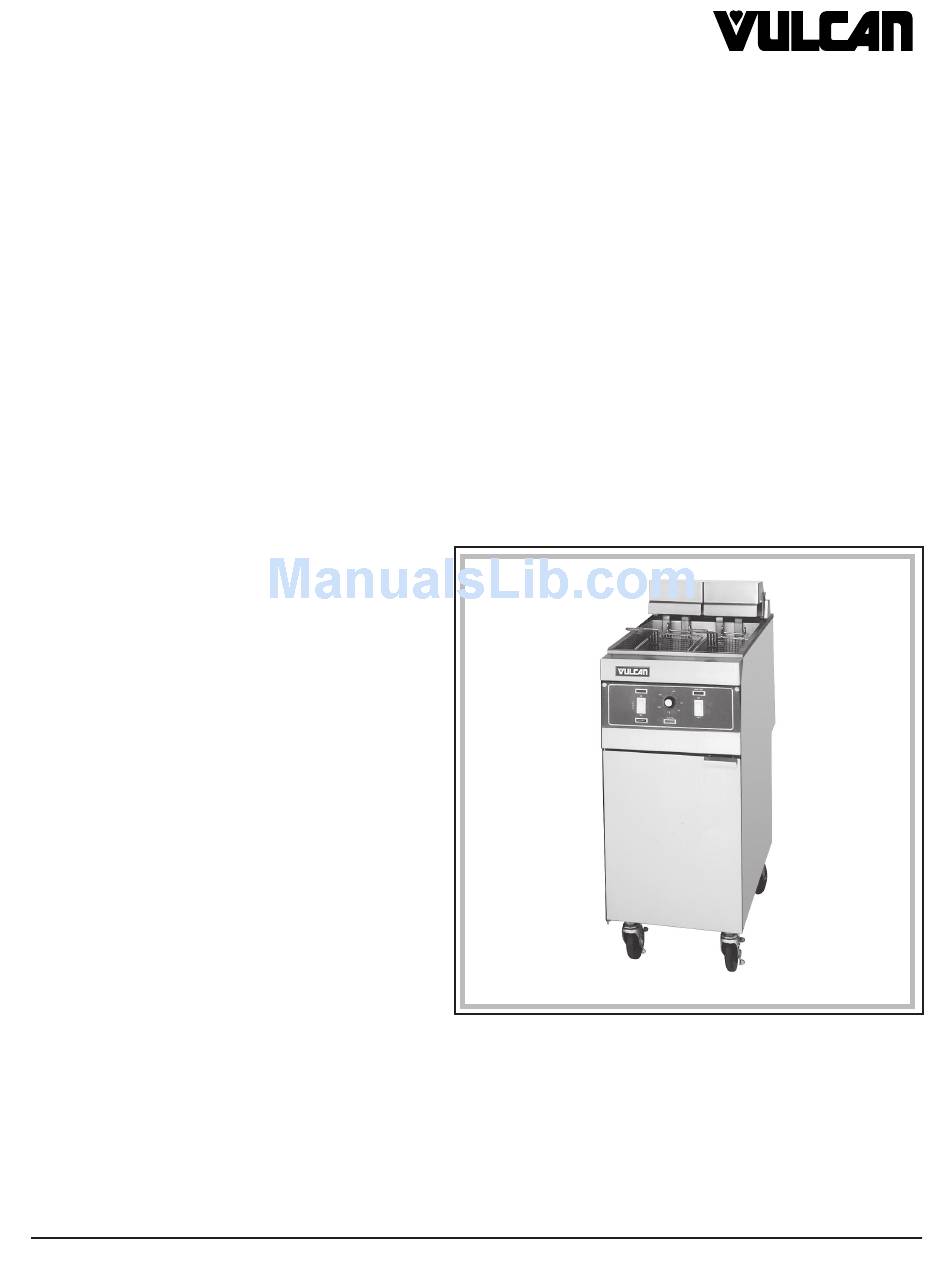

ERD/ERC SERIES ELECTRIC FRYERS
MODEL
ERD40
ML-114614
ERD50
ML-114615
ERD225
ML-114616
ERD85
ML-114617
ERC40
ML-114618
ERC50
ML-114619
ERC225
ML-114620
ERC85
ML-114621
ERO15
ML-114622
ERO21
ML-114623
V U L C A N - H A R T
C O M P A N Y ,
FORM 30981 Rev. C (Apr. 2003)
OPERATION MANUAL
P . O .
B O X
6 9 6 ,
L O U I S V I L L E ,
INSTALLATION &
ERD40
K Y
4 0 2 0 1 - 0 6 9 6 , TEL. (502) 7 7 8 - 2 7 9 1
Advertisement
Table of Contents
Related Manuals for Vulcan-Hart ERD40
Summary of Contents for Vulcan-Hart ERD40
- Page 1 INSTALLATION & OPERATION MANUAL ERD/ERC SERIES ELECTRIC FRYERS MODEL ERD40 ML-114614 ERD50 ML-114615 ERD225 ML-114616 ERD85 ML-114617 ERC40 ML-114618 ERC50 ML-114619 ERC225 ML-114620 ERC85 ML-114621 ERO15 ML-114622 ERO21 ML-114623 ERD40 V U L C A N - H A R T C O M P A N Y , P .
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENERAL ................3 INSTALLATION . -
Page 3: General
SAVE THESE INSTRUCTIONS FOR FUTURE USE GENERAL Vulcan ERD/ERC Series Electric Fryers are available in 3 sizes with an array of features and options for a range of commercial fryer applications. While the overall tank width on the ER40 and ER50 are the same, the ER50 has a deeper tank area than the ER40. - Page 4 ER Series Fryer — Features Fat Melt Basket(s) Model Thermostat Basket Lift(s) Cycle Twin Single ERD 225 Std. ERD40, ERD50 Std. Solid State Opt. Std. Opt. ERD85 Std. Opt. Opt. ERC40, ERC50 Std. Opt. Std. Computer Opt. ERC85 Std. Opt.
- Page 5 Field Installable Accessories Factory Installed Only Casters Fat Melt Twin Baskets Basket Lift Single Baskets S/S Tank Tri Baskets (ER85 only) S/S Sides Heat Lamp Battery Configuration S/S Vat Cover Battery Interplumbing Batter Tray Tank Skimmer Tank Scoop ERO SERIES FRYMATE (Dump Station) Model ERO Frymate Dump Station can be configured in batteries with fryers in either 15 "...
-
Page 6: Installation
Before installing the fryer, verify that the electrical service agrees with the specifications on the fryer data plate which is located on the inside of the door panel. If the supply and equipment requirements do not agree, do not proceed with the installation. Contact your dealer or Vulcan-Hart Company immediately. -
Page 7: Leveling
S T R A I N R E L I E F F I T T I N G T H I S S I D E O N L Y . ( S t r a i n r e l i e f f i t t i n g s u p p l i e d b y V u l c a n - H a r t . -
Page 8: Operation
OPERATION WARNING: HOT OIL AND PARTS CAN CAUSE BURNS. USE CARE WHEN OPERATING, CLEANING AND SERVICING THE FRYER. WARNING: SPILLING HOT FRYING COMPOUND CAN CAUSE SEVERE BURNS. DO NOT MOVE FRYER WITHOUT DRAINING ALL FRYING COMPOUND FROM THE TANK. BEFORE FIRST USE Clean the Fryer and Heating Elements Do not dry fire elements. -
Page 9: Adding Solid Shortening
ADDING SOLID SHORTENING If replacing shortening, place the block of shortening in the room with the fryer for 1 to 2 hours before using. This will soften the shortening and make it easier to divide. CAUTION: Failure to remove crumb screens prior to addition of fresh shortening may cause fryer side walls to overheat, allowing shortening to reach flashpoint. -
Page 10: Controls - Erd Series
CONTROLS — MODEL ERD (Fig. 3) HIGH LIMIT MELT HEATING TROUBLE ERD FRYER 15 MIN. TIMER 15 MIN. TIMER PUSH TO PUSH TO TIME TIME BASKET LIFT CONTROL BASKET LIFT CONTROL ERD FRYER TIMED BASKETLIFT PL-52234 OPTION Fig. 3 THERMOSTAT —... -
Page 11: Melting Solid Shortening (Model Erd)
If the high limit device has shut the fryer system off, push the red reset button on the back of the element head(s) before turning the fryer back on. If this situation persists, shut fryer down and contact a Vulcan-Hart authorized service agency. — 11 —... -
Page 12: Frying (All Models)
Product of Product Models (1 Basket) (2 Baskets) (3 Baskets) ERD225 / .7 3 / 1.3 ERD40, ERC40 / .7 3 / 1.3 ERD50, ERC50 5 / 2.3 ERD85, ERC85 / 1.6 7 / 3.1 / 4.8 Carefully lower basket into oil. - Page 13 Filter-Ready Fryers Only Follow instructions in the MOBILE FILTER OPERATING MANUAL shipped with the mobile filter. If the manual is not found, contact your local Vulcan Service Office to obtain the manual before operating the mobile filter. — 13 —...
-
Page 14: Shortening Life (All Models)
Battery Interplumbing (Optional) A battery of fryers equipped with optional interplumbing connects the fry tanks to a common drain. Each tank has an individual drain valve; these should only be opened one at a time. Always be sure you have adequate container capacity before opening the drain; monitor draining process. -
Page 15: Controls - Erc Series
CONTROLS — ERC Series (Fig. 5) FRENCH FR I ES POWER START START STOP STOP OIL TEMP IDLE MANUAL ENTER EXIT PL-52208 Fig. 5 DISPLAY — A twelve character display provides information during operation. HEAT — HEAT indicator (in LED display) is lit when burners are on, not lit when off. -
Page 16: Power-Up
POWER-UP After being turned on, the control executes a self-check routine. See ERROR MESSAGES, page 23. After going through the self-check routine, the control enters either Fat Melt or Heating mode. Fat Melt Mode After power-up, if the oil temperature is below 135°F (57°C) and the FAT MELT mode is enabled, the fryer enters MELT mode. -
Page 17: Cooking
COOKING DISPLAY 1. Press a Product Pad [1 - 8]... FRENCH FRIES 2. Load basket. Press left or right START/STOP Pad and lower basket. Timer counts down...* XX:XX 3. When finished, buzzer sounds...* DONE 4. Press left or right START/STOP Pad to stop buzzer. Display indicates left or right basket. -
Page 18: During Slack Periods
DURING SLACK PERIODS If the fryer is not going to be used for an extended period, oil life is enhanced by pressing IDLE if SETBACK is enabled. With the setback feature enabled, after 30 minutes of non-use, the fryer automatically assumes Idle mode where it maintains 275°F (135°C) temperature. -
Page 19: Definitions - Edit Product
DEFINITIONS — EDIT PRODUCT PRODUCT KEY = The Product Pad, (1 - 8) PRODUCT NAME = any 12 alpha characters. COOK TIME = Minutes: Seconds of cooking duration. Controls basket lifts and buzzer. Elastic time compensates for under- or over-temperature. COOK TEMP = fryer burner thermostat control. -
Page 20: Edit Product
SEL SETBACK EDIT PRODUCT ON sets the IDLE temperature at 275°F (135°C); To Add or Change a Product Cook Cycle… fryer will automatically go into Idle after 30 minutes. DISPLAY INSTRUCTION OFF sets the IDLE temperature at 350°F (177°C) and will not automatically enter Idle after 30 minutes. READY Press 2 &... -
Page 21: Boil Out
BOIL OUT SELECT MELT BOIL OUT heats water in the vat for cleaning toggles MELT DISABLE or MELT ENABLE. ▲ ▼ purposes for 15 minutes. If operating at a higher ENABLE is required when using solid shortening to altitude, the boiling temperature may be lowered. automatically MELT if below 135°F (57°C). -
Page 22: Oil Shutdown
OIL SHUTDOWN OIL TRM/CNTR The oil service has two modes: DISPLAY INSTRUCTION READY Press 2 & 3 simultaneously. Shutdown = ON -FUNCTIONS- Press ▼ Counter with Shutdown: The operator sets the EDIT PRODUCT Press ▼ number of product cook cycles before oil service SEL SETBACK Press action is taken by the controller. -
Page 23: Error Messages
TEMP TOO HI indicates the fryer has operated at a higher than normal temperature and has shut down and become inoperable. CALL SERVICE indicates that the fryer has a problem that demands the attention of your local Vulcan Service Office. The fryer will shut down and become inoperable. -
Page 24: Form 30981 Rev. C (Apr
To obtain service and parts information concerning this fryer, contact the Vulcan-Hart Service Agency in your area (refer to listing supplied with the fryer), or Vulcan-Hart Company Service Department at the address or phone number shown on the front cover of this manual.
