OUTDOOR UNIT
S (Heat Pump) series
Cooling or Heating
PUMY-P VHMB(-BS)
PUMY-P YHMB(-BS)
Building Comfort solutions in the home or small office
The CITY MULTI S-Series for homes and small offices offers all the features and benefits of our large commercial CITY MULTI
S-Series. The compact outdoor unit utilizes R410A refrigerant and an INVERTER-driven compressor to use energy effectively.
A maximum of 12 CITY MULTI indoor units can be connected with up to 130% connected capacity, depending on diversity.

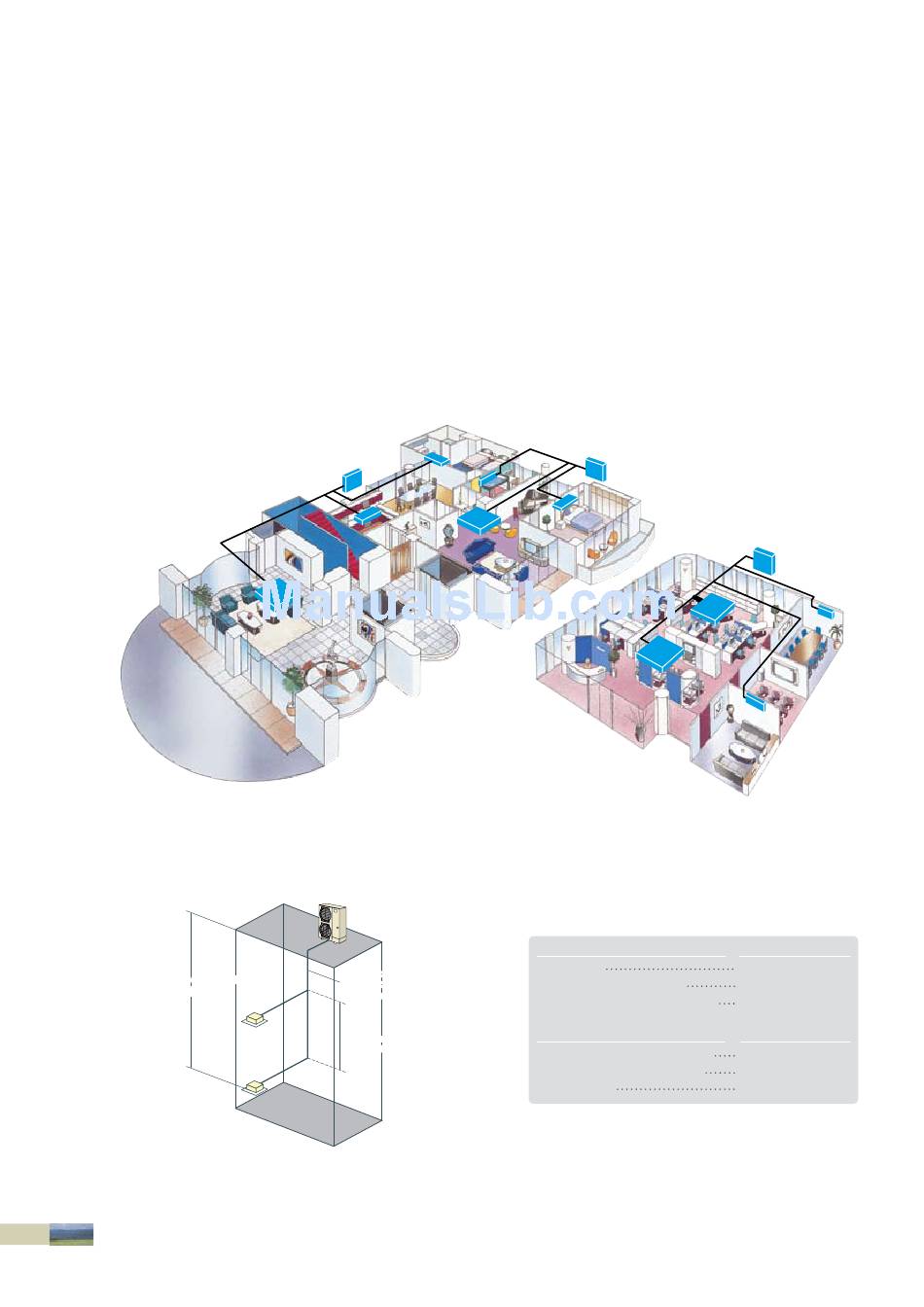

Large Residences
[4-6HP]
Top-bottom differential
30m [98ft]
*1
When the outdoor unit is installed below the indoor unit, top-bottom differential is 20m [65ft].
*1
Outdoor unit
Page95
Outdoor unit
Furthest piping length
80m [262ft]
Between indoor units
top-bottom differential
12m [39ft]
Indoor unit
Small Offices
Refrigerant Piping Lengths
Total length
Maximum allowable length
Farthest indoor from first branch
Vertical differentials between units
Indoor/outdoor (outdoor higher)
Indoor/outdoor (outdoor lower)
Indoor/indoor
Maximum meters [Feet]
120[393 ]
80[262 ]
30 [98]
Maximum meters [Feet]
30 [98]
20 [65]
12 [39]
