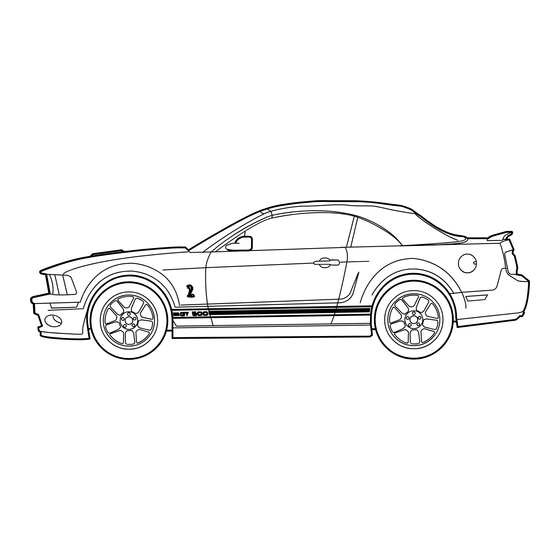

Ford 05+ Mustang 2008 Supplement Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2007 Ford Motor Company
2008 05+ Mustang (197)
Supplement
USA (fus)

Table of Contents

2
4
8
8
8
9
9
10
11
12
16
16
24
25
29
30
34
35
36
40
1

Advertisement

Table of Contents
loading

Related Manuals for Ford 05+ Mustang 2008

Summary of Contents for Ford 05+ Mustang 2008

  • Page 1: Table Of Contents

    Ford Motor Company. Ford may change the contents without notice and without incurring obligation. Copyright © 2007 Ford Motor Company...

  • Page 2: Introduction

    WELCOME Congratulations on your decision to purchase or lease the latest from Ford SVT — the Shelby GT500. If you’ve owned or leased an SVT product in the past, we’re glad you’re back. If this is your first SVT vehicle, welcome to the SVT family! We are confident that our dedication to quality, craftsmanship and customer service will ensure many miles of exhilarating, safe and comfortable driving in your new Shelby GT500.
  • Page 3 Introduction SVT HISTORY The Ford Special Vehicle Team (SVT) was established in 1991 to “Polish the Ford Oval” by creating low-volume, factory-produced vehicles designed for those select few whose idea of driving is a high-powered, passionate experience — not just a means of getting from point A to point B.

  • Page 4: Shelby Gt500 Unique Features

    Shelby GT500 unique features UNIQUE FEATURES • 5.4L DOHC 32V Supercharged V-8 engine with intercooler — 500 horsepower @ 6,000 rpm, 480 lb-ft torque @ 4,500 rpm SAE certified • Engine oil cooler • TR-6060 6 speed manual transmission • Dual disc Cera-Metallic clutch •...
  • Page 5 Shelby GT500 unique features • Unique Shelby GT500 seats • Leather-wrapped sport steering wheel, shift boot and parking brake handle • I/P appliques, door panels, and scuff plates SHELBY GT500 INSTRUMENT CLUSTER Upshift Illuminates when it is best to shift to the next highest manual transmission gear to maximize fuel economy.
  • Page 6 Shelby GT500 unique features SHIFTLAMP and SHIFTTONE can be used separately, together, or turned off completely. To use the Performance Shift Indicator feature, first bring the vehicle to a complete stop then use the Message Center controls as follows: 1. Press SETUP repeatedly until PRESS RESET TO SET SHIFTPOINT appears in the display.
  • Page 7 Shelby GT500 unique features Message Center The following are possible messages you may see in your Shelby GT500 Message Center: CHECK TRACTION CONTROL™: Displayed when the Traction Control™ system is not operating properly. If this message is displayed on the message center, the Traction Control™ system will be partially operable.

  • Page 8: Driving Your Shelby Gt500

    Driving your Shelby GT500 ALTERNATE CALIBRATION Your Shelby GT500 Power Train Control Module (PCM) strategy contains a feature to limit supercharger boost pressure and engine speed to 4000 RPM for the first five consecutive miles of vehicle operation or 50 engine start / warm up cycles.

  • Page 9: Driving Through Water

    DRIVING YOUR SHELBY GT500 THROUGH WATER The Ford Shelby GT500 has aerodynamic devices attached to the underbody designed to help control airflow for superior performance. Therefore, the driver must be especially careful to avoid driving through deep or standing water.

  • Page 10: Washing Your Vehicle

    Driving your Shelby GT500 WASHING YOUR SHELBY GT500 Do not drive your vehicle through an automated, commercial car wash due to the vehicle’s low ground clearance, tire width and track. Wash your vehicle by hand, with a commercial wand, or by using a touchless commercial wash with no mechanical tracks on the floor.

  • Page 11: Chassis

    Chassis SUSPENSION • 8.8 in. solid rear axle with limited slip differential (3.31:1 ratio) Coupe stabilizer bars: • 34 x 5.8 mm tubular front stabilizer bar • 24 mm solid rear bar • Tokico twin tube shocks and struts Convertible stabilizer bars: •...

  • Page 12: Lug Nut Torque

    20 * Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners. When a wheel is installed, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the wheel or the surface of the wheel hub, brake drum or brake disc that contacts the wheel.
  • Page 13 • The Shelby GT500 original equipment tires are optimized for performance in both wet and dry conditions. Ford does not recommend using the original equipment tires when temperatures are below 40°F (5°C) or in snow/ice conditions.
  • Page 14 Chassis • Inspect your tires for damage on a regular basis. If a tire is damaged, replace it immediately. • Proper suspension alignment is critical for maximum performance and optimal tire wear. If you notice uneven tire wear, have your alignment checked.
  • Page 15 Chassis • Tire rotation (front tires at the top of the diagram) Sometimes irregular tire wear can be corrected by rotating the tires. Note: If your tires show uneven wear, ask an authorized dealer to check for and correct any wheel misalignment, tire imbalance or mechanical problem involved before tire rotation.

  • Page 16: Roadside Emergencies

    Roadside Emergencies TEMPORARY MOBILITY KIT Your vehicle is equipped with a temporary mobility kit (located in the spare tire well in the trunk). The temporary mobility kit consists of an air compressor to reinflate the tire and a sealing compound that will effectively seal most punctures caused by nails or similar objects.
  • Page 17 Roadside Emergencies • Do not drive farther than 120 miles (193 km). Drive only to the closest authorized dealer or tire dealer. • Drive carefully and avoid abrupt steering maneuvers. • Periodically monitor tire inflation pressure in the affected tire; if the tire is losing pressure, have the vehicle towed.
  • Page 18 Roadside Emergencies What to do when a tire is punctured A tire puncture within the tire’s tread area can be repaired in two stages with the temporary mobility kit: • In the first stage, the tire will be reinflated with a sealing compound and air.
  • Page 19 Roadside Emergencies 4. Loosen the safety latch (4) on the sealing compound container (5) and rotate the container until it is upright and clicks into place. 5. Peel the speed limit sticker (6) off the side of the container and affix it to the center of the instrument panel so it can be seen in plain view.
  • Page 20 Roadside Emergencies Note: When the sealing compound is first added into the tire, the air pressure gauge reading (7) on the compressor unit may increase up to 90 psi; this is normal and should be no reason for concern. The pressure will drop after about 30 seconds of operation.
  • Page 21 Roadside Emergencies Second stage: Checking tire pressure 1. Stop driving after approximately two miles. Then check the air pressure of the damaged tire as follows: • Ensure the compressor is turned off by pressing the “O” side of the orange button. •...
  • Page 22 Roadside Emergencies 2. If the air pressure reads 19 psi (131 kPa) or higher, switch the air compressor on by pressing the “I” side of the orange button and adjust the air pressure to the recommended pressure. This pressure can be found on a label affixed to the B-Pillar or the edge of the driver’s door.
  • Page 23 120 miles (200 km). After sealant use, the TPM (Tire Pressure Monitoring) sensor located inside the wheel, must be replaced by an authorized Ford dealer. Note: If you experience any unusual vibration, ride disturbance or noise while driving, reduce your speed until you can safely pull off to the side of the road to call for roadside assistance.

  • Page 24: Fuses And Relays

    Roadside Emergencies AUXILIARY RELAY BOX The relay box is located in the engine compartment by the power distribution box. Fuse/Relay Fuse amp Description location rating — Not used — Not used — Not used — Not used Intercooler Pump Fuel Pump #2 —...

  • Page 25: Wrecker Towing

    . When towing with a flatbed, 4x4 blocks must be used when loading/unloading your vehicle. Do not tow with a slingbelt. Ford Motor Company has not approved a slingbelt towing procedure. If the vehicle is towed by other means or incorrectly, vehicle damage may occur.
  • Page 26 Roadside Emergencies Transportation instructions When towing the vehicle, ensure that you use two mini J hooks and attach them to the crossmember oblong holes as shown. Other methods may damage the vehicle. 2008 05+ Mustang (197) Supplement USA (fus)
  • Page 27 Roadside Emergencies Wheel lift When towing the Shelby GT500, for front loading, the front tires must be 16 in. (41 cm) higher than the rear. For rear loading, the rear tires must be 14 in. (36 cm) higher than the front.
  • Page 28 Roadside Emergencies Flatbed 1. 36 in. (91 cm) 4x4 loading block 2. 18 in. (45.72 cm) 4x4 loading block 3. 11.5° maximum 2008 05+ Mustang (197) Supplement USA (fus)

  • Page 29: Maintenance And Specifications

    Maintenance and Specifications 5.4L DOHC SUPERCHARGED V–8 ENGINE 1. Battery 2. Supercharger 3. Engine oil dipstick 4. Brake fluid reservoir 5. Air Filter Assembly 6. Power Steering Fluid Reservoir 7. Intercooler coolant reservoir 8. Engine coolant reservoir 9. Engine oil filler cap 10.

  • Page 30: Engine Oil

    ENGINE OIL RECOMMENDATION Use Motorcraft SAE 5W-50 full synthetic or an equivalent SAE 5W-50 full synthetic oil meeting Ford specification WSS-M2C931-B. Do not use supplemental engine oil additives, cleaners or other engine treatments. They are unnecessary and could lead to engine damage that is not covered by Ford warranty.
  • Page 31 Maintenance and Specifications When the engine is cold, check the level of the engine coolant in the reservoir. COLD FILL RANGE • The engine coolant should be at the “cold fill range” as listed on the engine coolant reservoir. • Refer to the scheduled maintenance guide for service interval schedules.
  • Page 32 The cooling system in your vehicle is filled with either green-colored Motorcraft Premium Engine Coolant meeting Ford specification ESE-M97B44–A or yellow-colored Motorcraft Premium Gold Engine Coolant meeting Ford Specification WSS-M97B51-A1. To determine your vehicle’s coolant type (color), check your coolant reservoir. • Add Motorcraft Premium Engine Coolant (green-colored), VC-5-A (U.S., Mexico) or CXC-10 (Canada) or Motorcraft...
  • Page 33 Maintenance and Specifications • Do not mix with recycled coolant unless from a Ford-approved recycling process (see Use of Recycled Engine Coolant section). To reduce the risk of personal injury, make sure the engine is cool before unscrewing the coolant pressure relief cap. The cooling system is under pressure;...

  • Page 34: Air Filter(S)

    Maintenance and Specifications 10. If necessary, add a 50/50 mixture of engine coolant and distilled water to the engine coolant reservoir until the coolant level is at the “cold fill range” as listed on the reservoir. After any coolant has been added, check the coolant concentration (refer to Checking Engine Coolant).

  • Page 35: Part Numbers

    Maintenance and Specifications Changing the air filter element 1. Release the clamps that secure the air filter housing cover. 2. Carefully separate the two halves of the air filter housing. 3. Remove the air filter element from the air filter housing. 4.

  • Page 36: Refill Capacities

    The axle lubricant should be changed any time the rear axle has been submerged in water, using SAE 75W-140 High Performance rear axle lube, meeting Ford specification WSP-M2C102–A. 2008 05+ Mustang (197) Supplement...
  • Page 37 Fill 1/4-9/16 in (6-14 mm) below bottom of fill hold. Add 4 oz. (118 ml ) of Addictive Friction Modifier C3AZ-19B546-A or equivalent meeting Ford specification EST-M2C118-A for complete refill of Traction-Lok axles. The Tremec TR-6060 6–Speed manual transmission on your Shelby GT500 uses MERCON V automatic transmission fluid.
  • Page 38 Maintenance and Specifications Item Description Rear axle 8.8 in. solid rear axle with limited-slip differential 3.31:1 ratio 2 piece steel Driveshaft Tremec TR–6060 6-speed manual with integral Transmission clutch housing Gear ratios Gear Ratio 2.97 1.78 1.30 1.00 0.80 0.63 Reverse 2.90 ENGINE INFORMATION...
  • Page 39 Maintenance and Specifications Item Description Mass air sensor 130.5 x 80.5 mm (3.54 in) oval Throttle body Twin 60 mm (2.36 in) diameter bore-simultaneously open Forged aluminum Pistons Forged steel Crankshaft Connecting rods Forged steel I-beam Supercharger Eaton model 122, Roots-type Exhaust manifolds Cast high-silicon, molybdenum iron Exhaust system...

  • Page 40: A Word About Warranty Coverage

    Ford or Lincoln Mercury dealer nationwide. SVT does not recommend modifying or racing SVT vehicles, as they are designed and built to be driven as delivered from the factory. The Ford Motor Company Warranty Guide discusses vehicle usage and the...
