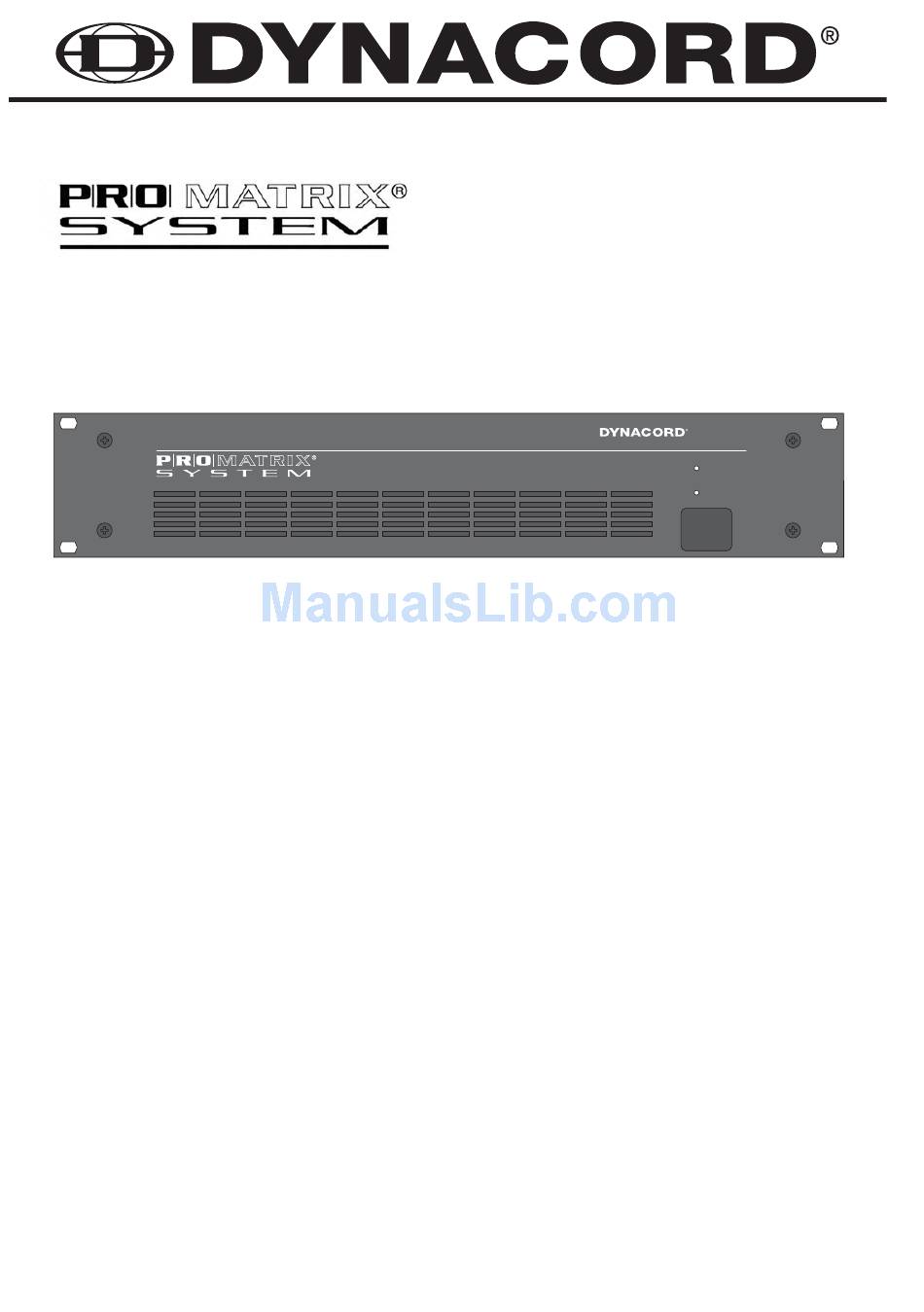

Owner's Manual
DPP 4004 / DPP 4012
24V POWER SUPPLY - RACK UNIT
Performance Features
•
19" rack size with 2 HU
•
primary sync switch-mode power supply; supports any 24 VDC modules in PA-systems
•
covered mains switch
•
status indicator LEDs (mains and battery)
•
smooth initial current inrush
•
short circuit protected
•
forced ventilation
•
mains voltage 104-127 / 207-253 VAC; internally switchable
•
rermote output for the remote switching of power amplifi ers
•
remote output for the remote switching of the battery supply of power amplifi ers
•
emergency power supply via battery input connector
•
switched mains output, max. 1 A
•
delayed control output for the release of alarm-gong and summing modules
•
direct output, 24 V max. 4 A / 12 A
•
switched 24 V output for the connection of modules
•
continuous emergency power supply via external battery module
•
output for the connection of modules that need persistent power supply (e. g. DPM 4000/4001);
max. 4 A / 12 A
•
output for power fail recognition
12A POWER SUPPLY & MANAGER
11
OWNER'S MANUAL
DPP 4012
BATTERY
MAINS
POWER
Advertisement
Table of Contents
Related Manuals for Dynacord DPP 4004
Summary of Contents for Dynacord DPP 4004
-
Page 1: Performance Features
OWNER‘S MANUAL DPP 4004 / DPP 4012 24V POWER SUPPLY - RACK UNIT DPP 4012 12A POWER SUPPLY & MANAGER BATTERY MAINS POWER Performance Features • 19“ rack size with 2 HU • primary sync switch-mode power supply; supports any 24 VDC modules in PA-systems •... -
Page 2: Table Of Contents
We are committed to facilitate our own electronic-waste-management-system, for the free of charge return of all EVI Audio GmbH products: Telex, Dynacord, Electro-Voice, Midas Consoles, KlarkTeknik and RTS. Arrangements are made with the dealer where you purchased the equipment from, for the returning of all unusable equipment at no cost, to the factory in Straubing, for environmental protective disposal. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The lightning fl ash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage“ within the product’s enclosure that may be of suffi cient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in... -

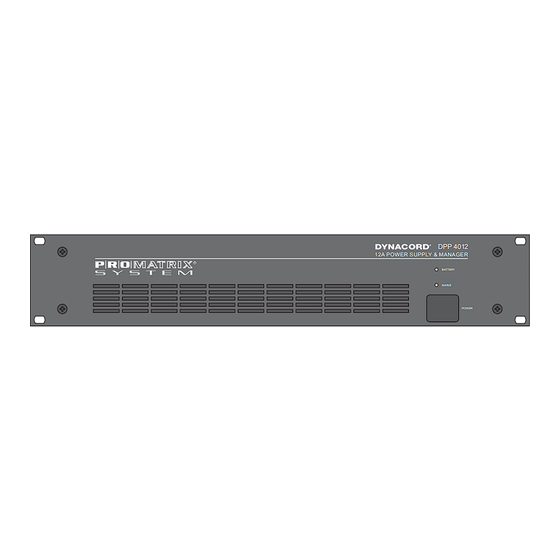

Page 4: Front View
DPP 4012 12A POWER SUPPLY & MANAGER BATTERY MAINS POWER covered mains switch mains LED-indicator (off, when the mains switch is not engaged) battery LED-indicator (off, when the mains switch is not engaged) mains input connector mains fuse (input connector) mains output connector mains fuse (output connector) ground-lift switch... -
Page 5: Utilization
The output voltage of the internal power supply is present at the DIRECT OUT (9) connector. With the DPP 4004 this connector’s maximum power handling capacity is 4 A; the DPP 4012 provides 12 A. The output offers internal short-circuit protection and it can be operated without load. It also serves to use the appliance as plain power supply –... - Page 6 The output MODULES OUT (14) is meant for the connection of devices (relay-fi elds, alarm-devices, voice reproduction, etc.) that can be switched off during a power outage – during which time the PA- system should operate in the stand-by mode. Switching off unnecessary devices during the occurrence of a power failure is preferable, otherwise the battery is unnecessarily strained.
-
Page 7: Switching The Mains Voltage
4. Mains Voltage Selection (only to be carried out by a qualifi ed service technician) After adjusting the mains voltage, operating the DPP 4004/4012 power supplies with 115 V is also possible. The adjustment has to be carried out before the operation: Remove the cover plate. -
Page 8: Remote Control - Connector
fi gure 1: fi gure 2: pin assignment of the remote control plug example for a remotely controlled application ON/OFF (TOGGLE) INPUT ON/OFF function of the supply output for the modules MODULE OUT through the pulse contact to the negative potential. Only functions when pin 11 carries an analogous supply voltage and when the internal jumper J502 is set to “open”;... -
Page 9: Specifi Cations
SPECIFICATIONS DPP4004 DPP4012 Mains power supply Operational voltage 230 VAC ±10 % 230 VAC ±10 % internally selectable through bridging 115 VAC ±10 % 115 VAC ±10 % Mains frequency range 50 … 60 Hz 50 … 60 Hz ≤ 20 VA ≤... - Page 10 CIRCUIT DIAGRAM...
- Page 11 Bosch Communications Systems Asia & Pacifi c Rim–Headquarter Asia Americas–Headquarter Americas Europe, Africa & Middle-East Telex Communications, Inc. Headquarter EAME Singapore: Telex Pte. Ltd. 12000 Portland Ave South, 3015A Ubi Road 1 EVI Audio GmbH Burnsville, MN 55337, USA Hirschberger Ring 45, D-94315, 05-10 Kampong Ubi Industrial Estade USA–Ph: 1-800-392-3497 Straubing, Germany...
