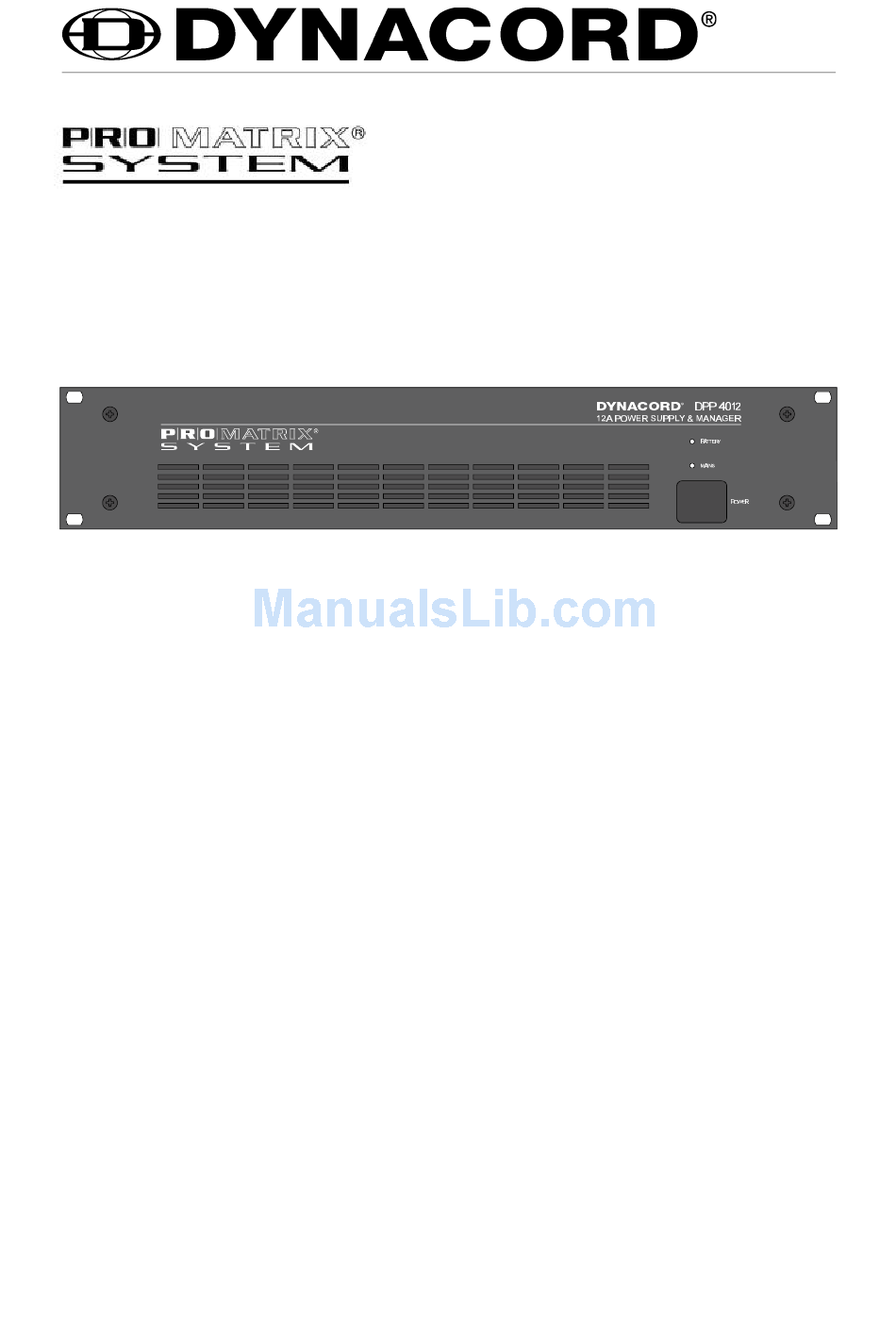

OWNER’S MANUAL DPP 4004 / DPP 4012 24V POWER SUPPLY - RACK UNIT Performance Features • 19" rack size with 2 HU • primary sync switch-mode power supply; supports any 24 VDC modules in PA-systems • covered mains switch • status indicator LEDs (mains and battery) •...
IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintance (servicing) instructions in the...
Page 4
DYNACORD PROMATRIX SYSTEM covered mains switch mains LED-indicator (off, when the mains switch is not engaged) battery LED-indicator (off, when the mains switch is not engaged) mains input connector mains fuse (input connector) mains output connector mains fuse (output connector)
The output voltage of the internal power supply is present at the DIRECT OUT (9) connector. With the DPP 4004 this connector’s maximum power handling capacity is 4 A; the DPP 4012 provides 12 A. The output offers internal short-circuit protection and it can be operated without load. It also serves to use the appliance as plain power supply –...
Page 6
DYNACORD PROMATRIX SYSTEM capacitive loads connected. This output is controlled by the inputs ON/OFF (TOGGLE) (pin 1 of the remote control connector) or ON/OFF (MODULES) (pin 2). If the ON/OFF (MODULES) input is connected to the ground potential, the MODULES OUT output is constantly activated; otherwise it is constantly deactivated.
Page 7
PROMATRIX SYSTEM 4. Mains Voltage Selection (only to be carried out by a qualified service technician) After adjusting the mains voltage, operating the DPP 4004/4012 power supplies with 115 V is also possible. The adjustment has to be carried out before the operation: Remove the cover plate.
DYNACORD PROMATRIX SYSTEM 5. Remote Control Connector figure 1: figure 2: pin assignment of the remote control plug example for a remotely controlled application 1 ON/OFF (TOGGLE) INPUT ON/OFF function of the supply output for the modules MODULE OUT through the pulse contact to the negative potential. Only functions when pin 11 carries an analogous supply voltage and when the internal jumper J502 is set to “open”;...
